MM30-144BA-B1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MM30-144BA-B1

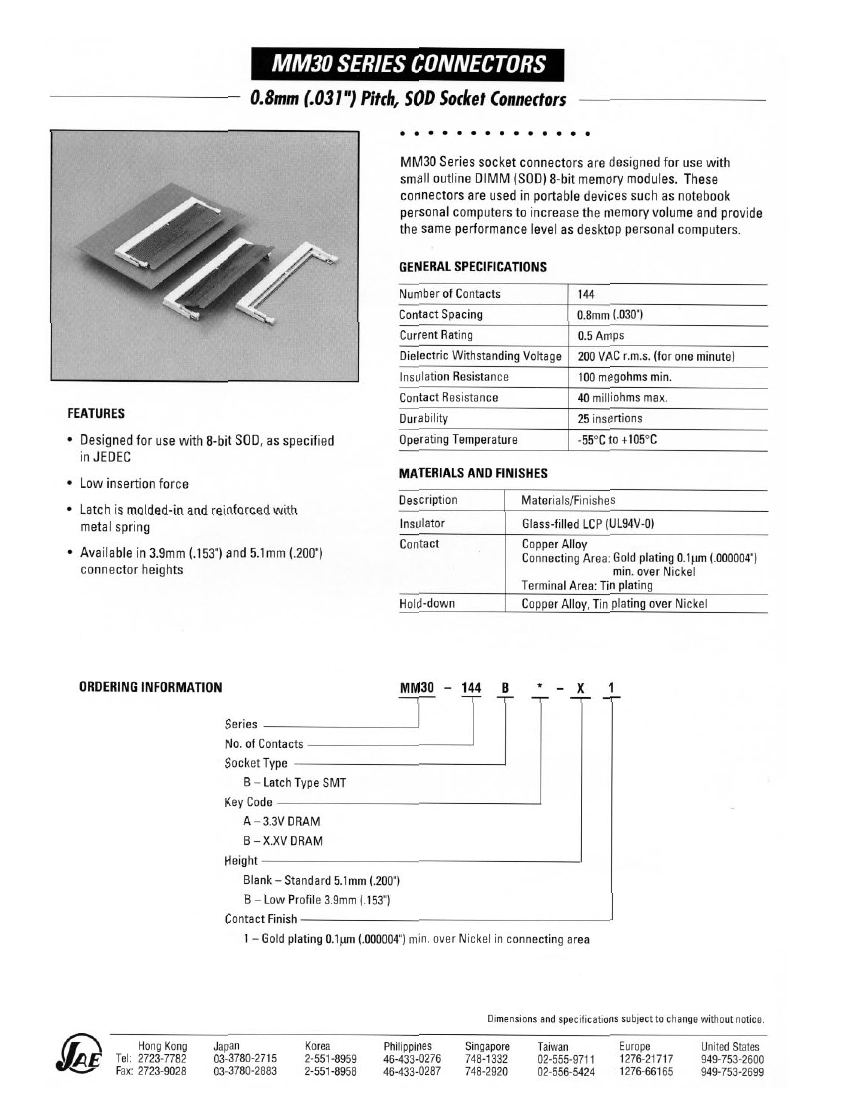

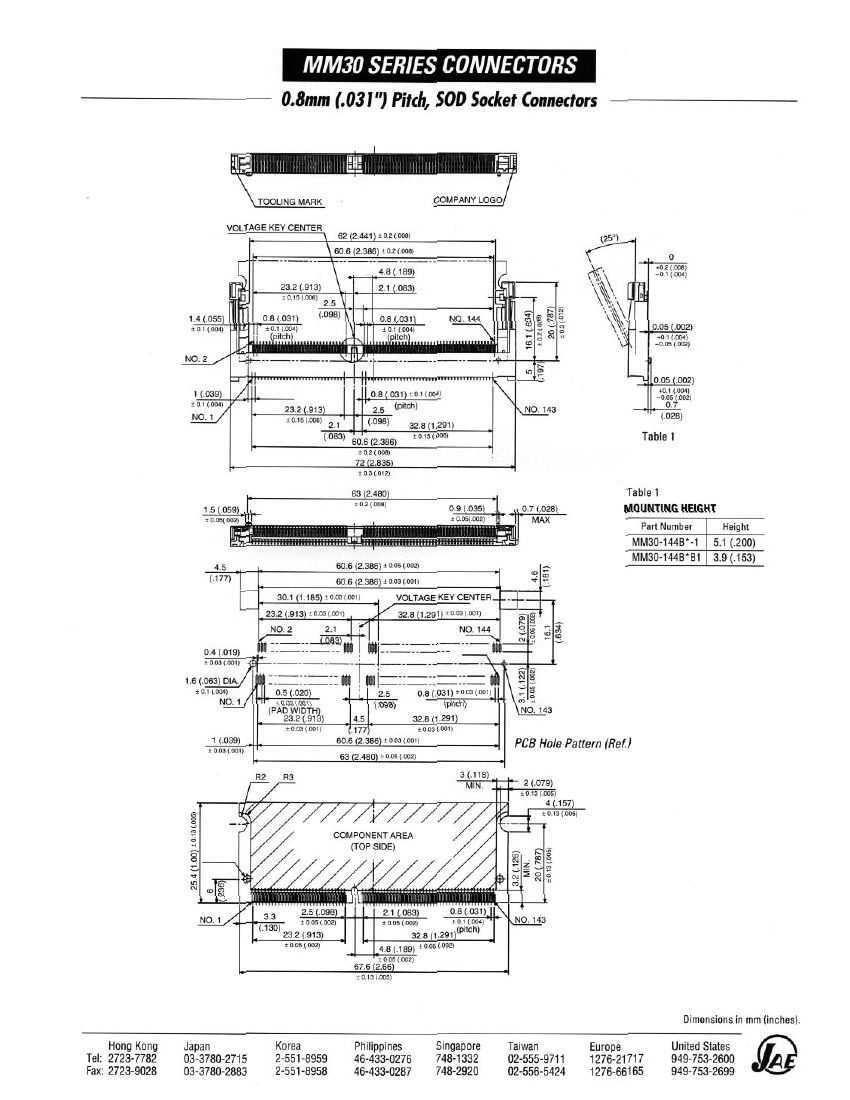

MM30-144BA-B1: DescriptionCard Edge Connector, 144 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size331KB，2 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

MM30-144BA-B1 Overview

Card Edge Connector, 144 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle

MM30-144BA-B1 Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Other features	3.9MM HEIGHT
Board mount options	HOLE .055-.063
subject depth	0.984 inch
body length	2.835 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact material	COPPER ALLOY
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
Durability	25 Cycles
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	MM30
Plug contact pitch	0.031 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	4u inch
polarization key	POLARIZED KEY
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	144
Base Number Matches	1

Preview

Download Datasheet

View All

MM30-144BA-B1 Related Products

	MM30-144BA-B1	MM30-144BB-B1	MM30-144BB-1	MM30-144BA-1
Description	Card Edge Connector, 144 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle	Card Edge Connector, 144 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle	Card Edge Connector, 144 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle	Card Edge Connector, 144 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	3.9MM HEIGHT	3.9MM HEIGHT	5.1MM HEIGHT	5.1MM HEIGHT
Board mount options	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063
subject depth	0.984 inch	0.984 inch	0.984 inch	0.984 inch
body length	2.835 inch	2.835 inch	2.835 inch	2.835 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN	TIN	TIN	TIN
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V	200VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles
maximum insertion force	LIF N	LIF N	LIF N	LIF N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	MM30	MM30	MM30	MM30
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation option 1	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	4u inch	4u inch	4u inch	4u inch
polarization key	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	144	144	144	144
Base Number Matches	1	1	1	1
