31266108 Overview

Board Connector,

31266108 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

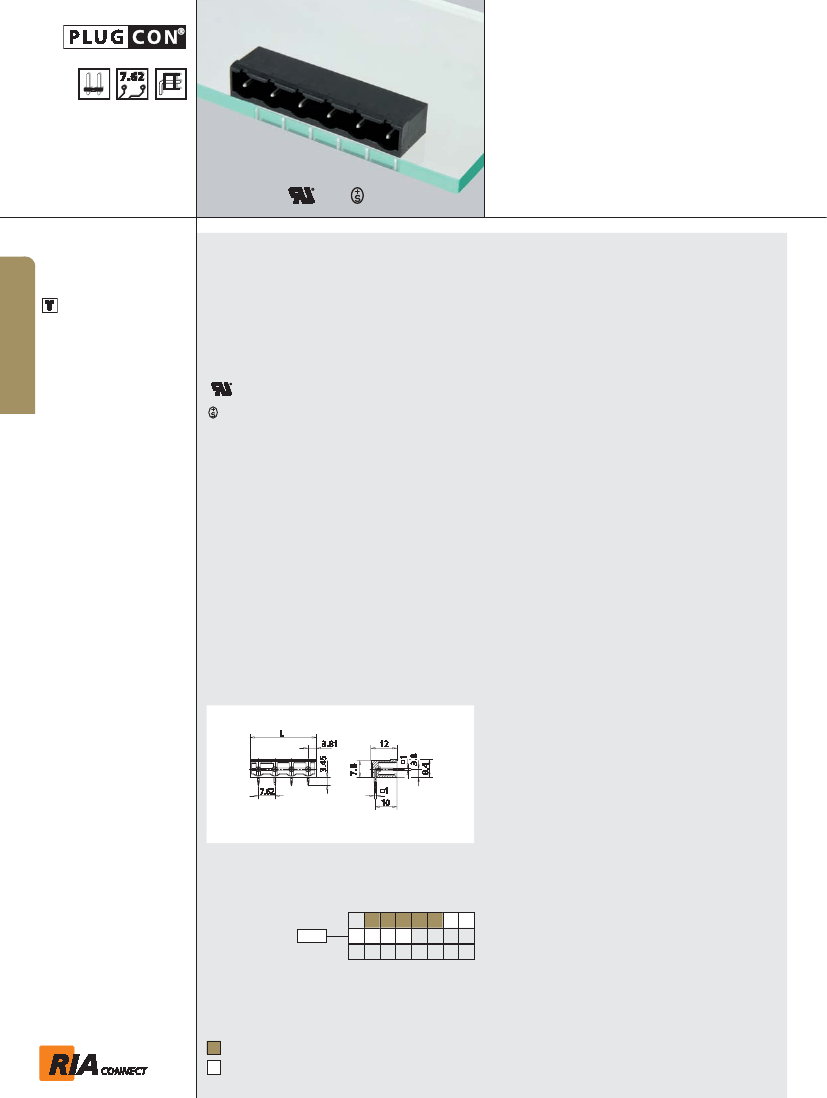

154

Terminal blocks

A

Type 266

Header, centerline 7.62 mm / 0.300 inches, horizontal

mounting, squarecontact pins 1 mm / 0.039 inches,

closed ends, codable

to

Type 266

Type 262

page 102

Accessories

for

Type 266

Coding set

700024

Technical Data

page 206

V/A

300 / 15

500 V / 6 kV / 10 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 6.6 mm

Insulating material class

CTI 600

Overvoltage category

III

II

Pollution degree

3

2

Rated voltage

500

1250 1250

Rated test voltage

4

8

6

Protection category according

to IEC 529

IP00

Solder pin dimension

1.0 x 1.0 mm

Recommended pc board hole

dia.

Ø 1.5 mm

Solder pin length

3.45 mm

Pole size

2 - 12

Color

black

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 7.62 mm / 0.300 inches

Part numbers (P/N)

Type 266

centerline 7.62 mm / 0.300 inches

(information: page 110)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12

P/N

312661

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
