31319106 Overview

Board Connector,

31319106 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Options	GENERAL PURPOSE
Base Number Matches	1

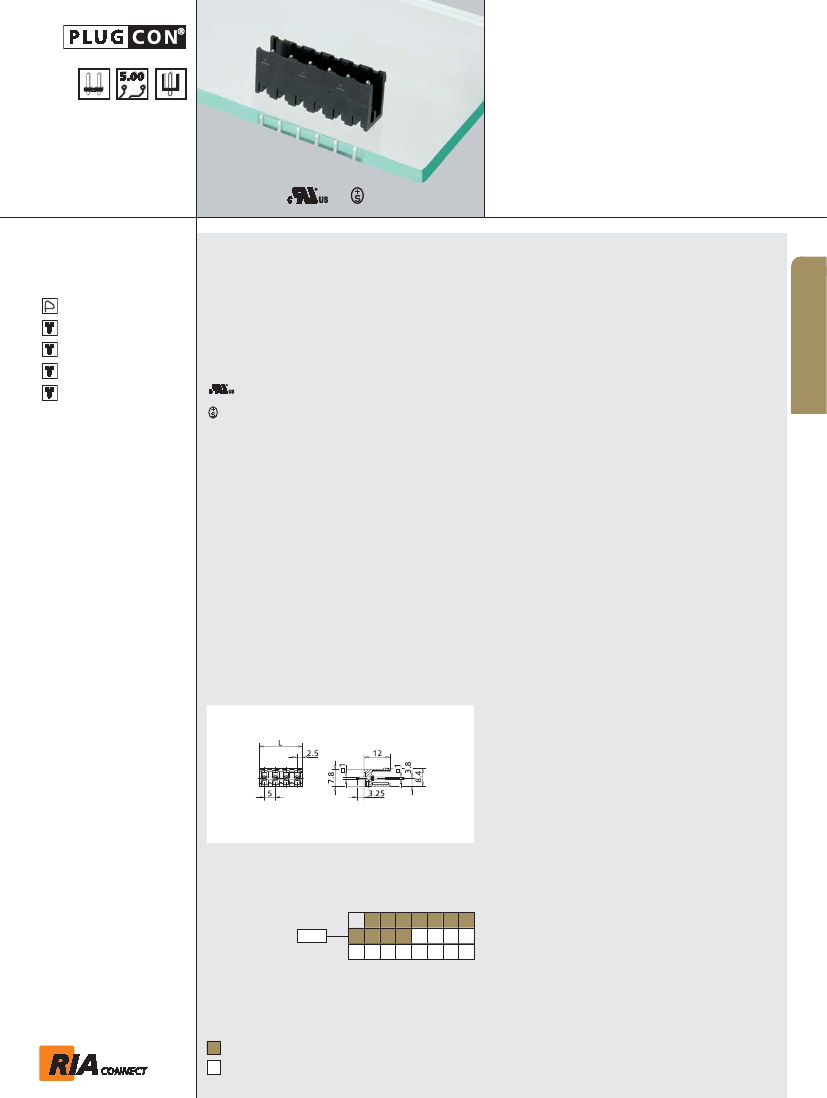

Preview

Download Datasheet

View All

131

Terminal blocks

Type 319

ASP045

Type 313

Type 314

Type 349

Type 350

page 49

page 96

page 94

Type 319

Header, centerline 5 mm / 0.197 inches, vertical

mounting, square contact pins 1 mm / 0.039 inches,

open ends

Technical Data

V/A

300 / 15

320 V / 4 kV / 10 A

Accessories

for

Type 319

Coding set

700024

page 206

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 4 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

320

800

Rated test voltage

Protection category according

to IEC 529

IP00

Solder pin dimension

1.0 x 1.0 mm

Recommended pc board hole

dia.

Ø 1.5 mm

Solder pin length

3.25 mm

Pole size

2 - 24

Color

black

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 5 mm / 0.197 inches

Part numbers (P/N)

Type 319

centerline 5 mm / 0.197 inches

(information: page 110)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

P/N

313191

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
