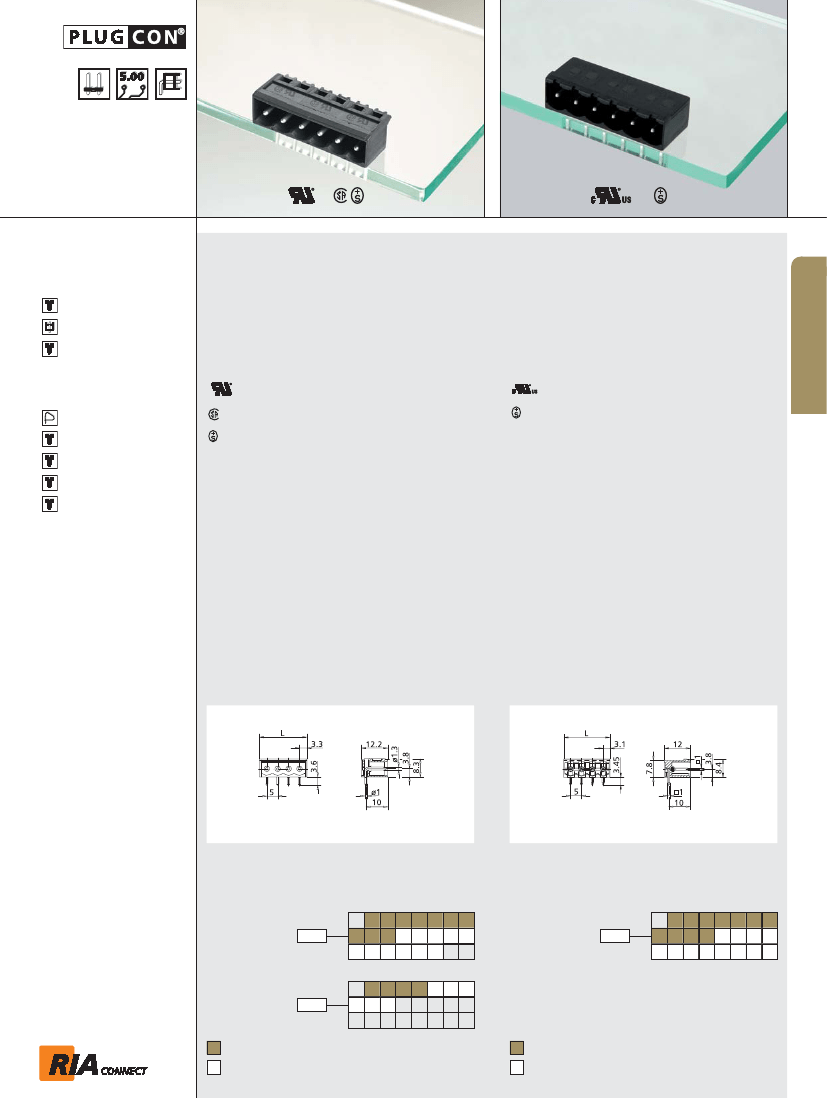

139
Terminal blocks
to
Type 030
Type 009
Type 026
Type 049
page 93
page 129
page 93
Type 030
Header, centerline 5 mm / 0.197 inches, horizontal
mounting, round contact pins 1.3 mm / 0.051 inches,
closed ends
Type 330
Header, centerline 5 mm / 0.197 inches, horizontal
mounting, square contact pins 1 mm / 0.039 inches,
closed ends, codable
A
Technical Data
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.7 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
5.2 mm
Pole size
2 - 22
Color
black
Technical Data
V/A
300 / 15
320 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP00
Solder pin dimension
1.0 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
3.45 mm
Pole size
2 - 24
Color
black
to
Type 330
ASP045
Type 313
Type 314
Type 349
Type 350
page 49
page 96
page 96
page 94
page 94
V/A
Accessories
for
Type 330
Coding set
700024
page 206
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 6.6 mm / 0.260 inches
L = (pole size - 1) x centerline + 6.2 mm / 0.244 inches
Part numbers (P/N)
Type 030
centerline 5 mm / 0.197 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 330
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
310301
Type 030
centerline 10 mm / 0.394 inches
P/N
313301
02 03 04 05 06 07 08
09 10 11
P/N
310302
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
