31335104 Overview

Board Connector,

31335104 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

133

Terminal blocks

Type 177

ASP045

Type 313

Type 314

Type 349

Type 350

page 49

page 96

page 94

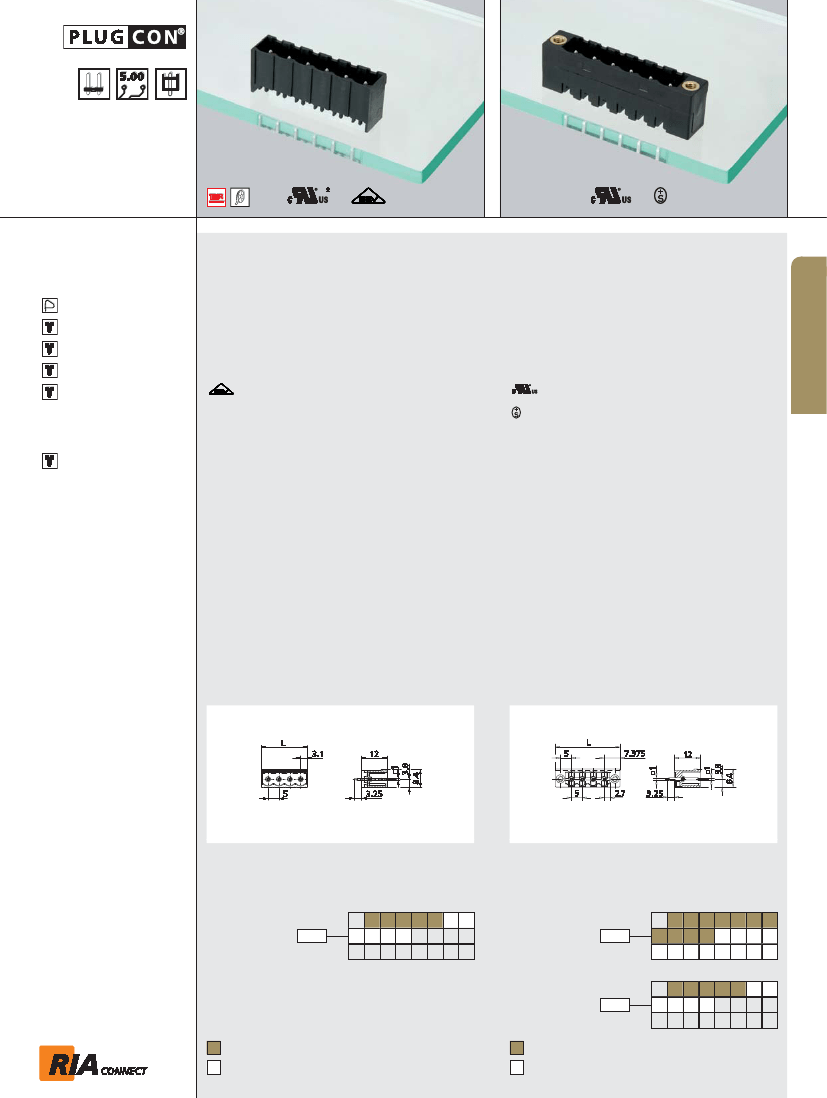

Type 177

Header, centerline 5 mm / 0.197 inches, vertical

mounting, designed for THR, optional Tape on Reel

packaging for automated processing, square contact

pins 1 mm / 0.039 inches, codable

Type 335

Header, centerline 5 mm / 0.197 inches, vertical

mounting, square contact pins 1 mm / 0.039 inches,

mounting flange, codable

Technical Data

250 V / 4 kV / 10 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 4 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

320

800

Rated test voltage

Protection category according

to IEC 529

IP00

Solder pin dimension

1.0 x 1.0 mm

Recommended pc board hole

dia.

Ø 1.5 mm

Solder pin length

3.25 mm

Pole size

2 - 12

Color

black

Technical Data

V/A

300 / 15

400 V / 4 kV / 10 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 4 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

320

800

Rated test voltage

Protection category according

to IEC 529

IP00

Solder pin dimension

1.0 x 1.0 mm

Recommended pc board hole

dia.

Ø 1.5 mm

Solder pin length

3.25 mm

Pole size

2 - 24

Color

black

Type 335

Type 351

page 95

Accessories

for

Type 177

and

Type 335

Coding set

700024

page 206

Note for Type 177

Packaging for automated

processing is available on

demand. Please do not hesi-

tate to contact us.

Dimensions in mm

1 mm = 0.0394 in.

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 6.2 mm / 0.244 inches

L = (pole size - 1) x centerline + 14.75 mm / 0.581 inches

Part numbers (P/N)

Type 177

centerline 5 mm / 0.197 inches

(information: page 110)

Complete the part number by

adding the pole size.

Part numbers (P/N)

Type 335

(information: page 110)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12

centerline 5 mm / 0.197 inches

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

P/N

311771

P/N

313351

Type 335

* approval pending

centerline 10 mm / 0.394 inches

02 03 04 05 06 07 08

09 10 11 12

P/N

313352

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
