DPD2501B2: DescriptionD-SUBMINIATURE DUAL PORT, STACKED, RIGHT ANGLE; CategoryThe connector The connector; File Size181KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DPD2501B2 Overview

D-SUBMINIATURE DUAL PORT, STACKED, RIGHT ANGLE

DPD2501B2 Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compli
ECCN code	EAR99
body width	1.244 inch
subject depth	0.773 inch
body length	2.088 inch
Body/casing type	PLUG-RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE/FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.9116 mm
Plating thickness	5u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	1.946 N

Preview

Download Datasheet

View All

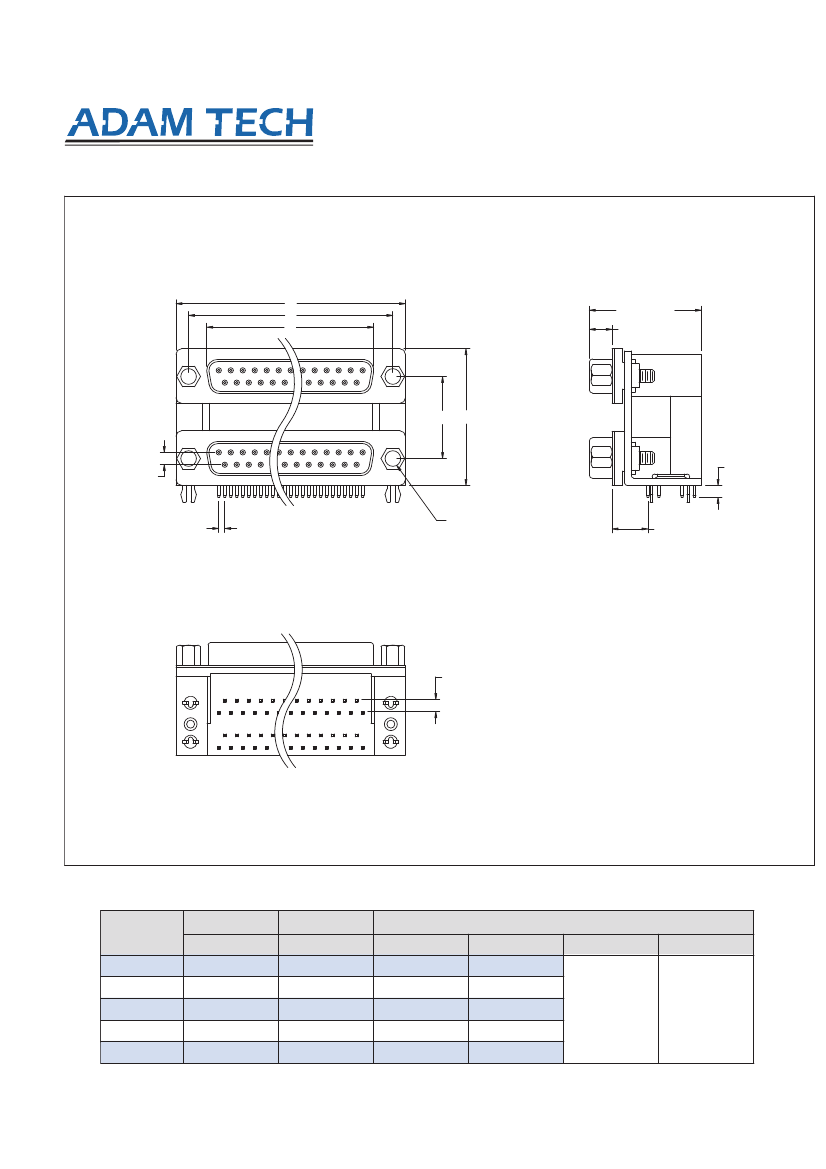

D-SUBMINIATURE

Adam Technologies, Inc.

DUAL PORT, STACKED, RIGHT ANGLE

DDP SERIES

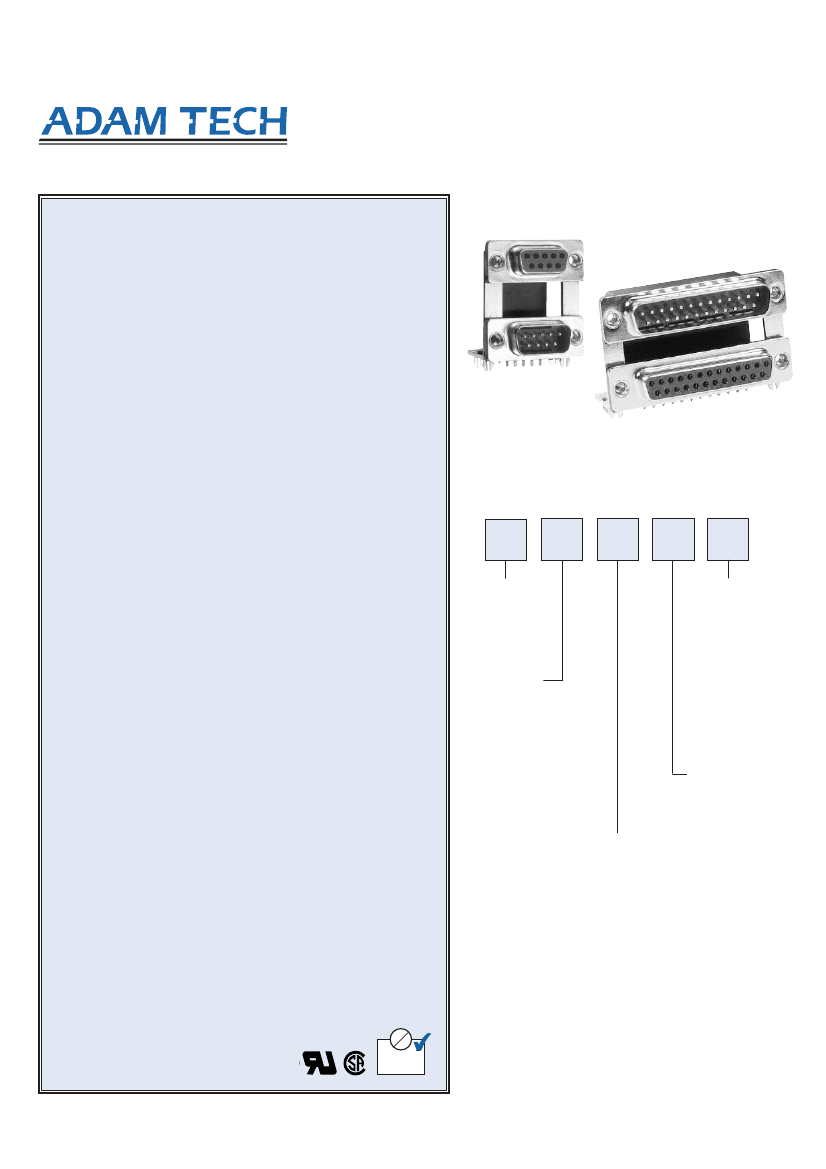

INTRODUCTION:

Adam Tech Dual Port D-Sub connectors are a popular space saving

interface for many I/O applications. Offered in 9, 15, 25, 37 and 50

positions they are a good choice for a low cost industry standard

connection and are ideal for PCB space saving applications. These

connectors are manufactured with precision stamped contacts and

are available in a number of connector combinations including same

and mixed gender, mixed density and mixed interface. Options

include a choice of contact plating and a variety of mating, mounting

and grounding options.

FEATURES:

Stacked space saving design

Industry standard compatibility

Durable metal shell design

Precision formed contacts

Variety of Mating and mounting options

MATING CONNECTORS:

Adam Tech D-Subminiatures and all industry standard

D-Subminiature connectors.

SPECIFICATIONS:

Material:

Insulator: PBT, 30% glass reinforced, rated UL94V-0

Insulator Color: Black

Contacts: Phosphor Bronze

Shell: Steel, Tin or Zinc plated

Hardware: Brass, Nickel plated

Contact Plating:

Gold Flash (15 and 30

µin

Optional) over Nickel underplate overall.

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 5 Amps max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

Extraction force: 0.44 lbs min

Temperature Rating:

Operating temperature: -65°C to +125°C

PACKAGING:

Anti-ESD plastic trays

APPROVALS AND CERTIFICATIONS:

UL Recognized File No. E224053

CSA Certified File No. LR1578596

ORDERING INFORMATION

DPD

BOARD

MOUNTING

OPTIONS

= Through

holes only

= #4-40

threaded

holes

= Forked board

locks

SERIES

INDICATOR

DPD

= Stacked,

Dual Port

D-Sub

POSITIONS

= 9 Position

= 15 Position

= 25 Position

= 37 Position

= 50 Position

X/X

= Mixed positions

customer specified

PORT SPACING

= .900" (Dim. "E")

= .750" (Dim. "E")

= .625" (Dim. "E")

TOP / BOTTOM GENDER

= Plug top, receptacle bottom

= Plug top and bottom

= Receptacle top, plug bottom

= Receptacle top and bottom

COMPLIANT

2002

/ 95

/ EC

RoHS

OPTIONS:

Add designator(s) to end of part number

= 15 µin gold plating in contact area

= 30 µin gold plating in contact area

= #4-40 Jackscrews installed

= Rear boardlocks only

= Four prong board lock

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM

RoHS

COMPLIANT
