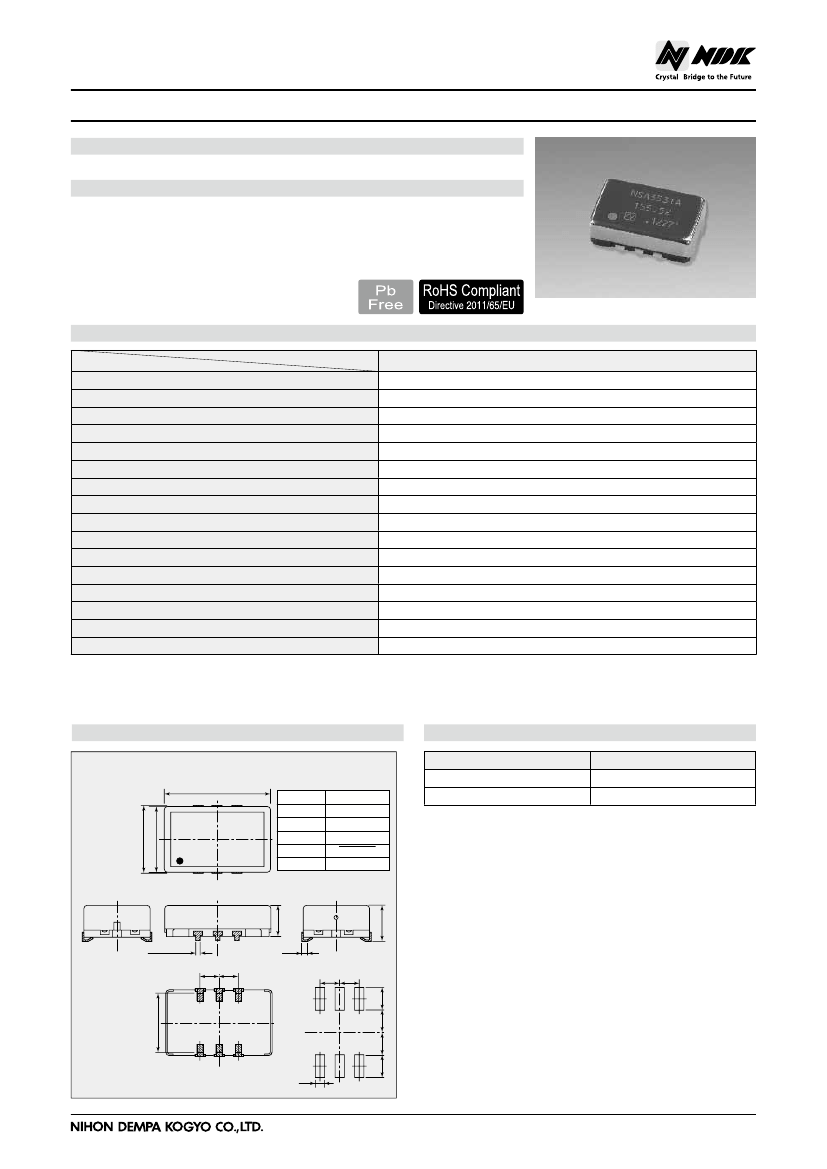

Crystal Oscillator
Model Name NV13M08YK
■
Main Application
■
Features
For , SDH-, and SONET-related equipment.
● A J lead-mount type SMD crystal oscillator.
● Frequency range : 75 to 800MHz. A wide frequency band. (PECL)
● Low jitter(Max. 1ps)
● Fundamental crystal units are designed.(Frequency Multiplying Model from
210MHz)
● Enable/Disable function is optional.
● Low power supply voltage(+3.3 V)
Voltage-Controlled Crystal Oscillator (VCXO) NV13M08Y Series
■
Specifications
Item
Nominal frequency range (MHz)
Supply voltage [V
CC
] (V)
Control voltage [V
cont
] (V)
Current consumption (mA)
Output voltage
Symmetry (%)
Rise time / Decay (fall) time
Output load condition (PECL)
Operating temperature Range (°C)
Storage temperature range (°C)
Overall frequency tolerance (*1)
Frequency control range
Frequency change polarity
Linearity of frequency modulation deviation
Input impedance
Phase jitter
*Please specify products with or without Enable/Disable function.
(*1) Overall frequency tolerance includes "Frequency/temperature characteristics","Frequency tolerance","Frequency/voltage
coefficient","Frequency/load coefficient" and "Long-term frequency stability(1 year)".
Model
NV13M08YK
75 to 800
+3.3 ±10%
+1.65±1.5V
Max. 65
V
OH
: Min. V
CC
-1.02 V , V
OL
: Max. V
CC
-1.60 V
45 to 55 (at 50 % Vout)
Max. 1ns(20% to 80%)
50Ω(V
CC
–2V)
–40 to +85
–55 to +125
Max. ±50 × 10
–6
Min. 100 × 10
–6
Positive
Max. 5%
Min. 100kΩ
Max. 1ps (12 kHz to 20 MHz)
■
Dimensions
mm
13.8 ± 0.2
■
List of Enable / Disable function
Input (#2)
Low (V
IL
≤V
CC
-1.5) or NC
High (V
IH
≥V
CC
-1.1V)
Output (#4, #5)
Nominal frequency Output
High Z
Terminal land connections
#1
#2
#3
#4
#5
#6
V
cont
V
cont
NC or E/D
GND
OUTPUT
OUTPUT
V
CC
8.9 ± 0.3
8.65 ± 0.2
4.1 ± 0.2
0.51 ± 0.2
2.54 ± 0.1
#1
7.8 ± 0.6
#2
2.54 ± 0.1
#3
(0.6)
Land pattern (Typical)
2.54
2.54
3.0
1.27
3.0
#6
#5
#4
2.9
2.9
4.5 ± 0.2
- 12 -
12A_1026_NV13M08YK_e
Crystal Oscillator
Model Name NV13M08YK
■
List of Ordering Codes
Ordering Code depends on with or without Enable/Disable function.
Frequency
(MHz)
100
106.25
122.88
125
155.52
156.25
160
167.3316
184.32
200
245.76
320
368.64
491.52
622.08
640
644.5313
666.5143
672.1627
669.3266
693.483
696.4215
698.8123
764.4203
777.6
792.0087
794.728
800
Ordering Code
Without Enable/Disable function
NV13M08YK–100M–NSA3531A
NV13M08YK–106.25M–NSA3531A
NV13M08YK–122.88M–NSA3531A
NV13M08YK–125M–NSA3531A
NV13M08YK–155.52M–NSA3531A
NV13M08YK–156.25M–NSA3531A
NV13M08YK–160M–NSA3531A
NV13M08YK–167.3316M–NSA3531A
NV13M08YK–184.32M–NSA3531A
NV13M08YK–200M–NSA3531A
NV13M08YK–245.76M–NSA3531B
NV13M08YK–320M–NSA3531B
NV13M08YK–368.64M–NSA3531B
NV13M08YK–491.52M–NSA3531B
NV13M08YK–622.08M–NSA3531B
NV13M08YK–640M–NSA3531B
NV13M08YK–644.5313M–NSA3531B
NV13M08YK–666.5143M–NSA3531B
NV13M08YK–672.1627M–NSA3531B
NV13M08YK–669.3266M–NSA3531B
NV13M08YK–693.483M–NSA3531B
NV13M08YK–696.4215M–NSA3531B
NV13M08YK–698.8123M–NSA3531B
NV13M08YK–764.4203M–NSA3531B
NV13M08YK–777.6M–NSA3531B
NV13M08YK–792.0087M–NSA3531B
NV13M08YK–794.728M–NSA3531B
NV13M08YK–800M–NSA3531B
With Enable/Disable function
NV13M08YK–100M–NSA3531C
NV13M08YK–106.25M–NSA3531C
NV13M08YK–122.88M–NSA3531C
NV13M08YK–125M–NSA3531C
NV13M08YK–155.52M–NSA3531C
NV13M08YK–156.25M–NSA3531C
NV13M08YK–160M–NSA3531C
NV13M08YK–167.3316M–NSA3531C
NV13M08YK–184.32M–NSA3531C
NV13M08YK–200M–NSA3531C
NV13M08YK–245.76M–NSA3531D
NV13M08YK–320M–NSA3531D
NV13M08YK–368.64M–NSA3531D
NV13M08YK–491.52M–NSA3531D
NV13M08YK–622.08M–NSA3531D
NV13M08YK–640M–NSA3531D
NV13M08YK–644.5313M–NSA3531D
NV13M08YK–666.5143M–NSA3531D
NV13M08YK–672.1627M–NSA3531D
NV13M08YK–669.3266M–NSA3531D
NV13M08YK–693.483M–NSA3531D
NV13M08YK–696.4215M–NSA3531D
NV13M08YK–698.8123M–NSA3531D
NV13M08YK–764.4203M–NSA3531D
NV13M08YK–777.6M–NSA3531D
NV13M08YK–792.0087M–NSA3531D
NV13M08YK–794.728M–NSA3531D
NV13M08YK–800M–NSA3531D
Voltage-Controlled Crystal Oscillator (VCXO) NV13M08Y Series
The above frequencies are NDK’s standard frequencies.
Frequencies other than the above are available.
Feel free to contact our sales representatives.
- 13 -
12A_1026_NV13M08YK_e
