33510813 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 33510813

Preview

33510813: DescriptionCombination Line Connector; CategoryThe connector The connector; File Size416KB，1 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric Compare View All

33510813 Overview

Combination Line Connector

33510813 Parametric

Parameter Name	Attribute value
Maker	Delphi Connection Systems
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	COMBINATION LINE CONNECTOR
Manufacturer's serial number	33510813
Base Number Matches	1

Preview

Download Datasheet

View All

N°

A

B

C

D

E

NOTE

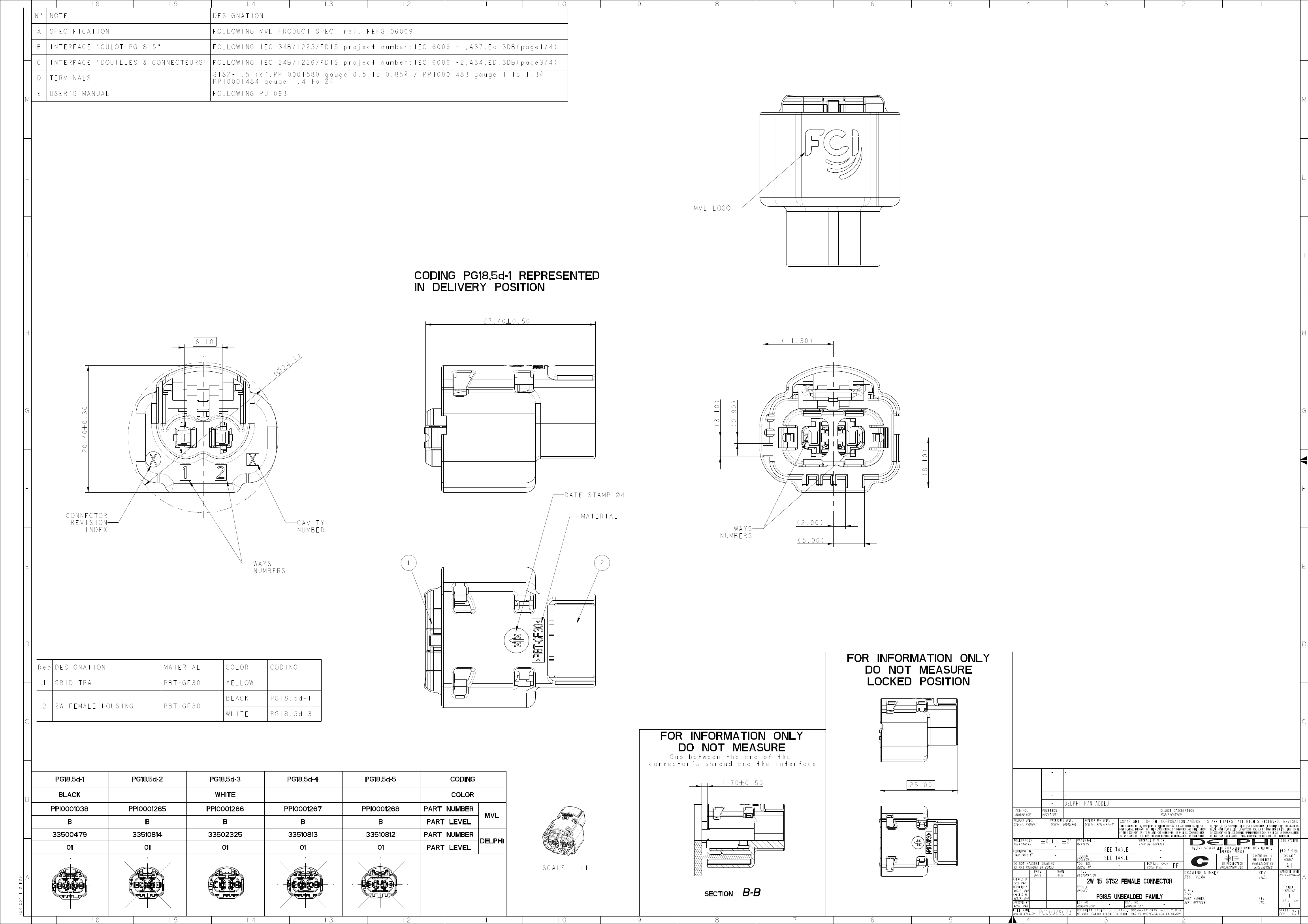

SPECIFICATION

INTERFACE "CULOT PG18.5"

INTERFACE "DOUILLES

TERMINALS

USER'S MANUAL

& CONNECTEURS"

DESIGNATION

FOLLOWING MVL PRODUCT SPEC. ref. FEPS 06009

FOLLOWING IEC 34B/1225/FDIS project number:IEC 60061-1,A37,Ed.3DB(page1/4)

FOLLOWING IEC 24B/1226/FDIS project number:IEC 60061-2,A34,ED.3DB(page3/4)

GTS2-1.5 ref.PPI0001580 gauge 0.5 to 0.85² / PPI0001483 gauge 1 to 1.3²

PPI0001484 gauge 1.4 to 2²

FOLLOWING PU 093

MVL LOGO

CODING PG18.5d-1 REPRESENTED

IN DELIVERY POSITION

27.40

6.10

1

4.

2

(

)

#

0.50

( 11.30 )

( 3.10 )

20.40

( 0.90 )

#

0.30

DATE STAMP Ø4

CONNECTOR

REVISION

INDEX

MATERIAL

WAYS

NUMBERS

CAVITY

NUMBER

( 2.00 )

( 5.00 )

WAYS

NUMBERS

1

2

Rep

1

DESIGNATION

GRID TPA

MATERIAL

PBT-GF30

COLOR

YELLOW

BLACK

CODING

FOR INFORMATION ONLY

DO NOT MEASURE

LOCKED POSITION

PG18.5d-1

PG18.5d-3

2

2W FEMALE HOUSING

PBT-GF30

WHITE

FOR INFORMATION ONLY

DO NOT MEASURE

Gap between the end of the

connector's shroud and the interface

PG18.5d-1

BLACK

PPI0001038

B

33500479

01

PPI0001265

B

33510814

01

PG18.5d-2

PG18.5d-3

WHITE

PPI0001266

B

33502325

01

PPI0001267

B

33510813

01

PPI0001268

B

33510812

01

PG18.5d-4

PG18.5d-5

CODING

COLOR

PART NUMBER

PART LEVEL

PART NUMBER

PART LEVEL

MVL

-

DELPHI

#

0.1

-

( 8.10 )

1.70

#

0.50

25.00

-

DELPHI P/N ADDED

-

#

2°

-

SEE TABLE

-

X

X X

-

A1

SCALE

1:1

2006/08/22

P DAUDIN

F FAURIE

S LACOTE

Pascal MENARD

2W 1.5 GTS2 FEMALE CONNECTOR

PG18.5 UNSEALDED FAMILY

-

PCC0329673

SERIAL RELEASED

See Table

E

-

1

SECTION

B-B

2013/05/15

2013/07/04

PCC0329673

-

2:1

33510813 Related Products

	33510813	33510812	33510814
Description	Combination Line Connector	Combination Line Connector	Combination Line Connector
Maker	Delphi Connection Systems	Delphi Connection Systems	Delphi Connection Systems
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Manufacturer's serial number	33510813	33510812	33510814
Base Number Matches	1	1	1
