33510829: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Female, Blue Insulator; CategoryThe connector The connector; File Size512KB，1 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric Compare View All

33510829 Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, Blue Insulator

33510829 Parametric

Parameter Name	Attribute value
Maker	Delphi Connection Systems
Reach Compliance Code	unknown
body width	0.925 inch
subject depth	0.654 inch
body length	0.512 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Minimum insulation diameter	0.055 inch
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	33510829
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
reliability	COMMERCIAL
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

Bemerkung

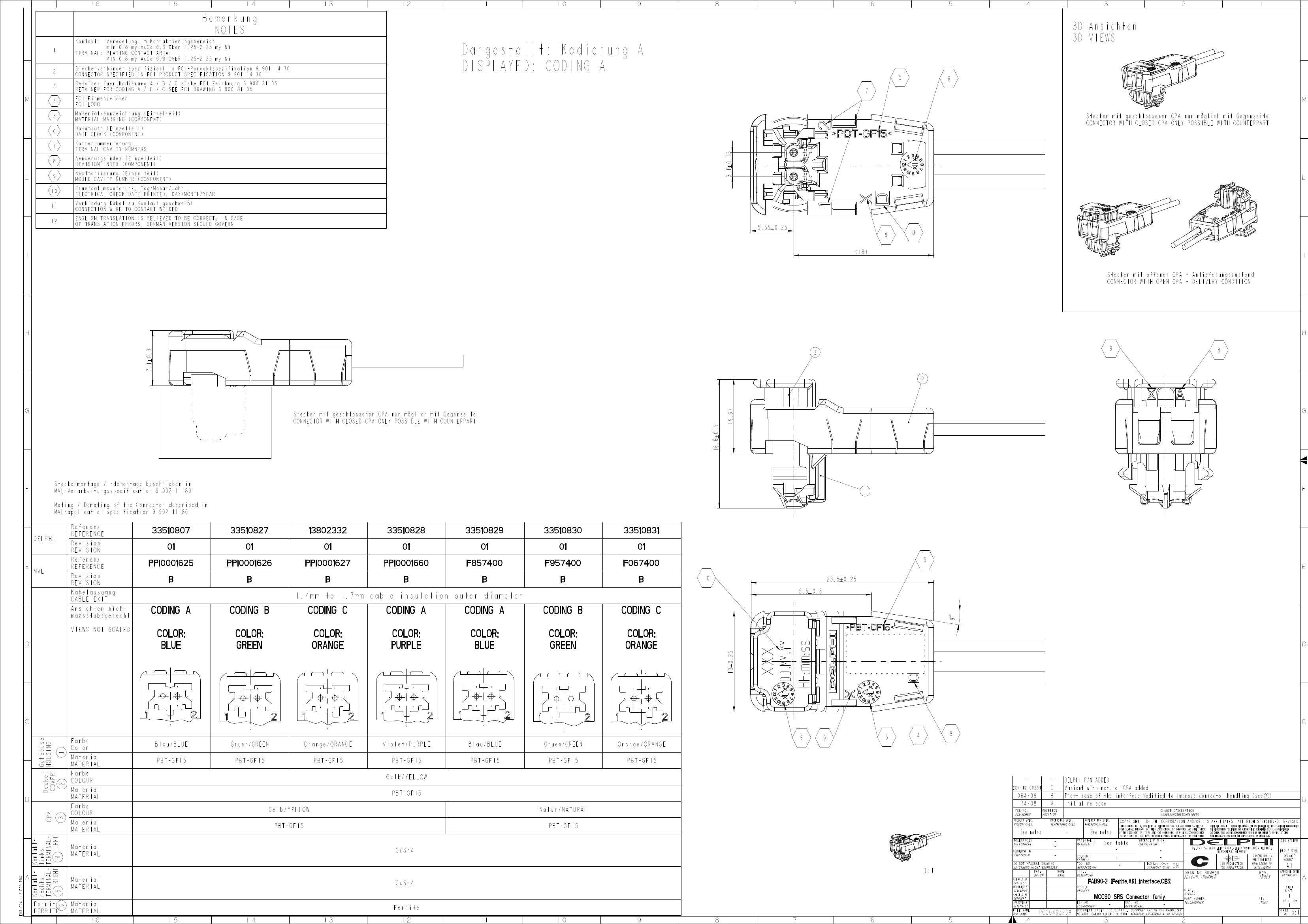

NOTES

Veredelung im Kontaktierungsbereich

min.0.8 my AuCo 0.3 über 1.25-2.25 my Ni

TERMINAL: PLATING CONTACT AREA:

MIN.0.8 my AuCo 0.3 OVER 1.25-2.25 my Ni

Steckerverbinder spezifiziert in FCI-Porduktspezifikation 9 901 14 70

CONNECTOR SPECIFIED IN FCI PRODUCT SPECIFICATION 9 901 14 70

Retainer fuer Kodierung A / B / C siehe FCI Zeichnung 6 900 31 05

RETAINER FOR CODING A / B / C SEE FCI DRAWING 6 900 31 05

FCI Firmenzeichen

FCI LOGO

Materialkennzeichnung (Einzelteil)

MATERIAL MARKING (COMPONENT)

Datumsuhr (Einzelteil)

DATE CLOCK (COMPONENT)

Kontakt:

Dargestellt: Kodierung A

DISPLAYED: CODING A

3D Ansichten

3D VIEWS

Stecker mit geschlossener CPA nur möglich mit Gegenseite

CONNECTOR WITH CLOSED CPA ONLY POSSIBLE WITH COUNTERPART

Aenderungsindex (Einzelteil)

REVISION INDEX (COMPONENT)

Nestmarkierung (Einzelteil)

MOULD CAVITY NUMBER (COMPONENT)

Pruefdatumsaufdruck, Tag/Monat/Jahr

ELECTRICAL CHECK DATE PRINTED, DAY/MONTH/YEAR

Verbindung Kabel zu Kontakt geschweißt

CONNECTION WIRE TO CONTACT WELDED

ENGLISH TRANSLATION IS BELIEVED TO BE CORRECT, IN CASE

OF TRANSLATION ERRORS, GERMAN VERSION SHOULD GOVERN

3.1

0.15

Kammernummerierung

TERMINAL CAVITY NUMBERS

5.55

0.25

(18)

Stecker mit offener CPA - Anlieferungszustand

CONNECTOR WITH OPEN CPA - DELIVERY CONDITION

0.3

7.1

Steckermontage / -demontage beschrieben in

MVL-Verarbeitungsspecification 9 902 11 80

Mating / Demating of the Connector described in

MVL-application specification 9 902 11 80

Referenz

REFERENCE

Revision

REVISION

Referenz

REFERENCE

Revision

REVISION

Kabelausgang

CABLE EXIT

Ansichten nicht

mazsstabsgerecht

VIEWS NOT SCALED

16.6

0.5

Stecker mit geschlossener CPA nur möglich mit Gegenseite

CONNECTOR WITH CLOSED CPA ONLY POSSIBLE WITH COUNTERPART

(9.6)

33510807

PPI0001625

33510827

PPI0001626

13802332

PPI0001627

33510828

PPI0001660

33510829

F857400

33510830

F957400

33510831

F067400

15.5

0.3

0.25

23.5

DELPHI

MVL

1.4mm to 1.7mm cable insulation outer diameter

Gehaeuse

Deckel

HOUSING

COVER

Farbe

Color

Material

MATERIAL

Farbe

COLOUR

Material

MATERIAL

Farbe

COLOUR

Material

MATERIAL

Material

MATERIAL

Blau/BLUE

PBT-GF15

Gruen/GREEN

PBT-GF15

Orange/ORANGE

PBT-GF15

Violet/PURPLE

PBT-GF15

Gelb/YELLOW

PBT-GF15

Blau/BLUE

PBT-GF15

Gruen/GREEN

PBT-GF15

Orange/ORANGE

PBT-GF15

0.25

COLOR:

BLUE

COLOR:

GREEN

COLOR:

ORANGE

COLOR:

PURPLE

COLOR:

BLUE

COLOR:

GREEN

COLOR:

ORANGE

9 $

CODING A

CODING B

CODING C

CODING A

CODING B

CODING C

ECN-12-00291

CPA

Gelb/YELLOW

PBT-GF15

Natur/NATURAL

PBT-GF15

064/09

174/08

DELPHI P/N ADDED

Variant with natural CPA added

Front nose of the interface modified to improve connector handling

Initial release

Kontakt- Kontakt-

rechts

links

TERMINAL-TERMINAL-

5 RIGHT 4 LEFT

See notes

See table

CuSn4

1:1

Material

MATERIAL

Material

MATERIAL

CuSn4

2007/02/12

2013/05/24

2014/06/11

M SCHINDHELM

Rene LEHMANN

Vin REGNIER

M GUNREBEN

FAB90-2 (Ferrite,AK1 interface,CES)

PCC0463269

MCC90 SRS Connector family

See Table

SERIAL RELEASED

Ferrit

FERRITE

Ferrite

2014/06/11

PCC0463269

5:1

33510829 Related Products

	33510829	33510827	33510828
Description	Board Connector, 2 Contact(s), 1 Row(s), Female, Blue Insulator	Board Connector, 2 Contact(s), 1 Row(s), Female, Green Insulator	Board Connector, 2 Contact(s), 1 Row(s), Female, Purple Insulator
Maker	Delphi Connection Systems	Delphi Connection Systems	Delphi Connection Systems
Reach Compliance Code	unknown	unknown	unknown
body width	0.925 inch	0.925 inch	0.925 inch
subject depth	0.654 inch	0.654 inch	0.654 inch
body length	0.512 inch	0.512 inch	0.512 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Minimum insulation diameter	0.055 inch	0.055 inch	0.055 inch
Insulator color	BLUE	GREEN	PURPLE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	33510829	33510827	33510828
Number of rows loaded	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	2	2	2
Base Number Matches	1	1	1
