mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1

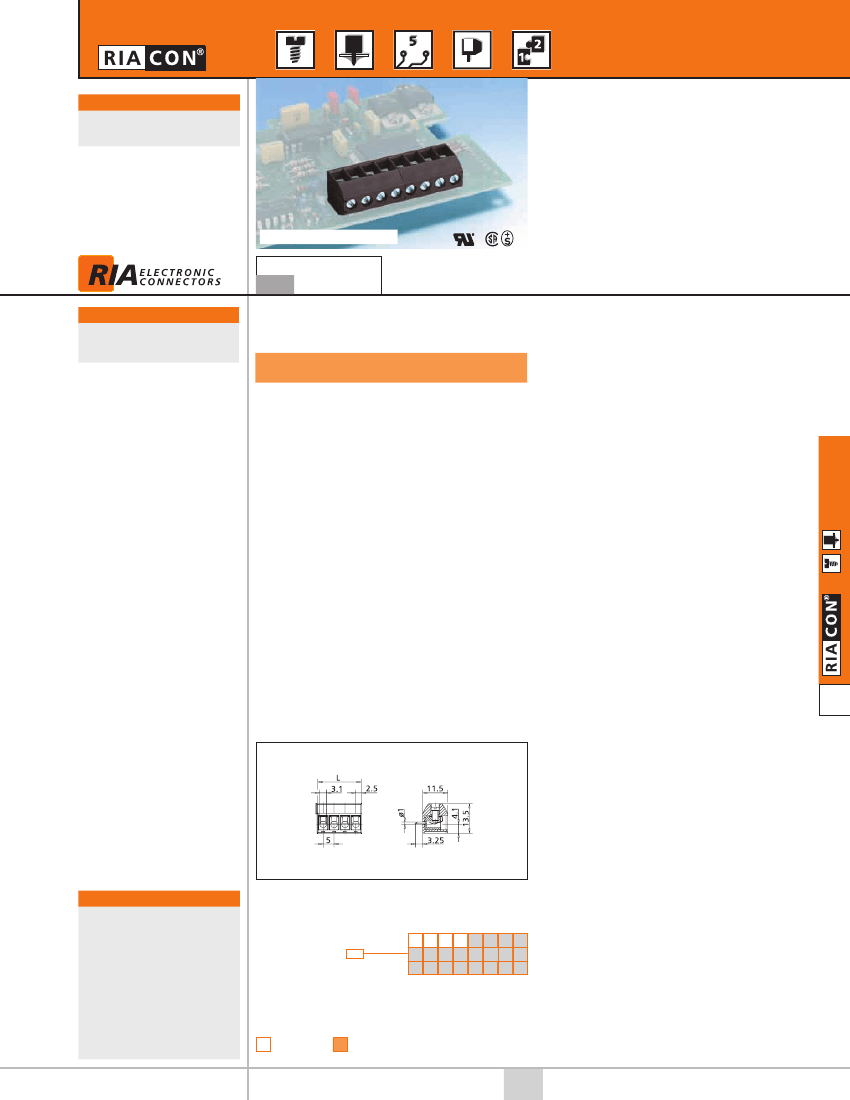

Type
149
Non Modular Type
similar to
Type 149
Type 147
Page DA-22
with wire protection
modular
Electrical Data
Voltage
Current
Wire Range
Screw torque
Pin diameter
PCB hole diameter
Wire strip length
300 V
15 A
14 - 22 AWG
#, + (see note)
7 lbs. - in
1.0 mm
1.3 mm
8 mm
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
brown
brass, tin over nickel plating
tin bronze, tin plated
M3, steel
nickel over copper plating
optional: stainless steel
- consult factory
2 to 4
Color
Terminal
Wire protector
Screw
Pole sizes
Additional material data - pages DA-3 to DA-5
Dimensions (mm)
L = (circuits - 1) x centerline + 5
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Part Numbers
Type 149
Complete the part number
by adding the pole size.
centerline 5 mm
02 03 04
Type 149
#
+
1 No. 30 AWG
(Factory-wiring);
2 No. 22-16 AWG
(Field-wiring);
2 No. 30-16 AWG
(Factory-wiring)
Part No.
311491
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
DA-23
Subject to technical changes and printing errors.
D
