80
A

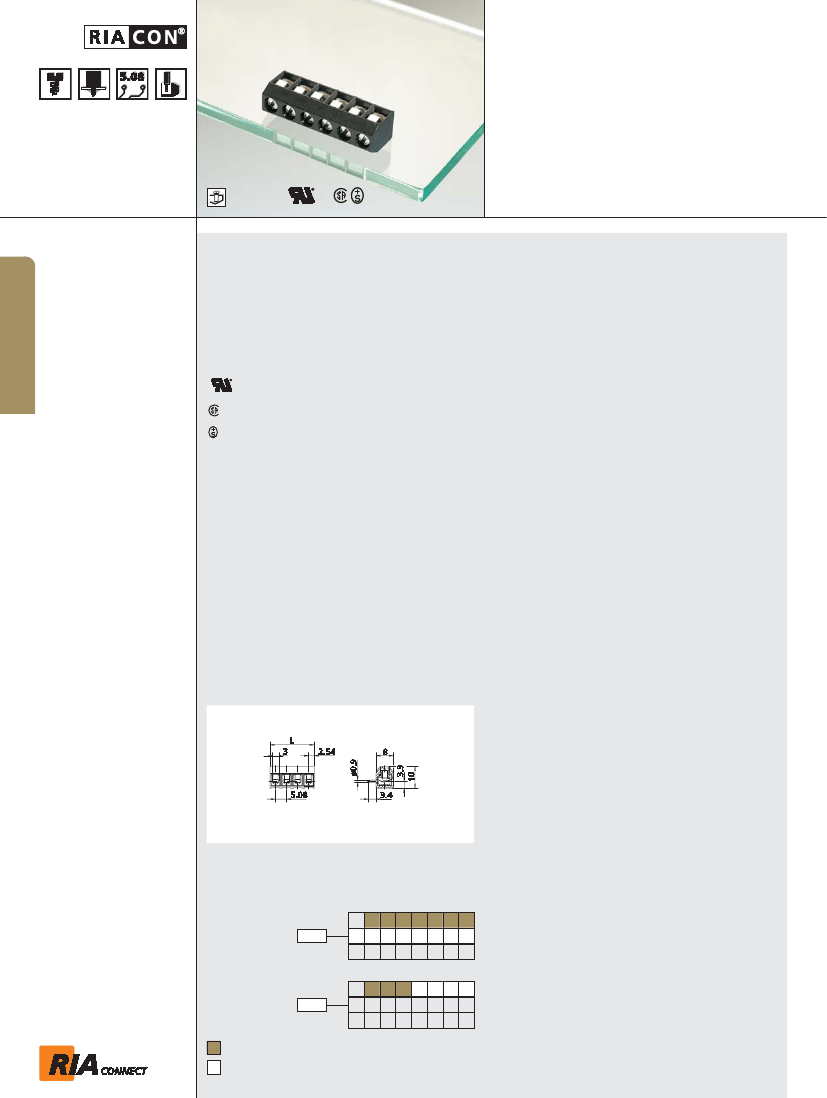

Type 163
Screw type terminal block, solderable, centerline
5.08 mm / 0.200 inches, horizontal wire entry, wire
protector
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 28 - 14
300 / 15 / 28 - 14
0.08 - 1.5 mm² 125 V / 2.5 kV / 13 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.6 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
0.9 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.4 mm
Pole size
2 - 16
Color
black
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5.08 mm / 0.200 inches
Part numbers (P/N)
Type 163
centerline 5.08 mm / 0.200 inches
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
P/N
311631
Type 163
centerline 10.16 mm / 0.400 inches
02 03 04 05 06 07 08
P/N
311632
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
