71
Accessories
for
Type 092
Cover
711401
page 207

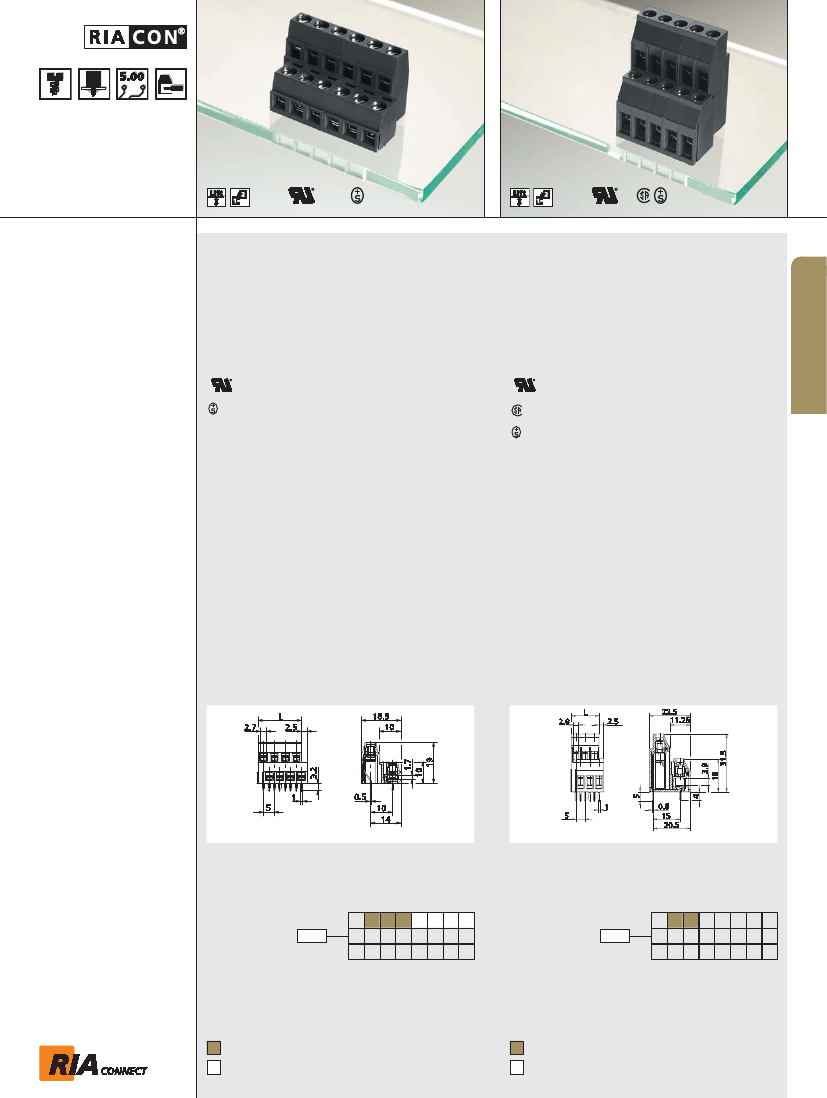

Type 092
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system,
modular, two-tier terminal block
Type 096
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system,
modular, two-tier terminal block
A
Type 092
is modular to
Type
094
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 96
##
2 No. 22 - 16 AWG
(field-wiring);
2 No. 30 - 16 AWG or
1 No. 30 - 12 AWG
(factory-wiring)
Technical Data
V / A / AWG
300 / 10 / 26 - 16
Technical Data
V / A / AWG
V / A / AWG
300 / 20 / 22 - 12
300 / 20 / 22 - 12
0.12 - 1.5 mm² 160 V / 4 kV / 13.5 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.2 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
2 x 0.5 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.2 mm
Pole size
4 - 16
Color
black
0.33 - 2.5 mm² 250 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
2 x 0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
5.00 u. 4.
Pole size
4-6
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 092
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 096
(information: page 56)
Complete the part number by
adding the pole size.
04 06 08 10 12 14 16
centerline 5 mm / 0.197 inches
04 06
P/N
310921
P/N
310961
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
