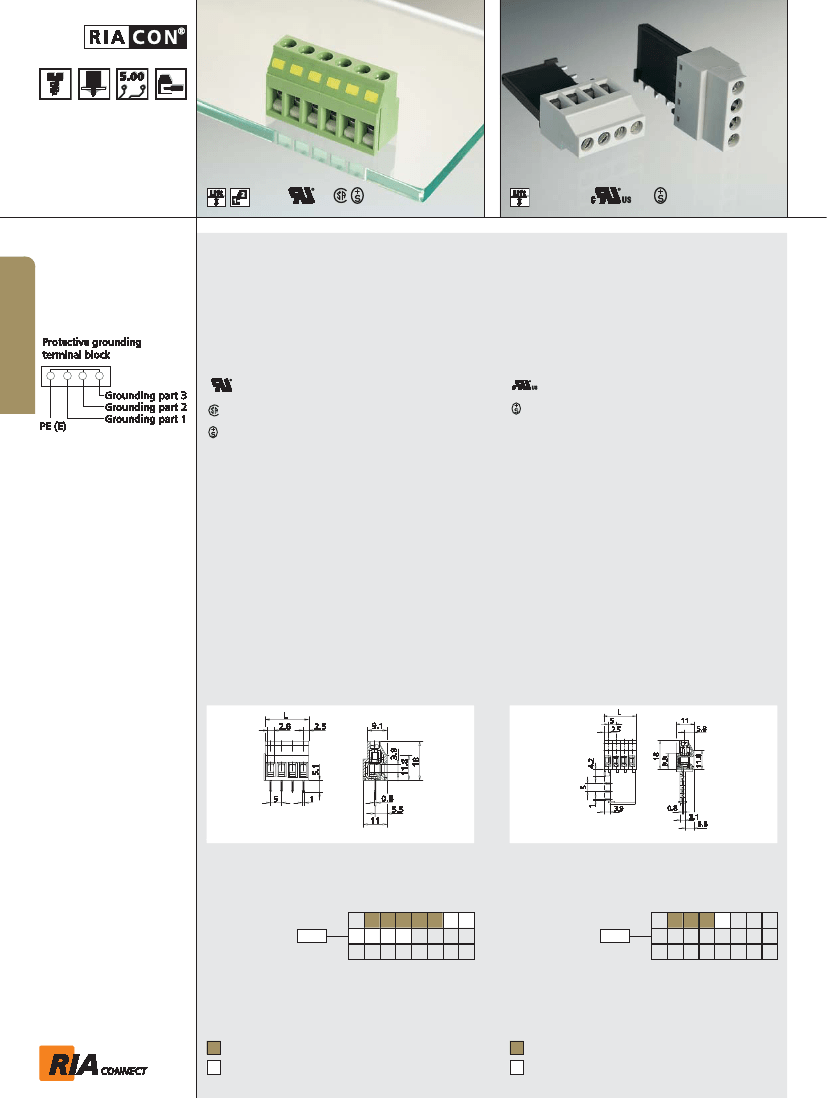

72
Note for type 65
A
Distribution terminal block
The contact bodies are all
interconnected to act as a
“shorting” or “ground” block.
Type 065
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system,
modular
Type 385
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system, solder
pins right-angled to the left
Technical Data
V / A / AWG
V / A / AWG
300 / 20 / 22 - 12
300 / 20 / 22 - 12
Technical Data
V / A / AWG
300 / 20 / 20 - 12
0.52 - 2.5 mm² 250 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
cf. drawing
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
3.9 mm
Pole size
2-5
Color
grey
0.33 - 2.5 mm² 250 V / 4 kV / 16 A
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 65
##
2 No. 22 - 16 AWG
(field-wiring);
2 No. 30 - 16 AWG or
1 No. 30 - 12 AWG
(factory-wiring)
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
5.1 mm
Pole size
2 - 12
Color
green
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 065
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 385
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
centerline 5 mm / 0.197 inches
02 03 04 05
P/N
310651
P/N
313851
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
