Weinschel
C O R P O R A T I O N
Model 3200, 3201, 3205, 3206 & 3209
Programmable Attenuators
Wide Selection of Attenuation Ranges & Steps
dc to 2.0/3.0 GHz
1 Watt
CELL CONFIGURATIONS:
Model
Number
3200-1
3200-1E
3200-2
3200-2E
3201-1
3201-1E
3201-2
3201-4
3205-1
3205-2
3205-3
3205-3E
3206-1
3206-1E
3209-1
NO.
Cells
8
8
5
5
4
4
4
4
6
10
Attenuation
Range/Steps
(dB)
127/1
63.75/0.25
31/1
120/10
1.2/0.1
70/10
55/5
1.5/0.1
63/1
64.5/0.1
Cell
Increments
(dB)
1, 2, 4, 8, 16, 32, 64*
0.25, 0.5, 1, 2, 4, 8,
16, 32
1, 2, 4, 8, 16
10, 20, 30, 60**
0.1, 0.2, 0.3, 0.6
10, 20, 20, 20
5, 10, 20, 20
0.1, 0.2, 0.4, 0.8
1, 2, 4, 8, 16, 32
0.1, 0.2, 0.4, 0.8, 1,
2, 4, 8, 16, 32
Features
o
Widest Selection of Attenuation Ranges and Step
Sizes
o
High Quality Construction and Connectors
o
Special Configurations Available Upon Request
- Custom Cell/Step Size Configurations
- 3.0 GHz and Higher Frequencies

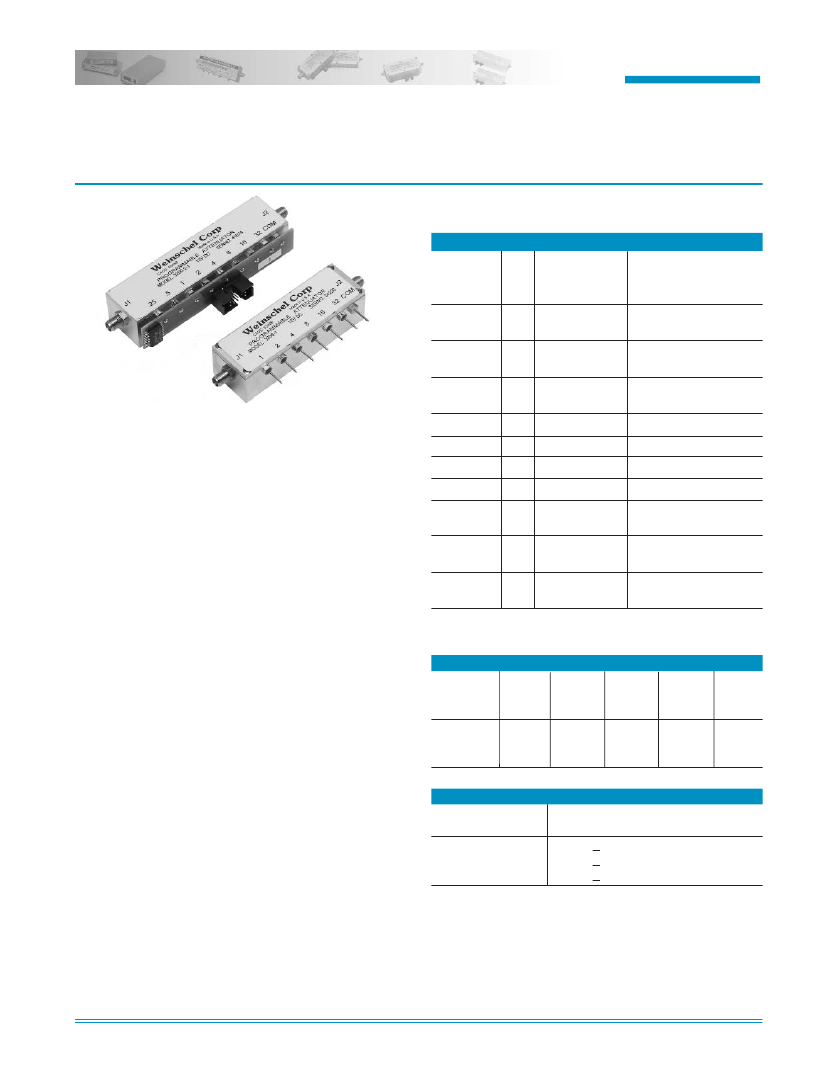

Description
The 3200 Series Programmable Step Attenuators are
designed for use in automatic test equipment and OEM
systems operating in the dc to 3 GHz frequency range. This
series is available in many standard attenuation ranges and
cell configurations. Custom designed configurations are
available upon request. Each cell contains a standard TO-5
type double-pole, double-throw relay that provides a
zero path or attenuated path for the RF signal.
Microstrip circuitry and special compensation techniques
produce flat attenuation versus frequency characteristics.
The microstrip construction, using thick-film circuit ele-
ments, ensures product uniformity. To minimize RF
leakage, the 3200 Series Attenuators are provided with
gold-plated contact areas and feedthrough filters at each
control terminal.
*64 dB cell comprised of two 32 dB cells
*60 dB cell comprised of two 30 dB cells
MAXIMUM SWR:
Frequency
Range
(GHz)
dc - 0.2
0.2 - 2
2-3
3200-1 3200-1E 3201-X 3201-1E 3209-1
3200-2 3200-2E 3205-X 3205-3E
3206-X 3206-1E
1.30
1.20
1.25
1.20
1.35
1.25
1.20
1.25
1.20
1.35
---
1.40
---
1.30
---
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
dc to 2.0 GHz: 3200-1, 3200-2, 3201-1, 3201-2, 3201-4,
3205-1, 3205-2, 3205-3, 3206-1, 3209-1
dc to 3.0 GHz: 3200-1E, 3200-2E, 3201-1E, 3205-3E,
3206-1E
INCREMENTAL ATTENUATION ACCURACY:
Frequency
Accuracy
Range (GHz)
dc - 0.5
+ 0.2 dB or 0.5%
0.5 - 1
+ 0.2 dB or 1.0%
1 -3
+ 0.3 dB or 2.0%
MONOTONICITY:
dc to 3.0 GHz
INCREMENTAL TEMPERATURE COEFFICIENT:
30 and 32 dB Cells:
All other cells:
0.00005 dB/dB/°C
0.00002 dB/dB/°C
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.weinschel.com
s
email: sales@weinschel.com
133
5/25/99
Weinschel
C O R P O R A T I O N
Specifications - Con’t
MAXIMUM INSERTION LOSS (dB):
Frequency
Range (GHz)
dc - 0.5
0.5 - 1.0
1.0 - 1.5
1.5 - 2.0
2.0-3.0
3200-1
3200-2
2.80
3.50
4.25
4.75
---
3200-1E
3200-2E
2.00
2.70
3.00
3.50
4.30
3201-1
3201-2
1.80
2.40
3.00
3.75
---
3205-X
3201-4
1.80
2.30
2.80
3.30
---
3201-1E
3205-3E
1.25
1.75
2.25
2.50
3.40
3206-1
2.00
2.70
3.30
4.00
---
3206-1E
1.50
2.00
2.50
2.80
3.70
3209-1
3.50
4.50
5.60
6.70
---
POWER RATING:
1 watt average to 25°C ambient
temperature, derated linearly to 0.25 watt @ 71°C. 50 watts
peak (5
µsec
pulse width; 1% duty cycle)
POWER COEFFICIENT:
<0.005 dB/dB/watt
RATED SWITCH LIFE:
5 million cycles operations per cell
@ 0 dBm
SWITCHING TIME:
6 msec. maximum at nominal rated
voltage
RELEASE TIME:
3 msec maximum
CYCLING RATE:
5 Hz maximum per relay
OPERATING VOLTAGE:
+ 12V (+ 16V maximum; +10V
minimum)
OPERATING CURRENT:
2 GHz Models: 14 mA typical per cell @ +12V
3 GHz Models: 30 mA typical per cell @ +12V
TEMPERATURE RANGE (Operating):
-55°C to +71°C
CALIBRATION:
Test data is available at additional cost.
CONNECTORS:
SMA female connectors per MIL-STD-348
interface dimensions - mate nondestructively with
MIL-C-39012 connectors.
CONTROL TERMINALS:
0.040 inch. (1 mm) diameter
solderable leads. May be used with PC board sockets/
receptacles.
CONSTRUCTION:
Aluminum
Stainless steel body and beryllium
copper contacts.
Control terminals: Brass/Copper, Silver plated
WEIGHT (Typical):
3200-1, 3200-2, 3200-1E & 3200-2E:
3201-1, 3201-4 & 3201-1E:
3201-2:
3205-1, 3205-2, 3205-3, 3205-3E:
3206-1, 3206-1E:
3209-1:
MODEL NUMBER DESCRIPTION:
Example:
117 g (4.1 oz)
89 g (3.1 oz)
96 g (3.4 oz)
77 g (2.7 oz)
99 g (3.5 oz)
159 g (5.6 oz)
Housing:
Connectors:
CONTROL CONFIGURATION:
Standard Unit:
One terminal is connected to case ground
and the remaining terminals are provided for activation of
individual cells. Attenuation is fail-safe to "0" setting in the
absence of a control voltage. Application of a voltage (+) to
a particular cell causes it to switch to the attenuate position.
Units with TTL Option:
Units with this option are supplied
with a very low profile connectorized TTL interface board
mounted directly to the control terminals. This TTL interface
option is available with either a 10 pin ribbon cable connec-
tor or a 15 pin "D" connector (limited
models,
refer to list
below). Each type is supplied with a mating connector.
Refer to Physical Dimensions for mating connector
pin/wiring details. Two wires are specified for supply voltage
and ground. The remaining wires will accept TTL control
signals to activate or de-activate a particular attenuation
cell. A TTL high will energize a cell to the high attenuation
state, whereas a TTL low will maintain a cell in its zero
attenuation state.
To order 3200 Series Attenuators with this option add -1 to
basic model number for ribbon cable connector and -2 for
the "D" connector. Example: Model 3201-1 with a TTL inter-
face board would be 3201-1-1. Mating connector is
provided. To order a TTL Driver board separately for an
existing 3200 Series Attenuator, use the following:
Basic
Model No.
3200-1,
3200-2,
3201-1,
3201-2
3201-4
3205-1
3205-2
3205-3,
3206-1,
3209-1
3200-1E
3200-2E
3201-2E
TTL BD Kit Part No. TTL BD Part No.
10 Pin Ribbon
15 Pin "D" CONN
101-1780
101-1780
101-1781
101-1781
101-1781
101-1781
101-1781
101-1781
101-1781
101-1804-000*
101-1798-000
101-1798-000
101-1798-001
101-1798-001
101-1798-001
N/A
N/A
N/A
N/A
N/A
3205-3E
3206-3E
* 14 pin ribbon connector.
3200-X* - X
Basic Model
Number
TTL Option
(Add -1 or -2)
Example: 3200-1-1
Note: Control is non-latching and requires a continuous
control signal for the period of time in which attenuation is
required.
*Refer to Cell Configuration table for available attenuation ranges and
step sizes. Add E for 3 GHz designs, check table for available models.
134
1/19/00
5305 Spectrum Drive, Frederick, MD 21703-7362
!
TEL: 301-846-9222, 800-638-2048
!
Fax: 301-846-9116
web: www.weinschel.com
!
email: sales@weinschel.com
Weinschel
C O R P O R A T I O N
TTL DRIVER SPECIFICATIONS:
INTERFACE CONNECTOR:
Option -1(Models 3200, 3201,
3205 and 3206): 10 pin .025 square post header on .1
center, mates with Amp connector 746285-1 or equivalent.
Option -1 (3209): 14 pin .025 square post header on .1
center, mates with Amp connector 746285-2 or equivalent.
Option -2: 15 pin D Socket Connector, mates with Cannon
connector DA-15S or equivalent.
INPUT VOLTAGE:
V
IN
High= +2.0V minimum
+5.0V typical
Vcc maximum
V
IN
Low = 0 minimum
0.8 maximum
I
IN
(VIN=2.4 V) = 55
µA
I
IN
(VIN=3.85 V) = 280
µA
SUPPLY CURRENT (Digital Section):
maximum
I
CC
=25.0 mA
SUPPLY CURRENT (per cell continous):
I
CC
=25.0 mA
maximum for 2 GHz models and 30 mA per cell for 3 GHz
models.
SUPPLY VOLTAGE:
V
CC
=+12.0 to +15V
TEMPERATURE RANGE (Operating):
-40°C to +70°C
NEW SMARTSTEP DRIVER MODELS:
Most 3200s are
available with a SmartStep interface\driver cards. These are
designed to interface with our 8210A Series SmartStep
Controllers which greatly simplifies computer control
applications. Refer to Model 3200T and 3201T data sheet
for more information.
INPUT CURRENT:

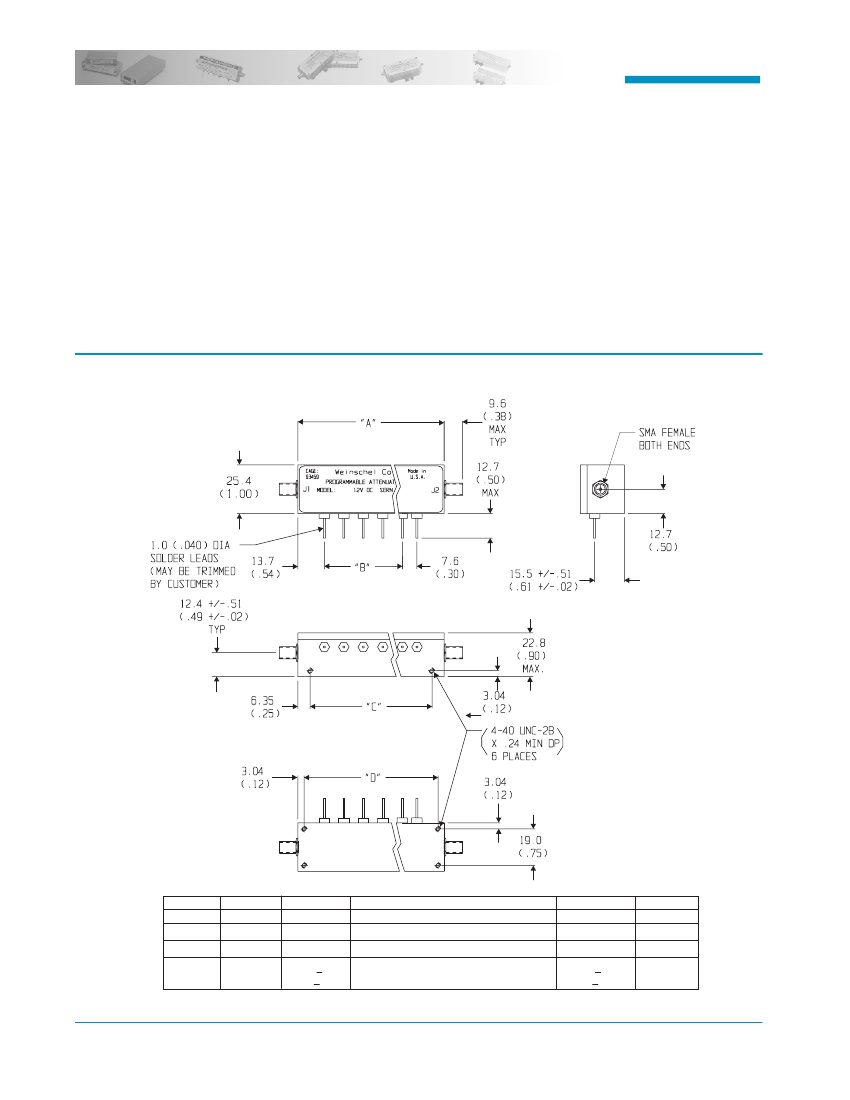

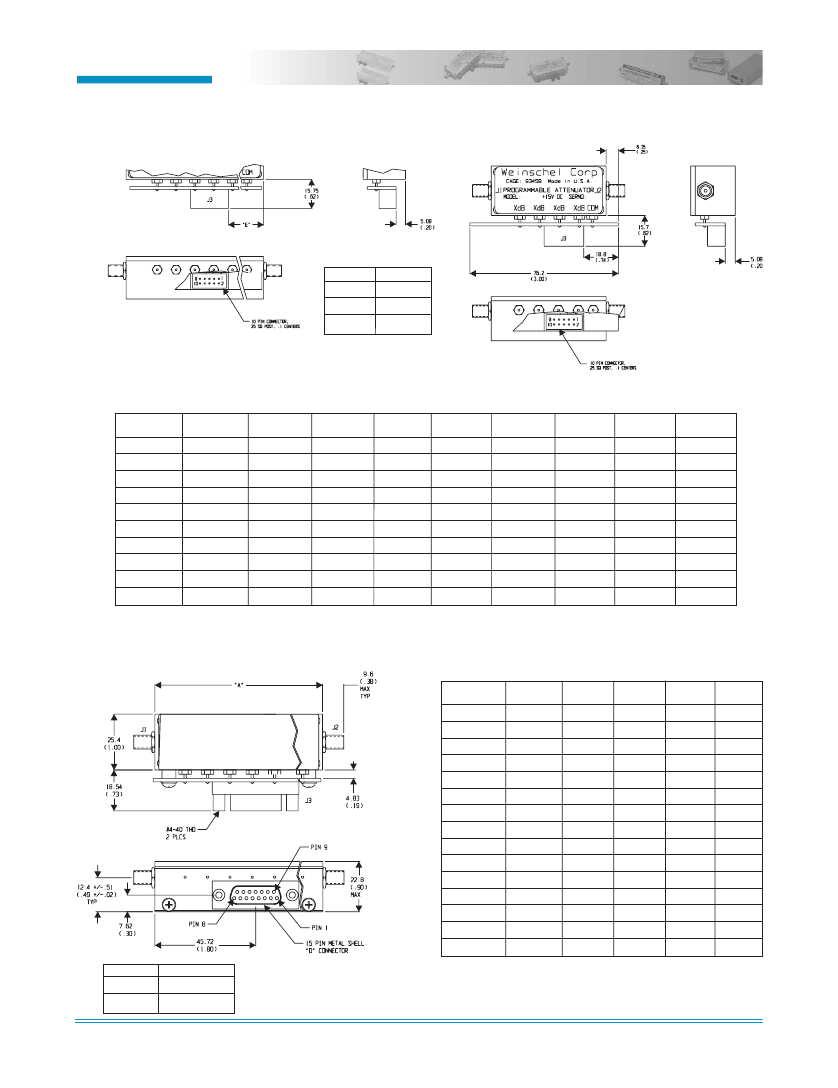

PHYSICAL DIMENSIONS:
Model No.
3200-X
3201-X
3205-X
3206-X
No. Cells
8
5/4
4
6
A
101.6 (4.0
76.2 (3.00)
58.9 (2.32)
81. 3+0.5
(3.20+0.02
B
7 EQ SPCS @ 10.16 (.40) = 71.1 (2.80)
4 EQ SPCS @ 10.16 (.40) = 40.64 (1.60)
3 EQ SPCS @ 10.16 (.40) = 30.5 (1.20)
5 EQ SPCS @ 10.16 (.40) = 50.8 (2.00)
C
88.9 (3.50)
63.5 (2.50)
46.2 (1.82)
75.18+0.12
(2.960+0.005)
D
95.2 (3.75)
69.8 (2.75)
52.6 (2.07)
75.18 (2.96)
NOTE:
All dimensions are given in mm (inches) and are maximum, unless otherwise specified.
5305 Spectrum Drive, Frederick, MD 21703-7362
!
TEL: 301-846-9222, 800-638-2048
!
Fax: 301-846-9116
web: www.weinschel.com
!
email: sales@weinschel.com
135
1/19/00
Weinschel
C O R P O R A T I O N

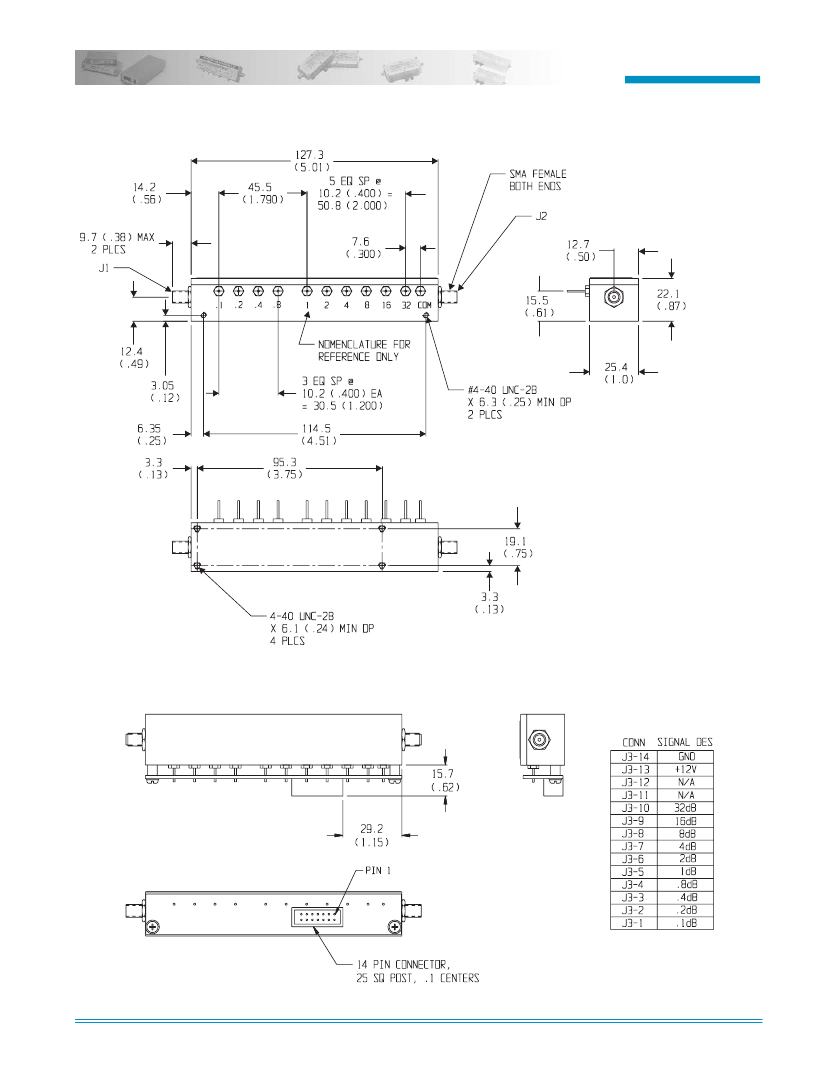

PHYSICAL DIMENSIONS:
