51763-31600000AA datasheet, PDF

51763-31600000AA: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle; CategoryThe connector The connector; File Size245KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

51763-31600000AA Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .086-.098
body width	0.47 inch
subject depth	0.82 inch
body length	4.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P16
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	6.95 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51763
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	6.35 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	2.224 N
Base Number Matches	1

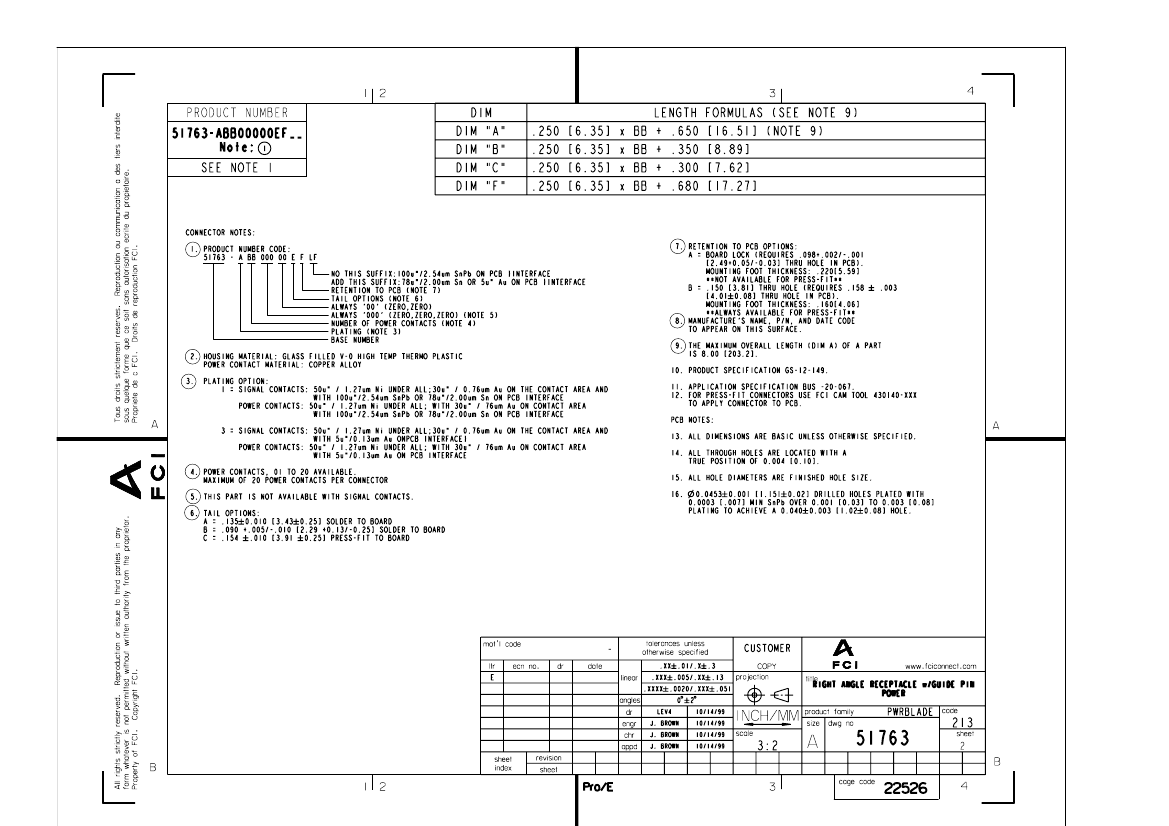

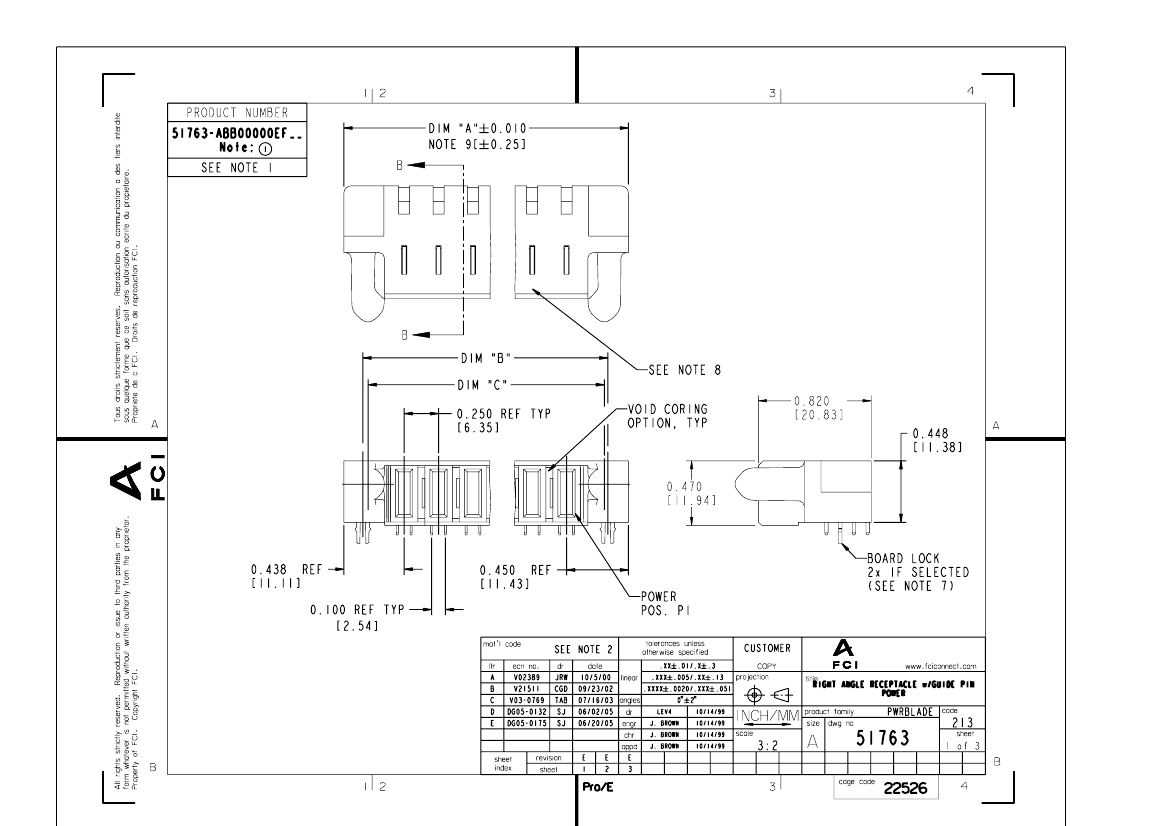

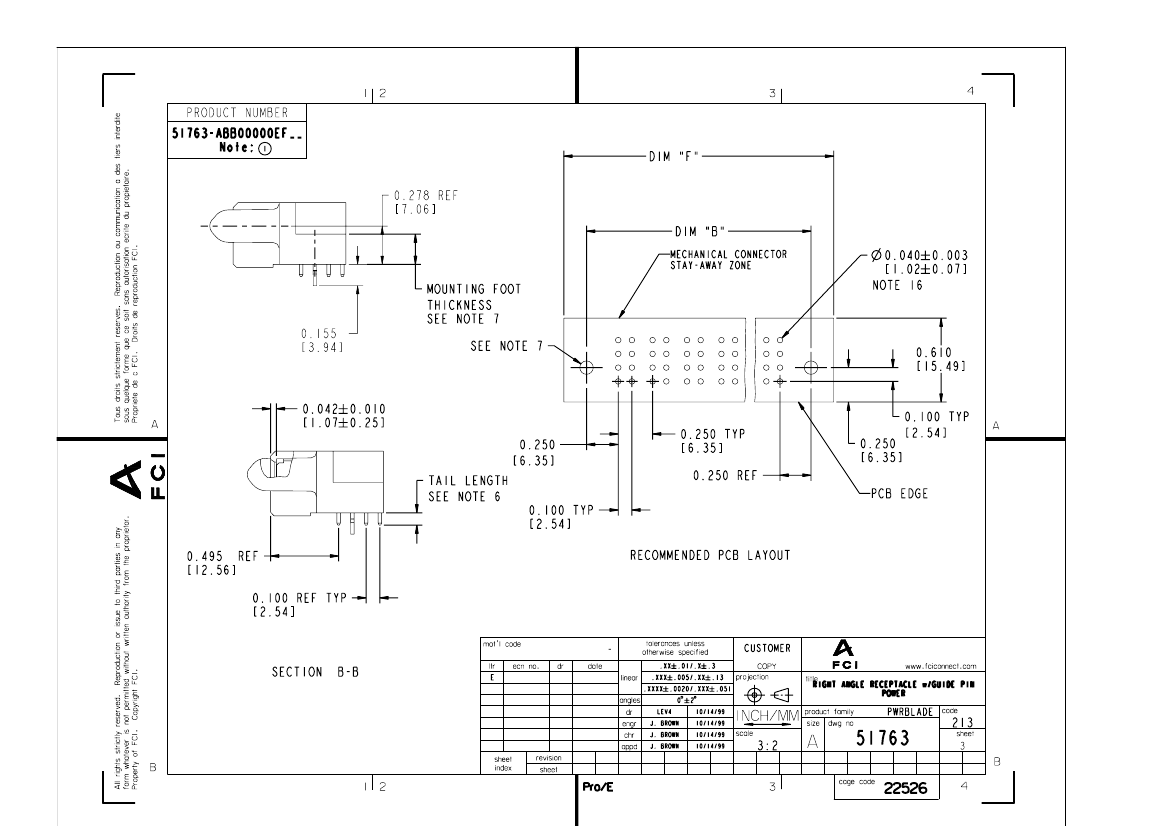

PDM: Rev:E

STATUS:

Released

Printed: Dec 20, 2010
