31-212-RFX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 31-212-RFX

31-212-RFX: DescriptionRF BNC Connector, Male, Cable Mount, Clamp Solder Terminal, Plug; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

31-212-RFX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-212-RFX	-	-	View	Buy Now

31-212-RFX Overview

RF BNC Connector, Male, Cable Mount, Clamp Solder Terminal, Plug

31-212-RFX Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG-59/U; RG-62/U, INSERTION LOSS MAX AT 3 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BNC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP SOLDER
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

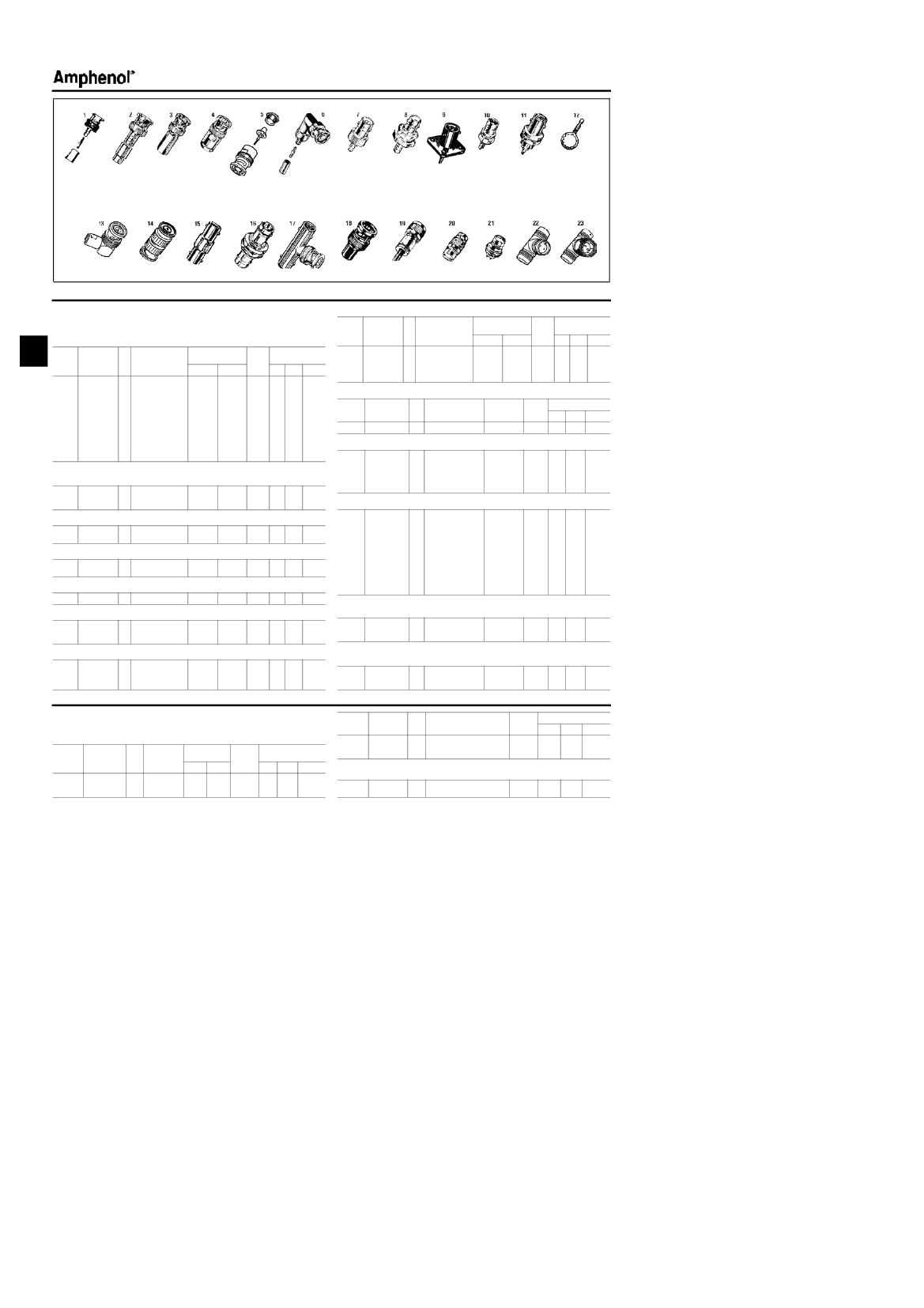

Download Datasheet

View All

Amphenol

Coaxial Connectors

Note:

These connectors meet or exceed military specification, but arenÕt on the RPL and are intended for commercial use only. Military specification numbers, where shown, are for reference only.

RFX

Commercial Coaxial Connectors

BNC Bulkhead Jacks Ñ Non-Captive Contacts

Stock

No.

713-9037

713-9009

713-9070

713-9075

713-9043

Mfr.Õs

Type

31-342-RFX

31-71011-RFX

31-318-RFX

31-245-RFX

31-71016-RFX

Fig.

RG/U

Cable

58, 141

59, 62

174, 188, 316

179, 187

Cable

Attachment

Outer

Crimp

Inner

Crimp

50 ohm

75 ohm

50 ohm

75 ohm

Imp.

2.56

2.52

3.31

3.36

3.17

EACH

1-24 25-99 100-249

2.14

2.12

2.68

2.58

2.57

1.83

1.80

2.28

2.19

2.18

Miniature bayonet-lock units.

Materials:

Body Ñ brass or diecast brass.

Plating:

Nickel.

Contacts:

Male Ñ brass, gold plated;

Female Ñ phosphor bronze, gold plated.

Insulator:

Derlin or Teflon (where noted).

Frequency:

50 ½ Ñ 0-4GHz, 750 ½ Ñ 0-1 GHz.

Stock

No.

713-9000

713-9004

713-9005

713-9007

713-9010

713-9006

713-9003

713-9011

713-9012

713-9020

713-9008

713-9015

713-9025

Mfr.Õs

Type

31-5558-RFX

31-71000-RFX

31-320-RFX

36650-3RFX

31-321-RFX

31-71008-RFX

31-71008-1RFX

68175-5RFX

68175-11RFX

31-242-RFX

31-71013-RFX

31-315-RFX

31-321-10RFX

Fig.

RG/U

Cable

6 (0.314" O.D.)

58, 141

Plenum 58

59, 62

59 (20 AWG ctr. cond.)

Plenum 59

179, 187

174, 188, 316

Belden 8281

Cable

Attachment

Outer

Crimp

Inner

Crimp

50 ohm

75 ohm

50 ohm

75 ohm

50 ohm

75 ohm

50 ohm

Imp.

3.01

2.49

1.54

1.30

1.48

1.40

1.49

1.72

2.10

1.80

1.92

1.87

EACH

1-24 25-99 100-249

2.28

1.98

1.22

1.09

1.17

1.11

1.18

1.17

1.36

1.63

1.43

1.53

1.48

1.83

1.68

1.04

.93

1.00

.95

1.01

1.00

1.17

1.37

1.22

1.29

1.26

BNC 3-Piece Crimp-Type Plugs

BNC Panel Receptacle

Stock

No.

Mfr.Õs

Type

Fig.

Description

0.125" holes (4)

Terminal

Type

Solder cup

Imp.

50 ohm

EACH

1-24

3.10

25-99

2.51

100-249

2.13

713-9062

31-203-RFX

Front Mount BNC Bulkhead Receptacles

713-9080

31-10-RFX

713-9085

31-221-RFX

713-9087

31-221-75RFX

713-9095

31-10152-RFX

Solder cup

grounding tab

0.125" max. panel

Solder cup

0.125" max. panel

Solder Cup

Lug for inside panel for

ground wire to circuit

Isolated from panel

50 ohm

75 ohm

2.25

1.44

1.26

.49

1.79

1.15

1.05

.39

1.51

.98

.90

.33

*20 AWG Center Cond.

BNC 2-Piece Single Crimp Plugs

713-9030

31-5557-RFX

713-9040

31-5556-RFX

713-9045

31-5560-RFX

58, 141, 142

59, 62

Plenum 59, 62

Crimp

Press fit

50 ohm

1.96 1.56

50 ohm

2.05 1.63

50 ohm

2.05 1.56

1.33

1.38

1.31

BNC Adapters

713-9100

713-9102

713-9104

713-9105

713-9110

31-9-RFX

31-218-RFX

31-218-75RFX

31-219-RFX

31-220G-RFX

Right angle jack-plug

Straight plug-plug

Straight jack-jack

Bulkhead pressurized

jack-jack

Bulkhead non-sealed

jack-jack

Bulkhead non-sealed

jack-jack

Bulkhead jack-jack

isolated from ground

Tee jack-plug-jack

50 ohm

75 ohm

50 ohm

75 ohm

50 ohm

4.22

2.64

3.34

3.36

3.46

3.50

3.10

2.59

3.84

3.40

2.14

2.71

2.72

2.81

2.84

2.51

2.11

3.11

2.89

1.82

2.30

2.31

2.38

2.41

2.13

1.78

2.64

BNC SureTwist

Plugs

713-9050

31-5137-RFX

713-9055

31-5136-RFX

SureTwist

50 ohm

1.80 1.43

50 ohm

1.80 1.43

1.22

BNC Clamp-Type Plugs

713-9060

31-2-RFX

713-9065

31-212-RFX

58, 141, 142

59, 62

Clamp

Solder

50 ohm

2.00 1.58

50 ohm

1.99 1.57

1.35

1.34

713-9115

31-220N-RFX

713-9117

31-220N-75RFX

713-9028

31-4803-RFX

713-9120

31-208-RFX

BNC Quicktrim

Plug

713-9002

31-4541-RFX

59, 62

Quicktrim

50 ohm

3.99 3.23

2.75

Right Angle Crimp Plugs Ñ Diecast Body

713-9034

31-335-RFX

713-9036

31-336-RFX

713-9031

31-316-RFX

58, 141

59, 62

174, 188, 316

50 ohm

3.76 3.13

50 ohm

4.41 3.57

50 ohm

5.65 4.71

2.57

3.04

4.04

BNC PCB Receptacles

Post terminal 4 legs. 0.433" base, 0.176" long post terminal, 0.037" dia.

713-9039

31-5329-51RFX*

713-9041

31-5329-52RFX

713-9042

31-5329-72RFX

*Silver plated. Gold plated.

50 ohm

75 ohm

1.66

1.82

2.27

1.34

1.47

1.84

1.14

1.25

1.56

BNC 3-Piece Crimp Jack

713-9068

713-9032

713-9033

713-9069

36800-RFX

31-327-RFX*

31-328-RFX*

31-71014-RFX

58, 141

59, 62

179, 187

Crimp

50 ohm

75 ohm

1.56

1.76

2.26

1.24

1.39

1.76

1.05

1.19

1.41

Resistor Terminated Male Cap

713-9097

46650-51RFX

713-9098

46650-75RFX

713-9099

46650-93RFX

50 ohm

75 ohm

93 ohm

2.15

2.19

2.08

1.71

1.74

1.65

1.45

1.49

1.40

*Captive contact, teflon insulation.

Twinaxial Connectors

Keyed 90¡ Twinax Connectors

Plug, Twin Male Contacts

Stock

No.

713-9130

Mfr.Õs

Type

82-5589-RFX

Fig.

RG/U

Cable

Belden 8227,

9207,

IBM 7362211

Cable

Attachment

Outer

Clamp

Inner

Solder

Crimp

IBM Ref.

No.

7362229

EACH

1-24

4.68

25-99

3.79

100-249

3.22

Stock

No.

713-9135

713-9140

Mfr.Õs

Type

82-5588-RFX

82-5590-RFX

Fig.

Description

Straight adapter jack-jack

Bulkhead receptacle front-mount

solder cup terminal

IBM Ref.

No.

7362230

7362179

EACH

1-24

5.12

7.08

25-99

4.27

5.74

100-249

3.66

4.86

Tee Adapters

713-9145

713-9150

82-5677-RFX

26850-RFX

Jack-jack-jack

Jack-plug-jack

10.11

11.28

8.34

9.40

7.08

7.98

448

ALLIED
