31-71004: DescriptionRF BNC Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size226KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-71004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-71004	-	-	View	Buy Now

31-71004 Overview

RF BNC Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle

31-71004 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	VSWR MAX AT 1GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BNC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	HERMETIC
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

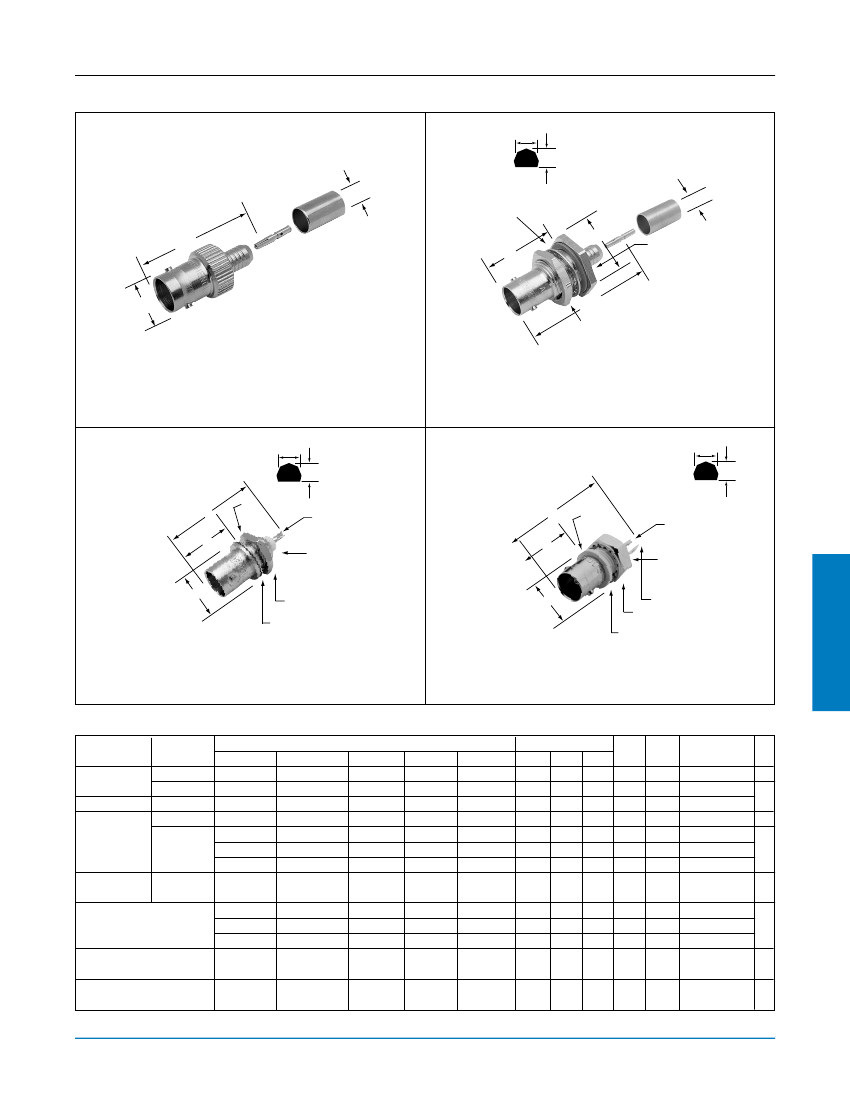

BNC 75 ohm

Jacks & Receptacles

Fig. 1

Fig. 2

.510(13.09)

.475(12.1)

Y

c•

e

max panel

a

s

d

b

Amphenol

®

c•

.687(17.4) across flats

b

a

s

.625(15.9) hex nut

75Ω BNC Crimp Jacks

31-70009

31-71014-RFX

Fig. 3

.390(9.9) dia.

.355(9.2)

U

a

d

e

max.

panel

solder

cup

.340(8.6)

across one flat

75Ω BNC Crimp Bulkhead Jacks

31-71011-RFX

31-70016

31-71016

31-70016-1000

31-71016-RFX

31-71011

Fig. 4

.375(9.5) dia.

.342(8.7)

Z

a

d

e

max.

panel

solder

cup

.342(8.7)

across one flat

BNC

b

.500(12.7)

hex nut

lock washer

b

75Ω BNC Receptacles (J) Front Mount

31-221-75RFX

31-70018

31-71004

ground tab

.500(12.7)

hex nut

lock washer

75Ω BNC Receptacle (J) Isolated from Panel

with Solder Cup & Ground Tab

31-10-75

31-10-75 RFXG2

75Ω BNC JACKS & RECEPTACLES

Cable RG/U

59, Belden

8241, 8263

59, 62, 140, 210

179, 187

Connector

Type

Jack

Bulkh. Jack

Jack

Bulkh. Jack

Dbl. Br. 179

ATT 19224-L2

a

s

1.18(30.0)

1.41(35.7)

1.38(35.1)

1.37(35.0)

1.48(37.7)

1.41(35.7)

1.43(36.4)

Bulkh. Jack

1.48(37.7)

1.06(27.0)

1.05(26.7)

Bulkhead Receptacle (J)

Frnt Mt, Iso. from Panel

Bulkhead Receptacle (J)

Frnt Mt, Iso. from Panel

1.19(30.2)

Dimensions, inches (millimeters)

b

c

q

d

.510(12.9)

.261(6.6)

—

.795(20.2)dia

.687(17.5)

.435(11.0)

.687(17.4)hex

.795(20.2)dia

.687(17.4)hex

.490(12.4)

.500(12.7)

.490(12.4)

.261(6.6)

.260(6.6)

.106(2.7)

.120(3.0)

.106(2.7)

.175(4.4)

—

.812(20.6)

.710(18.0)

—

.812(20.6)

.710(18.0)

.812(20.6)

.472(12.0)

.475(12.1)

.472(12.0)

e

—

.250(6.4)

.138(3.5)

—

.250(6.4)

.138(3.5)

.250(6.4)

.125(3.2)

.250(6.4)

.138(3.5)

.187(4.7)

CAI

C31

C32

C31

C32

C31

—

Notes

Plt.

Ins.

P17

D1

P15

P7

P17

P15

P7

P15

P7

P15

P7

D1

D23

D1

D23

D1

D23

D12

Mtg.

Hole

—

Y

—

Y

U

Z

75Ω

Type

T1

T2

T1

T2

T1

T2

T1

T2

Amphenol

Number

31-70009

31-71011

31-71011-RFX

31-70016

31-71016

31-71016-RFX

31-70016-1000

2

31-71004

31-70018

31-221-75RFX

31-10-75

4

3

2

Fig.

1

2

31-71014-RFX

1

v

Bulkhead Receptacle (J)

Front Mount

v

31-10-75-RFXG2

4

s

Includes outer ferrule • accommodates cable diameter

v

Distributor Stocked

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

127

31-71004 Related Products

	31-71004	31-10-75-RFXG2
Description	RF BNC Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle,
Reach Compliance Code	unknown	unknown
Other features	VSWR MAX AT 1GHZ	VSWR MAX AT 1GHZ
Body/casing type	RECEPTACLE	RECEPTACLE
Characteristic impedance	75 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	4 GHz	4 GHz
Options	HERMETIC	HERMETIC
Panel mounting	YES	YES
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.25	1.25
Base Number Matches	1	1
