31-4774-3: DescriptionRF Triaxial-BNC Connector, 1 Contact(s), Male, Cable Mount, Clamp Terminal, Locking, Plug,; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-4774-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-4774-3	-	-	View	Buy Now

31-4774-3 Overview

RF Triaxial-BNC Connector, 1 Contact(s), Male, Cable Mount, Clamp Terminal, Locking, Plug,

31-4774-3 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG 307A/U
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact point gender	MALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BNC
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	CLAMP
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

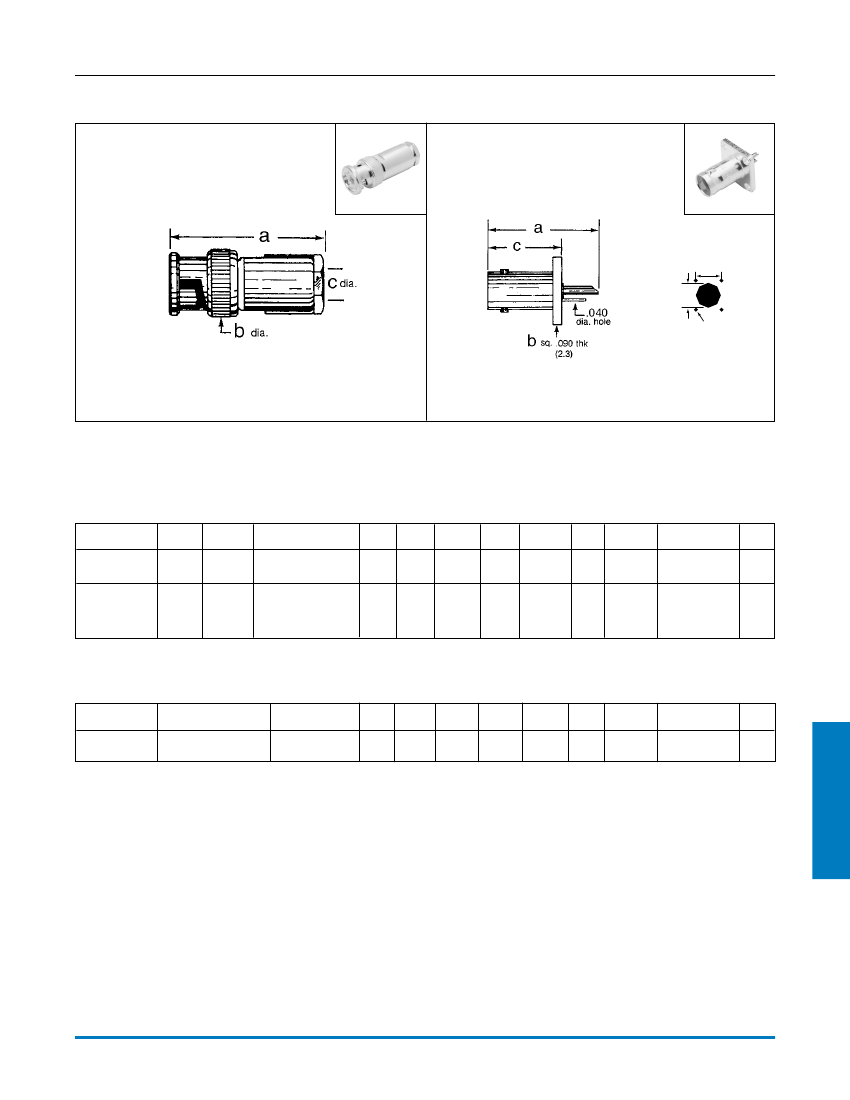

Triax

BNC, 180˚ Polarity

Fig. 1

Fig. 2

Amphenol

®

.500(12.7)

.453(11.5)

L

.125(3.2) dia. 4 holes

Plug

31-4774-3

31-2743-11

Panel Receptacle

31-2676-1

PLUGS - MALE CONTACTS

Cable

RG-307A/U

75Ω Triax

50Ω Triax: Times

TRF-58, Belden

9222, 72Ω Triax

Amphenol 621-106

Config

Plug

Term

two braid

clamp

two braid

clamp

Construction

a

Mates with two

bayonet studs180˚

Mates with two

bayonet studs180˚

1.37

(34.9)

1.37

(34.9)

b

0.562

(14.3)

0.562

(14.3)

c Dia

0.298

(7.6)

0.257

(6.5)

MTG

Hole

—

CAI

C12

Plt.

P33

Ins.

D1

Amphenol

Number

31-4774-3

Fig

1

Plug

—

C13

P15

D1

31-2743-11

1

RECEPTACLES

Config

Panel Receptacle

Term

Solder cup & ground tab

Construction

In. (mm)

Two bayonet studs

180˚ apart

a

1.08

(27.4)

b

.687

(17.5)

c Dia

.712

(18.1)

MTG

Hole

L

CAI

—

Plt.

P33

Ins.

D1

Amphenol

Number

31-2676-1

Fig

Triax

2

q

accommodates cable diameter

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

179
