933672-022 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 933672-022

933672-022: Description4 CONTACT(S), MALE, CIRCULAR CONNECTOR, PLUG,; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerBELDEN

Download Datasheet Parametric View All

933672-022 Overview

4 CONTACT(S), MALE, CIRCULAR CONNECTOR, PLUG,

933672-022 Parametric

Parameter Name	Attribute value
Maker	BELDEN
Reach Compliance Code	compliant
Other features	STANDARD: IEC 60947-5-2
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	YES
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

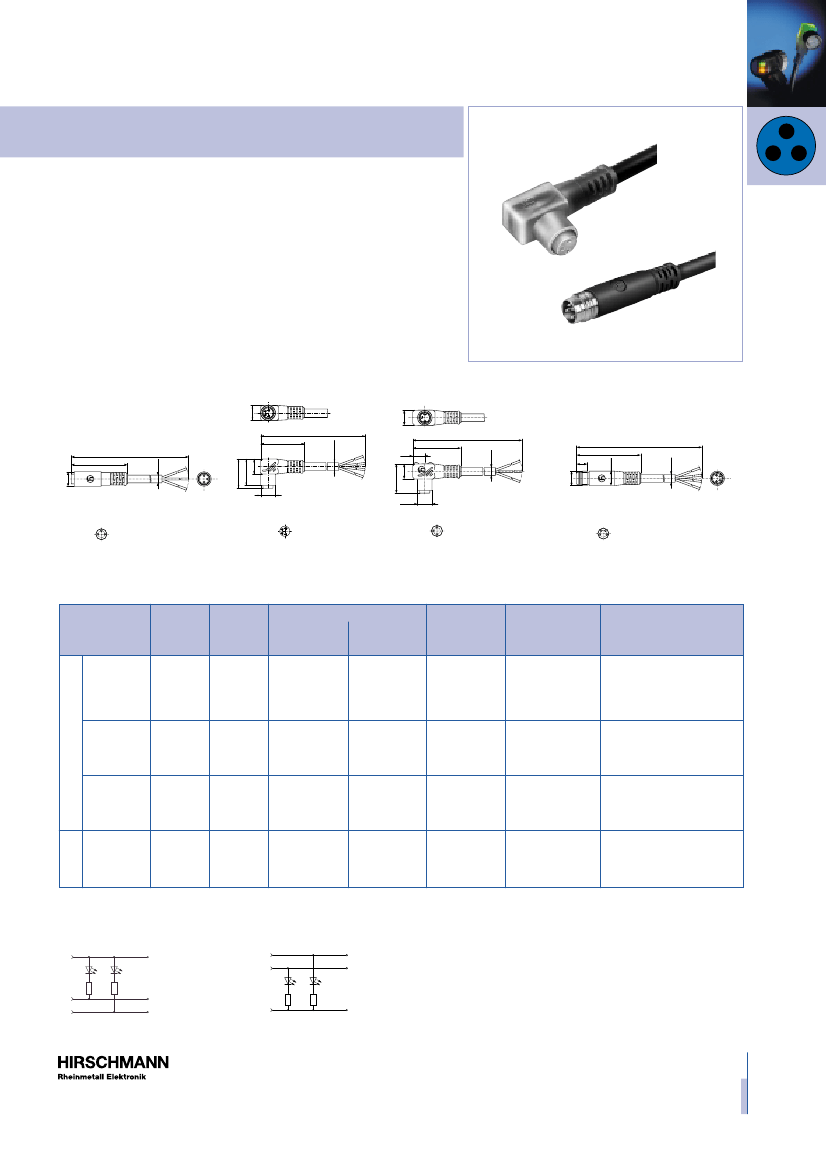

IEC 60947-5-2

Cable sockets and plugs with molded-on lead,

snap locking

Product features

connection of

• inductive or capacitive

proximity switches

• limit switch connection etc.

Variations

• cable sockets without LED

(housing black, cable black)

• cable sockets with LED

(housing transparent, cable

black)

• cable plug with snap locking

or screw locking

Basic data

• protection class IP 67

(IEC 60529)

• high flexible lead

• conductor color identification

complies with European

standards (EN 50044)

Further information

see technical data in the catalog

Circular connectors

for automation technique

DS 280 490-450.

For tailor-made systems,

see page 6

E Series M8

24.5

ø 4.5

ø 8.1

6.9

16.5

8.5

ø 4.5

M8 x 1

ø 4.5

ø 8.1

16.5

8.5

ø 8.1

31.5

ø 4.5

ø 8.1

ELKA-K…

ELWIKA-K…

ELWIKA-K… NS/C

PS/A

socket

angled

ELWIKA-K

933 665-021

933 665-022

933 657-041

933 657-042

933 667-021

933 667-022

933 659-041

933 659-042

933 668-021

933 668-022

933 660-041

933 660-042

933 666-021

933 666-022

933 658-041

933 658-042

plug

straight

ELST-K

933 671-021

933 671-022

933 663-041

933 663-042

operating

voltage

ELST-K…

poles

cable

material

length

straight

ELKA-K

componentry

(cable sockets with LED)

3308

PUR

PVC

933 669-021

933 669-022

933 661-041

933 661-042

UC 60 V (

)

3308 NS/C

PUR

PVC

DC 10...30 V (=)

NPN

normally open

LED green / LED yellow

PNP

normally open

LED green / LED yellow

3308 PS/A

PUR

PVC

DC 10...30 V (=)

4408

PUR

PVC

933 670-021

933 670-022

933 662-041

933 662-042

933 672-021

933 672-022

933 664-041

933 664-042

UC 60 V (

)

Example for placing orders:

933 668-021 ELWIKA-K 3308 PS/A PUR 025 2 m

Componentries (cable sockets with LED)

yellow

green

yellow

black

– blue

green

– blue

+ brown

black

NS/C

PS/A

Automation Technology
