DMW24S15-1000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DMW24S15-1000

DMW24S15-1000: DescriptionSingle and Dual Output 15 Watt DC/DC Converter 4:1 Ultra Wide Input Voltage Range; CategoryPower/power management The power supply circuit; File Size233KB，9 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Parametric View All

DMW24S15-1000 Overview

Single and Dual Output 15 Watt DC/DC Converter 4:1 Ultra Wide Input Voltage Range

DMW24S15-1000 Parametric

Parameter Name	Attribute value
Maker	Wall Industries,Inc.
package instruction	,
Reach Compliance Code	compli
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE

Preview

Download Datasheet

View All

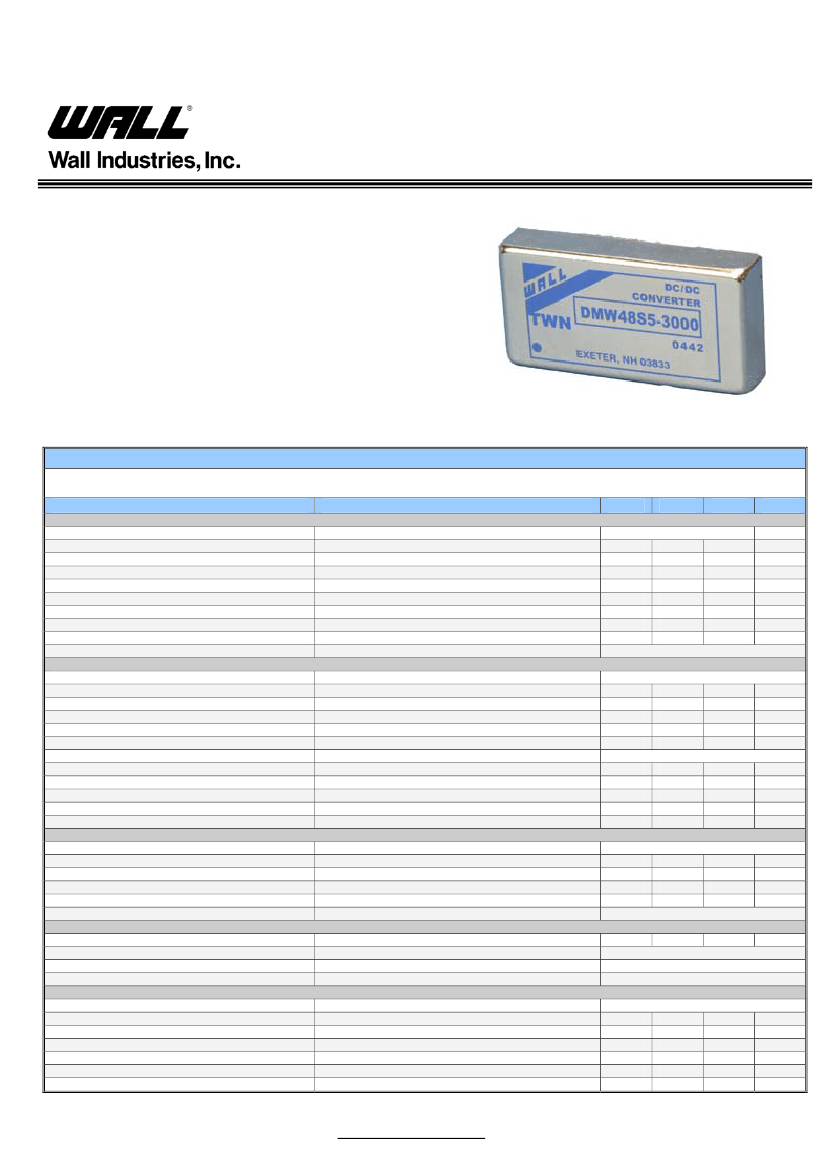

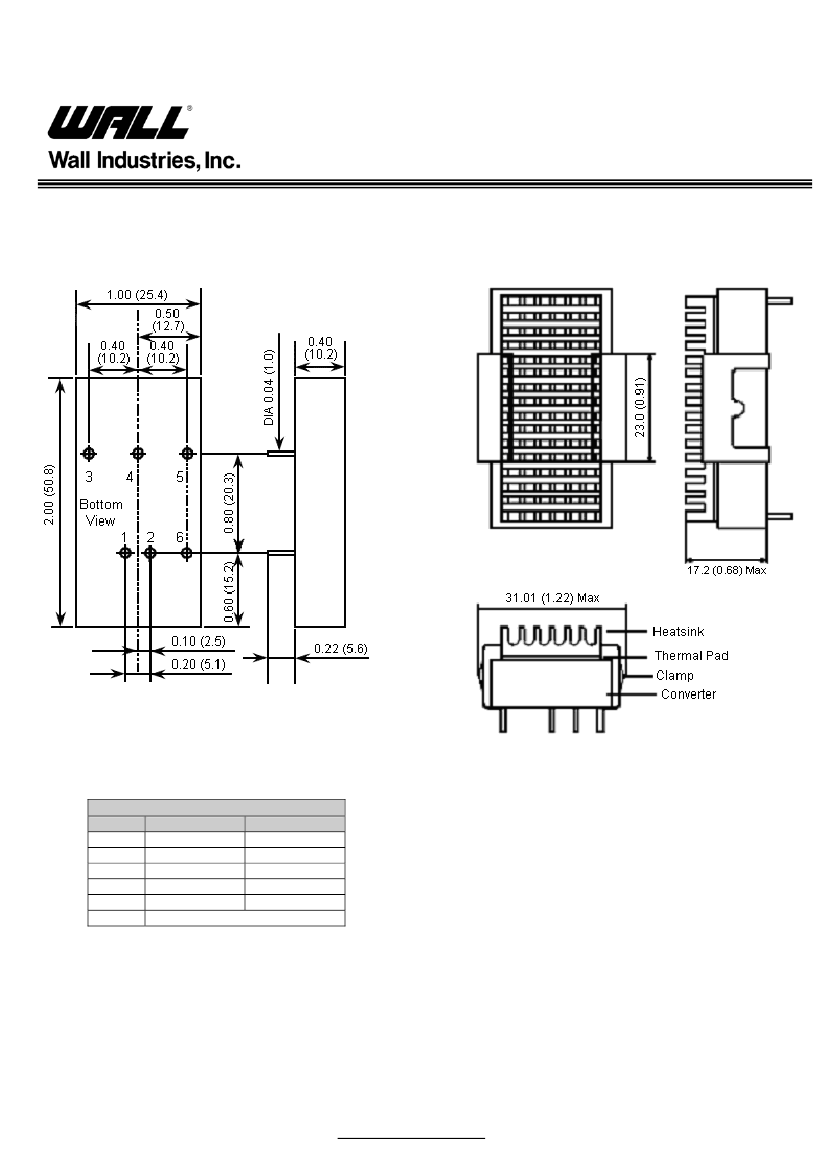

DMW Ultra Wide Series

Single and Dual Output

15 Watt DC/DC Converter

4:1 Ultra Wide Input Voltage Range

FEATURES

●

1500VDC Isolation

●

Efficiency up to 86%

●

Six-Sided Shielding

●

MTBF>700,000 Hours

●

Remote On/Off Control

●

UL1950 Safety Approval

●

Internal SMT Construction

●

4:1 Ultra Wide Input Range

●

UL 94V-0 Package Material

●

Complies with EN55022 Class A

SPECIFICATIONS:

DMW Ultra Wide Series

All specifications are based on 25

C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.

We reserve the right to change specifications based on technological advances.

SPECIFICATION

TEST CONDITIONS

Min

Nom

Max

INPUT (V

)

Operating Voltage Range

Start Voltage (24V input models)

Start Voltage (48V input models)

Under Voltage Shutdown (24V input models)

Under Voltage Shutdown (48V input models)

Reverse Polarity Input Current

Short Circuit Input Power

Input Surge Voltage (1000ms) (24V input models)

Input Surge Voltage (1000ms) (48V input models)

Input Filter

OUTPUT (V

)

Output Voltage Range

Output Voltage Accuracy

Output Voltage Balance

Load Regulation

Line Regulation

Output Power

Output Current Range

Ripple & Noise (peak to peak)

Ripple & Noise

Transient Recovery Time

Transient Response Deviation

REMOTE ON/OFF

Supply On

Supply Off

Standby Input Current

Control Input Current (On)

Control Input Current (Off)

Control Common

PROTECTION

Over Power Protection

Short Circuit Protection

Input Fuse Recommendation (24V input models)

Input Fuse Recommendation (48V input models)

GENERAL

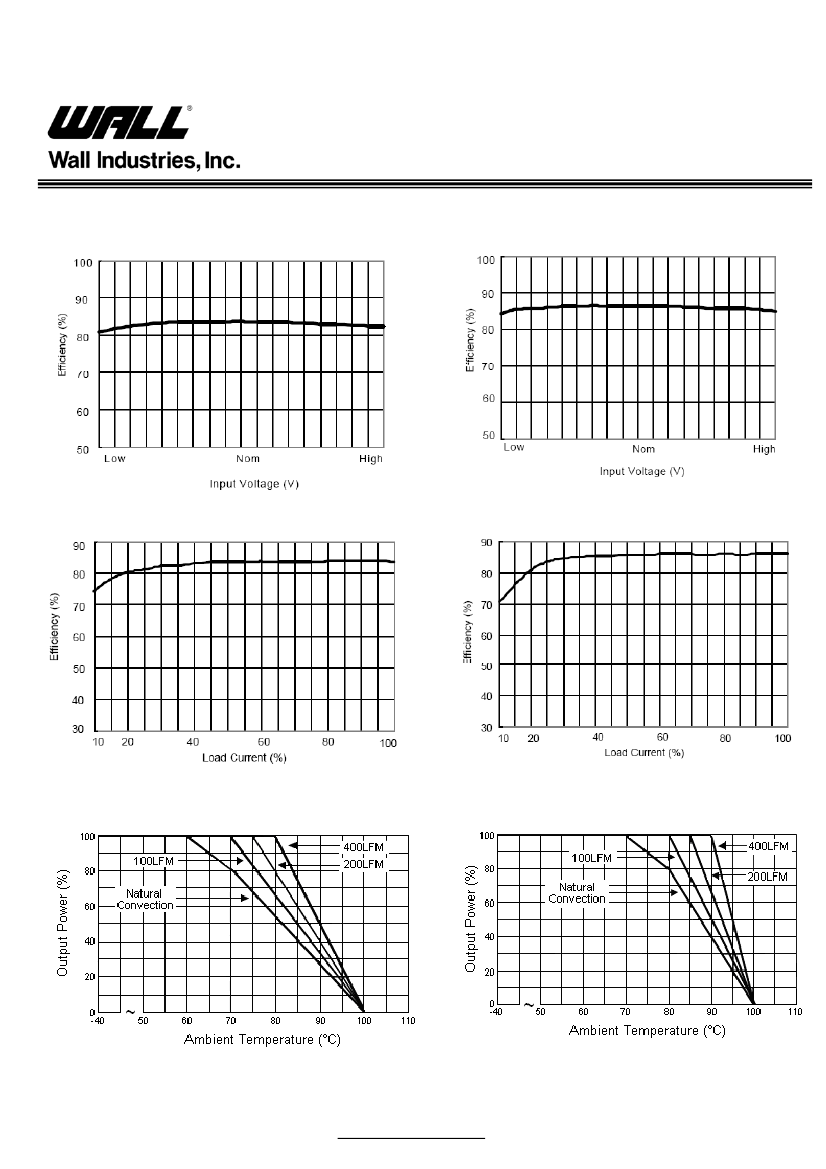

Efficiency

Switching Frequency

Isolation Voltage Rated

Isolation Voltage Test

Isolation Resistance

Isolation Capacitance

Internal Power Dissipation

-0.7

9-36, 18-75

8.5

3500

100

Pi Filter

See Rating Chart

±1.0

±2.0

±0.5

±2.0

±0.5

±1.0

±0.1

±0.5

See Rating Chart

100

300

500

±2

±4

8.5

Unit

VDC

Dual Output, Balanced Loads

Io = 10% to 100%

Vin = min. to max.

20MHz

Over Line, Load, and Temperature

25% load step change

pk-pk

mVrms

µs

Vin – RC = 5.0V

Vin – RC = 0V

2.5 to 5.5VDC or Open Circuit

-0.7

0.8

VDC

-1

Referenced to negative input

120

Continuous

2500mA Slow-Blow Type

1250mA Slow-Blow Type

290

1500

1650

1000

See Rating Chart

330

400

KHz

VDC

MΩ

60 seconds

Flash Test for 1 second

500VDC

100KHz, 1V

1200

1500

5,000

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797

DMW Ultra Wide Series

Single and Dual Output

15 Watt DC/DC Converter

4:1 Ultra Wide Input Voltage Range

DESIGN & FEATURE CONSIDERATONS

Remote On/Off

Positive logic remote on/off turns the module on during a logic high voltage on the remote on/off pin, and

off during a logic low. To turn the power module on and off, the user must supply a switch to control the

voltage between the on/off terminal and the -Vin terminal. The switch can be an open collector or

equivalent.

A logic low is -0.7V to 0.8V.

A logic high is 2.5V to 5.5V.

The maximum sink current at on/off terminal during a logic low is -1mA. The maximum allowable

leakage current of the switch at on/off terminal (2.5 to 5.5V) is 50uA.

Over Current Protection

To provide protection in a fault (output overload) condition, the unit is equipped with internal current

limiting circuitry and can endure current limiting for an unlimited duration. At the point of current-limit

inception, the unit shifts from voltage control to current control. The unit operates normally once the

output current is brought back into its specified range.

Input Source Impedance

The power module should be connected to a low ac-impedance input source. Highly inductive source

impedances can affect the stability of the power module. In applications where power is supplied over

long lines and output loading is high, it may be necessary to use a capacitor at the input to ensure

startup. Capacitor mounted close to the power module helps ensure stability of the unit, it is

recommended to use a good quality low Equivalent Series Resistance (ESR < 1.0Ω at 100 KHz)

capacitor of a 10uF for the 24V and 48V input devices.

Maximum Capacitive Load

The DMW Series has a limitation of maximum connected capacitance at the output. The power module

may be operated in current limiting mode during start-up, affecting the ramp-up and the startup time.

For optimum performance we recommend 220uF maximum capacitive load for dual outputs and 470uF

capacitive load for single outputs. The maximum capacitance can be found in the Output Voltage /

Current Rating Chart.

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797
