DMT6S33K-F: DescriptionCAPACITOR, FILM/FOIL, POLYESTER, 630 V, 0.22 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size187KB，3 Pages; ManufacturerETC

Download Datasheet Parametric View All

DMT6S33K-F Overview

CAPACITOR, FILM/FOIL, POLYESTER, 630 V, 0.22 uF, THROUGH HOLE MOUNT

DMT6S33K-F Parametric

Parameter Name	Attribute value
negative deviation	10 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
positive deviation	10 %
Rated DC voltage urdc	630 V
Processing package description	RADIAL LEADED, ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	FILM CAPACITOR
capacitance	0.2200 µF
dielectric materials	POLYESTER
jesd_609_code	e3
Manufacturer Series	DMT
Installation features	THROUGH HOLE MOUNT
packaging shape	RECTANGULAR PACKAGE
Package Size	Radial
Rated AC voltage	250 V
series	DMT
terminal coating	TIN
Terminal spacing	32.9 mm
Terminal shape	WIRE
heigh	28.38 mm
length	36.7 mm
width	16 mm
dditional_feature	RATED AC VOLTAGE (V): 250

Preview

Download Datasheet

View All

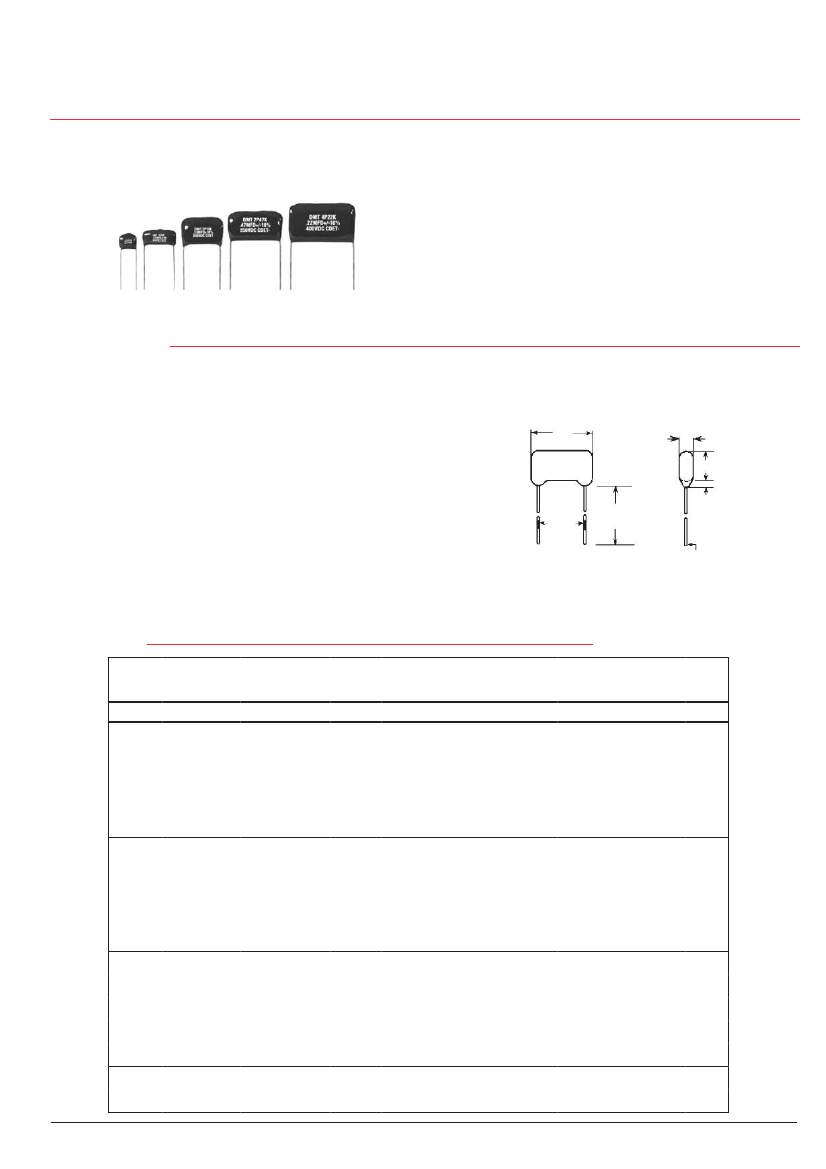

Type DMT,

Polyester Film Capacitors

Film/Foil

Radial Leads

General Purpose, High Peak Currents,

High Insulation Resistance

Type DMT

radial-leaded, polyester film/foil

noninductively wound ﬁlm capacitors feature

compact size and moisture-resistive epoxy

coating. High insulation resistance and low

dissipation factor,

Type DMT

is an ideal choice

for most applications, especially with high peak

currents.

Speciﬁcations

Voltage Range:

100-600 Vdc (65-250 Vac, 60 Hz)

Capacitance Range:

.001-.68 µF

Capacitance Tolerance:

±10% (K) standard

*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C

±5% (J) optional

Operating Temperature Range:

-55 °C to 125 °C*

MAX.

.984 MIN.

(25)

.0937 MAX.

Dielectric Strength:

250% (1 minute)

Dissipation Factor:

1% Max. (25 °C, 1 kHz)

Insulation Resistance:

30,000 M

Ω

x µF

100,000 M

Ω

Min.

Life Test:

500 Hours at 85 °C at 125% Rated

Voltage

±.050

TINNED COPPER-CLAD

STEEL LEADS

NOTE:

Other capacitance values, sizes and performance speciﬁcations are

available. Contact us.

Ratings

Cap.

(µF)

Catalog

Part Number

Inches

(mm)

Inches

(mm)

Inches

(mm)

Inches

(mm)

100 Vdc (65 Vac)

0.0010 DMT1D1K-F

0.0015 DMT1D15K-F

0.0022 DMT1D22K-F

0.0033 DMT1D33K-F

0.0047 DMT1D47K-F

0.0068 DMT1D68K-F

0.0100 DMT1S1K-F

0.0150 DMT1S15K-F

0.0220 DMT1S22K-F

0.0330 DMT1S33K-F

0.0470 DMT1S47K-F

0.0680 DMT1S68K-F

0.1000 DMT1P1K-F

0.1500 DMT1P15K-F

0.2200 DMT1P22K-F

0.3300 DMT1P33K-F

0.4700 DMT1P47K-F

0.197

0.200

0.210

0.220

0.256

0.250

0.260

0.275

0.290

0.350

0.360

0.390

0.420

(5.0)

(5.1)

(5.3)

(5.6)

(6.5)

(6.3)

(6.6)

(7.0)

(7.4)

(8.9)

(9.1)

(9.9)

(10.7)

0.354

0.370

0.390

0.350

0.433

0.460

0.445

0.490

0.520

0.560

0.600

(9.0)

(9.4)

(9.9)

(8.9)

(11.0)

(11.7)

(11.3)

(12.4)

(13.2)

(14.2)

(15.2)

0.512

0.560

0.682

0.820

0.942

1.080

(13.0)

(14.2)

(17.3)

(20.8)

(23.9)

(27.4)

0.394

0.400

0.420

0.545

0.670

0.795

0.920

(10.0)

(10.2)

(10.7)

(13.8)

(17.0)

(20.2)

(23.4)

RoHS Compliant

Inches

(mm)

dV/dt

V/μs

0.024

0.032

(0.6)

(0.8)

4550

3300

2100

1600

1050

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02740

•

Phone: (508)996-8561

•

Fax: (508)996-3830 www.cde.com
