31369116 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 31369116

31369116: DescriptionBoard Connector,; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerMETZ CONNECT; Websitehttp://www.metz-connect.com/; Environmental Compliance

Download Datasheet Parametric View All

31369116 Overview

Board Connector,

31369116 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Options	GENERAL PURPOSE
Base Number Matches	1

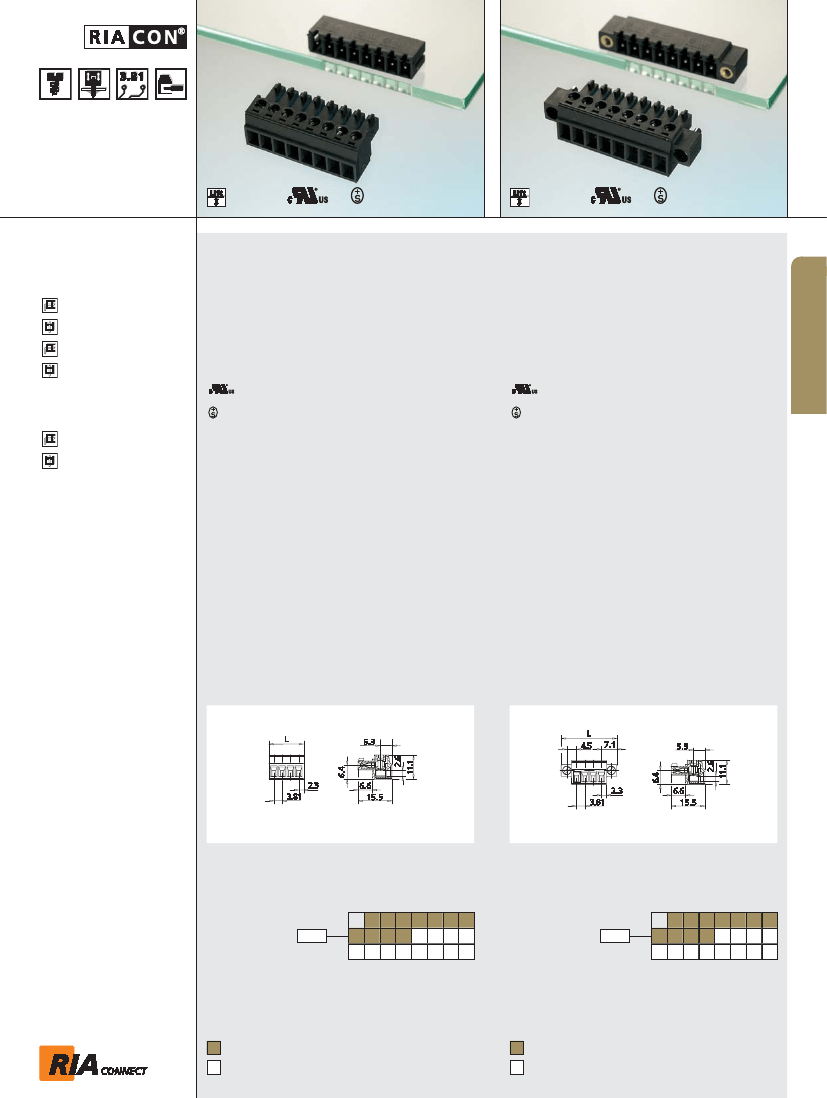

Preview

Download Datasheet

View All

Headers

Type 369

Type 190

Type 191

Type 382

Type 383

page 124

page 122

page 124

page 122

Type 369

Screw type terminal block, pluggable, centerline

3.81 mm / 0.150 inches, wire entry parallel to plug

direction, lift system, contact system with integrated

wire protection

Type 379

Screw type terminal block, pluggable, centerline

3.81 mm / 0.150 inches, wire entry parallel to plug

direction, lift system, contact system with integrated

wire protection, with mounting flange

Technical Data

V / A / AWG

300 / 8 / 28 - 16

Technical Data

V / A / AWG

300 / 8 / 28 - 16

Type 379

Type 392

Type 393

page 125

page 123

0.08 - 1.5 mm² 160 V / 2.5 kV / 8 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 3.5 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

250

630

Rated test voltage

2.5

Protection category according

to IEC 529

IP20

Tightening torque UL

2.2 lb-in max.

Min. insul. strip length

7 mm

Pole size

2 - 24

Color

black

0.08 - 1.5 mm² 160 V / 2.5 kV / 8 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 3.5 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

250

630

Rated test voltage

2.5

Protection category according

to IEC 529

IP20

Tightening torque UL

2.2 lb-in max.

Min. insul. strip length

7 mm

Pole size

2 - 24

Color

black

Dimensions in mm

1 mm = 0.0394 in.

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 4.6 mm / 0.181 inches

L = (pole size - 1) x centerline + 14.2 mm / 0.559 inches

Part numbers (P/N)

Type 369

centerline 3.81 mm / 0.150 inches

(information: page 56)

Complete the part number by

adding the pole size.

Part numbers (P/N)

Type 379

(information: page 56)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

centerline 3.81 mm / 0.150 inches

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

P/N

313691

P/N

313791

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
