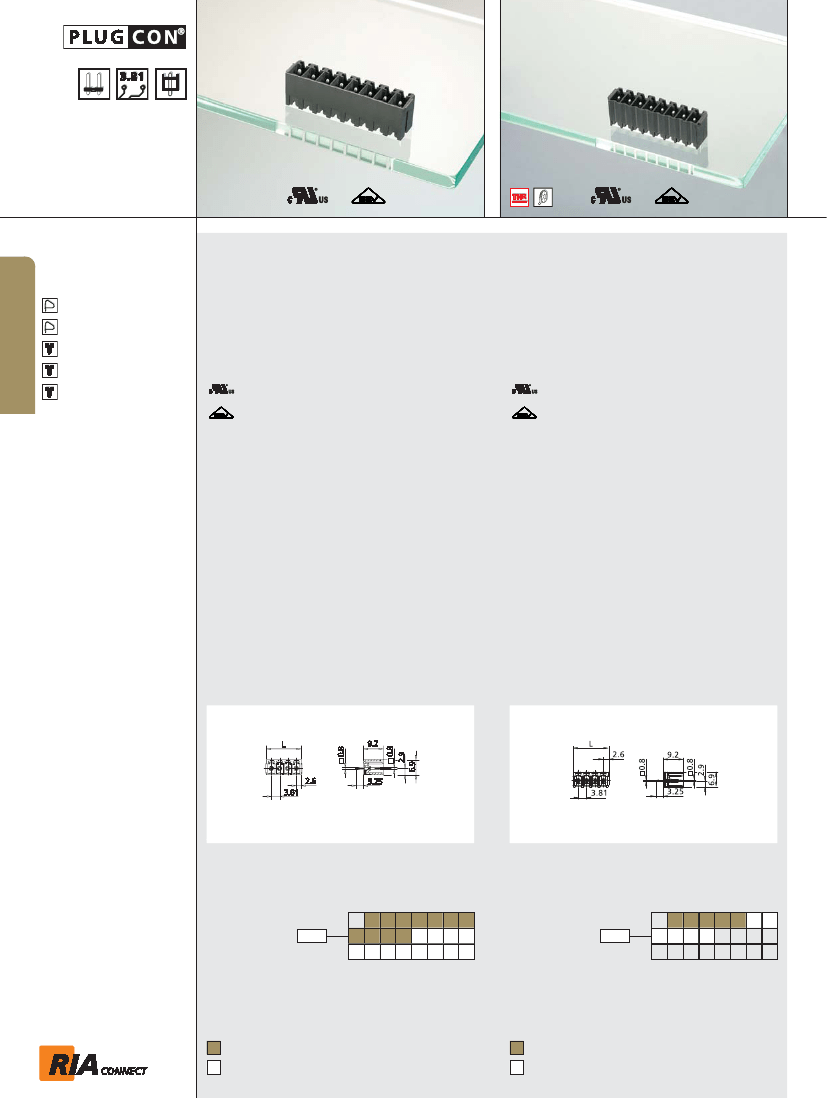

122
Terminal blocks
A
Type 383
Header, centerline 3.81 mm / 0.150 inches, vertical
mounting, square contact pins 0.8 mm / 0.031 inches,
closed ends, codable
Type 191
Header, centerline 3.81 mm / 0.150 inches, vertical
mounting, designed for THR, optional Tape on Reel
packaging for automated processing, square contact
pins 0.8 mm / 0.031 inches, closed ends, codable
to
Type 383
and
Type 191
ASP044
ASP064
Type 113
Type 114
Type 369
page 45
page 45
page 88
page 88
page 87
Technical Data
V/A
300 / 8
130 V / 2.5 kV / 11 A
Technical Data
V/A
300 / 8
130 V / 2.5 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.01 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
0.8 x 0.8 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.25 mm
Pole size
2 - 12
Color
black
Accessories
for
Type 383
and
Type 191
Coding set
720293
page 204
Note for Type 191
Packaging for automated
processing is available on
demand. Please do not hesi-
tate to contact us.
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.01 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
0.8 x 0.8 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.25 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5.2 mm / 0.205 inches
L = (pole size - 1) x centerline + 5.2 mm / 0.205 inches
Part numbers (P/N)
Type 383
centerline 3.81 mm / 0.150 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 191
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 3.81 mm / 0.150 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
313831
P/N
311911
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
