3073F: DescriptionRF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

3073F Overview

RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3073F Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX(PEAK)=5000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

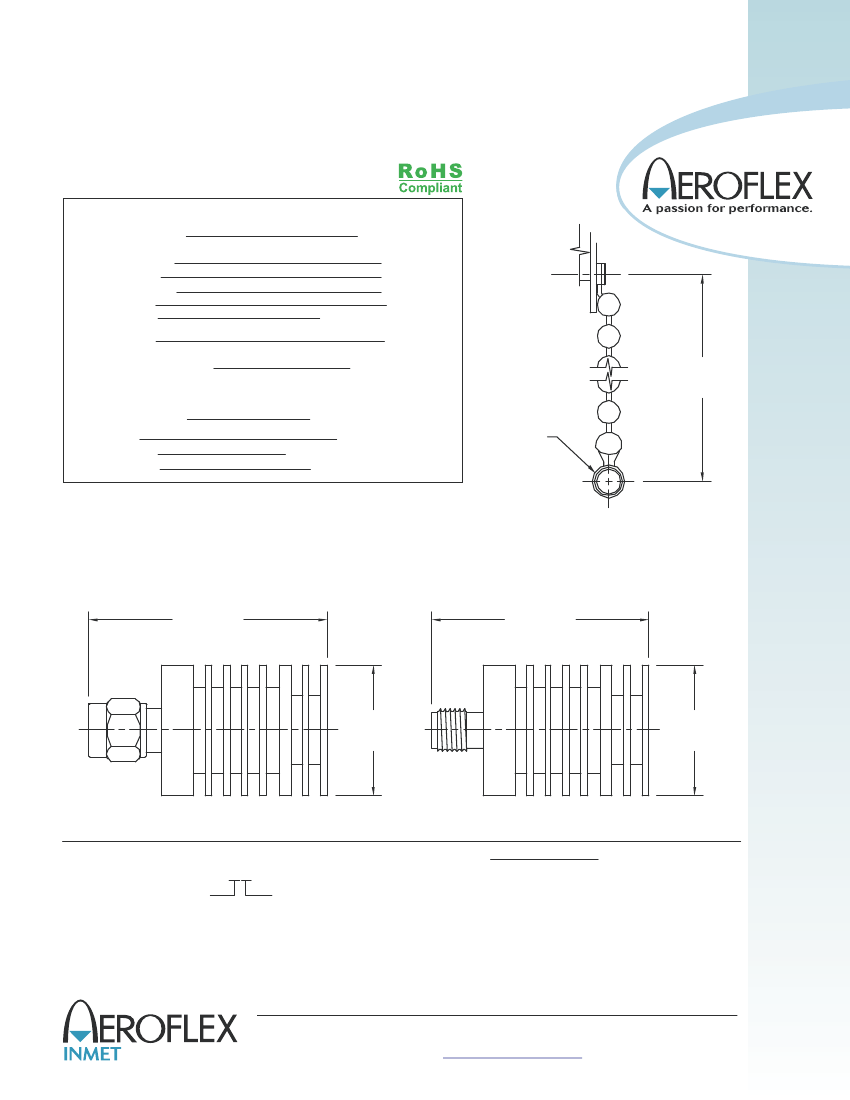

TERMINATIONS

SMA, DC - 1

2.4 GHz, 5 Watts

SPECIFICATIONS:

Models: 3073M, 3073F, 3073MC, 3073FC

Electrical:

Frequency Range

VSWR

DC - 4 GHz

4 - 8 GHz

8 - 1 GHz

2.4

Impedance

Input Power

Peak Power

Operating Temp Range

DC - 1 GHz

2.4

1. 0:1 Max.

1

1. 5:1 Max.

1

1.20:1 Max.

50 Ohms

5 Watts Avg. @ +25°C

Derated Linearly to 1 Watt @ +1

o

C

25

5 kW Max.

(5uSec Pulse, .05% Duty Cycle)

-65°C to +125°C

3.5 [89] Long

Bead Chain

Mechanical:

SMA Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Anodized Aluminum

Gold Plated Beryllium Copper

Passivated Stainless Steel

Housing

Conductors

Bead Chain

Ø.13[3.3]

Thru

CHAIN DETAIL

Model Number:

3073M

SMA Male Connector

Model Number:

3073F

SMA Female Connector

1.38 ±.05

[35.1 ±1.3]

1.25 ±.05

[31.8 ±1.3]

Ø.75

[19.0]

Ø.75

[19.0]

HOW TO ORDER:

Model Number:

Ordering Examples:

3073XY

Style

= No Chain

C = Chain Included

Connector Configuration

M = Male

F = Female

Model Number:

3073MC

DC - 1 GHz; SMA Male; Chain Included

2.4

Model Number:

3073F

DC - 1 GHz; SMA Female; No Chain

2.4

Model Number:

3073M

DC - 1 GHz; SMA Male: No Chain

2.4

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

3073: REV E

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet

• inmetsales@aeroflex.com
