332-2-013-0-F-XS0-0700 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 332-2-013-0-F-XS0-0700

Preview

332-2-013-0-F-XS0-0700: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

332-2-013-0-F-XS0-0700 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal

332-2-013-0-F-XS0-0700 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
body width	0.079 inch
subject depth	0.118 inch
body length	1.024 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	332
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

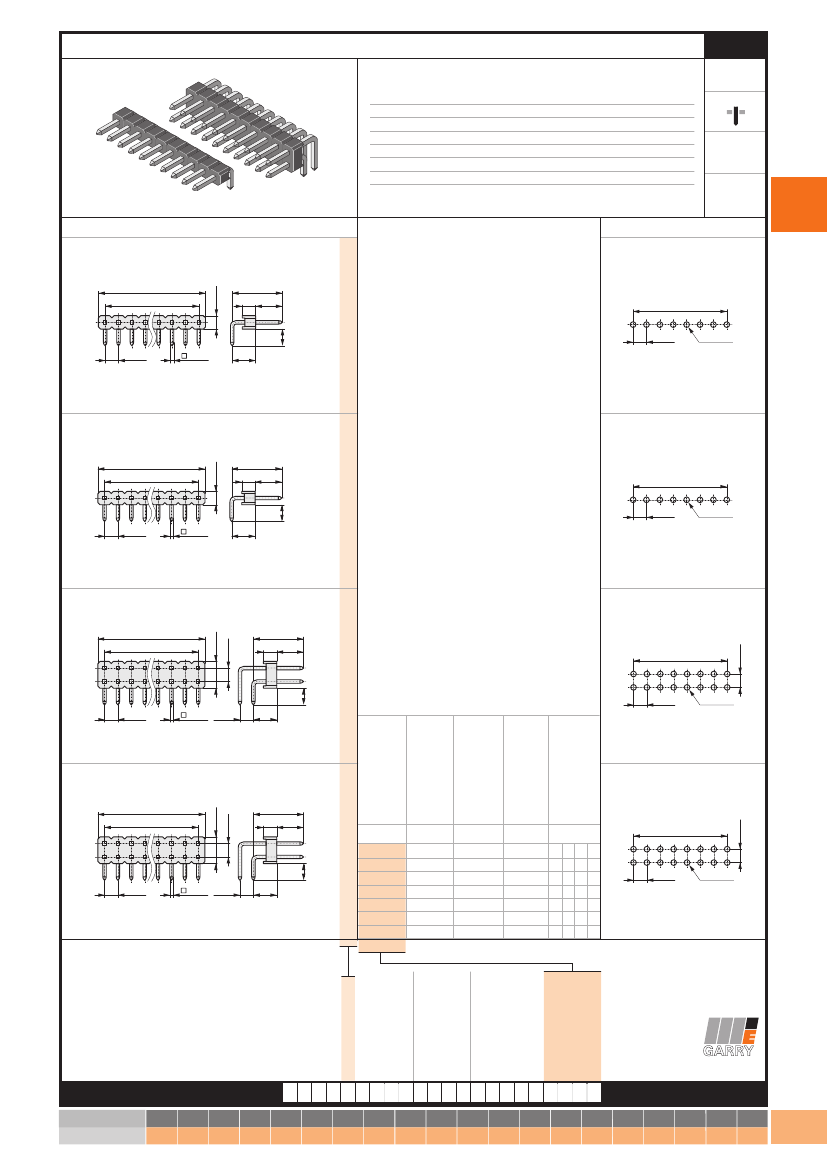

Pin Header Right Angled 2,00 mm

Rated current

1,5 A

Rated voltage

150 V

RMS

/ V

DC

Withstand voltage

500 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

332

pitch

termination

contact

size

2,00

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

Variation

PCB Layout

040 / 080

max.

pincount

☐

0,50

Product

group

3

n x 2,00

(n-1) x 2,00

A

1,50 B

2,00

1

(n-1) x 2,00

2,00

ø 0,85

2,00

0,50

W

n x 2,00

(n-1) x 2,00

A

2,00 B

2,00

C

2

(n-1) x 2,00

2,00

ø 0,85

2,00

0,50

W

4,00

2,00

(n/2-1) x 2,00

3

available in variation

2,00

0,50 2,00

W

2,00

ø 0,85

C

see figure left

4,00

2,00

4

2,00

0,50 2,00

W

C

5,65

7,13

7,00

7,02

7,13

7,00

7,02

A

3,80

4,00

B

2,50

2,45

2,50

2,85

2,45

2,50

2,85

Plating contact (T,F,S)

C

1,85

3,13

3,00

3,02

3,13

3,00

3,02

W

(n/2-1) x 2,00

1

2

3

2,00

ø 0,85

4

* No. of contacts:

Variation 1 = 002 - 040

Variation 2 = 002 - 040

Variation 3 = 004 - 080

Variation 4 = 004 - 080

e.g. 1000 = 10,00 mm

Variation (1,2,3,4)

No. of contacts *

(002,... - 080)

Plating:

T = Sn

F = Au

S = Selective Au

A (1/100 mm)

www.mpe-connector.de

Order code:

Mating series

see page

332-?-???-0-?-XS0-????

6-8

4-14 4-15 4-16 4-17 4-18

156 159 422 158 413 160

2,00

(n/2) x 2,00

(n/2-1) x 2,00

A

2,00 B

see figure left

2,00

(n/2) x 2,00

(n/2-1) x 2,00

A

1,50 B

C

3-29
