NOTES:
1.
MATERIALS AND FINISHES:
INNER CONDUCTOR - BERYLLIUM COPPER
OUTER CONDUCTOR - BRASS, WHITE BRONZE PLATING
NUT - BRASS, WHITE BRONZE PLATING
INSULATOR - PTFE, NATURAL
ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. FREQUENCY RANGE: DC - 3 GHz
C. VSWR: 1.1
D. INSERTION LOSS: 0.05+0.05 f(GHz)
E. DWS: 2500V
F. INTERMODULATION: -166 dBc (2 X 43 dBm)
MECHANICAL:
A. DURABILITY: 100 CYCLES MIN.
B. TEMPERATURE RANGE: -40 $ C TO +85 $
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
6/15/16
DATE
01061
ECO
APPR
KCE
2.
3.
C
26
35
5.
PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, AD-4310P4310J-2 , AND DATE CODE"
19
25
M20X1
19
35
25.5

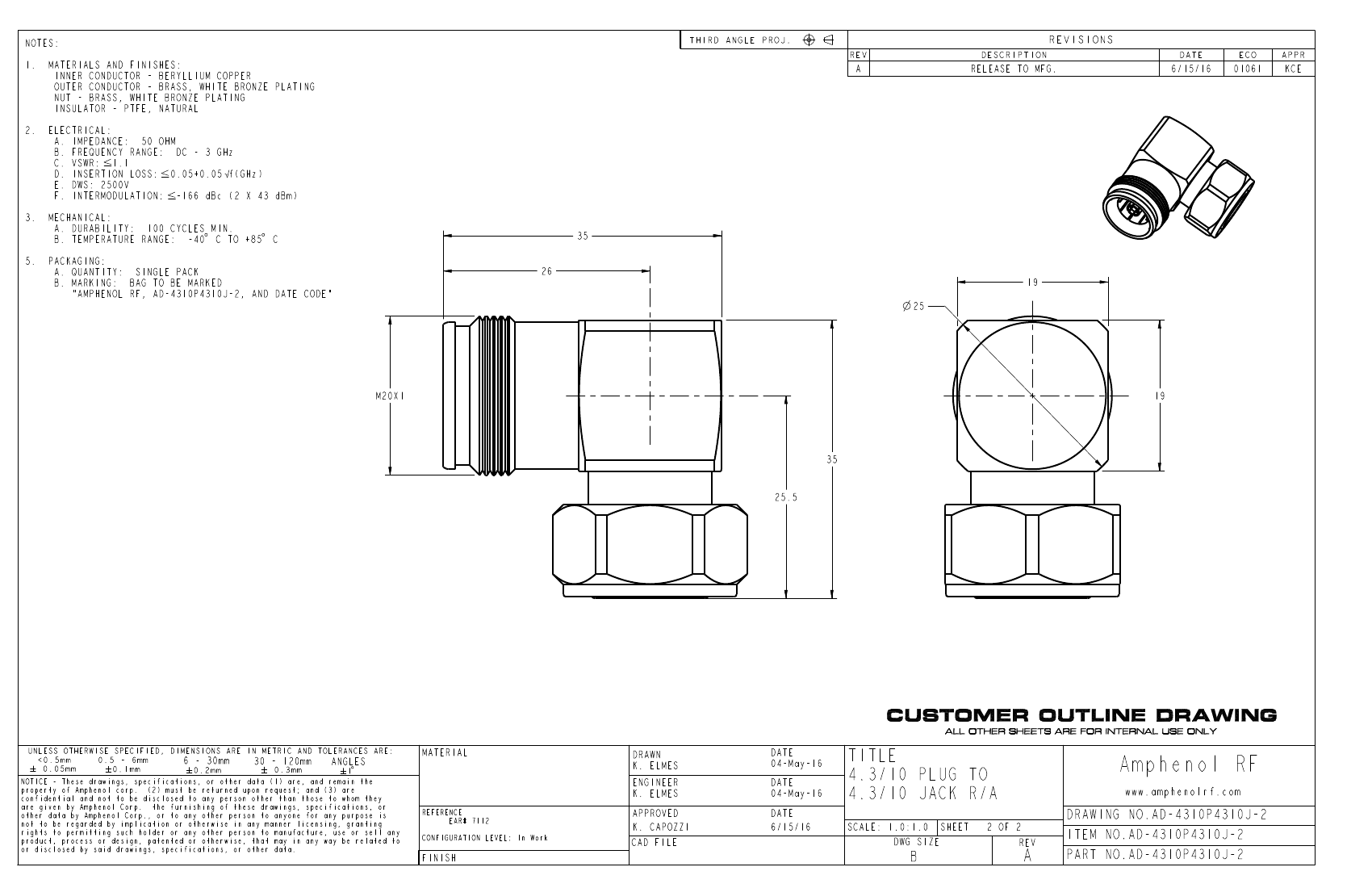

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
DRAWN
K. ELMES
ENGINEER
K. ELMES
DATE
04-May-16
DATE
04-May-16
DATE
6/15/16
REFERENCE
EAR# 7112
CONFIGURATION LEVEL: In Work
FINISH
CAD FILE
APPROVED
K. CAPOZZI
TITLE
4.3/10 PLUG TO
4.3/10 JACK R/A
SCALE: 1.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. AD-4310P4310J-2
B
REV
A
ITEM NO. AD-4310P4310J-2
PART NO. AD-4310P4310J-2
