306RPFP: DescriptionSingle-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDFP28; CategoryAnalog mixed-signal IC The signal circuit; File Size564KB，7 Pages; ManufacturerSpace Electronics Inc.

Download Datasheet Parametric Compare View All

306RPFP Overview

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDFP28

306RPFP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Space Electronics Inc.
package instruction	DFP, FL28,.4
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XDFP-F28
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Maximum on-state resistance (Ron)	175 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL28,.4
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class S (Modified)
Maximum signal current	0.03 A
Maximum supply current (Isup)	1 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum connection time	450 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

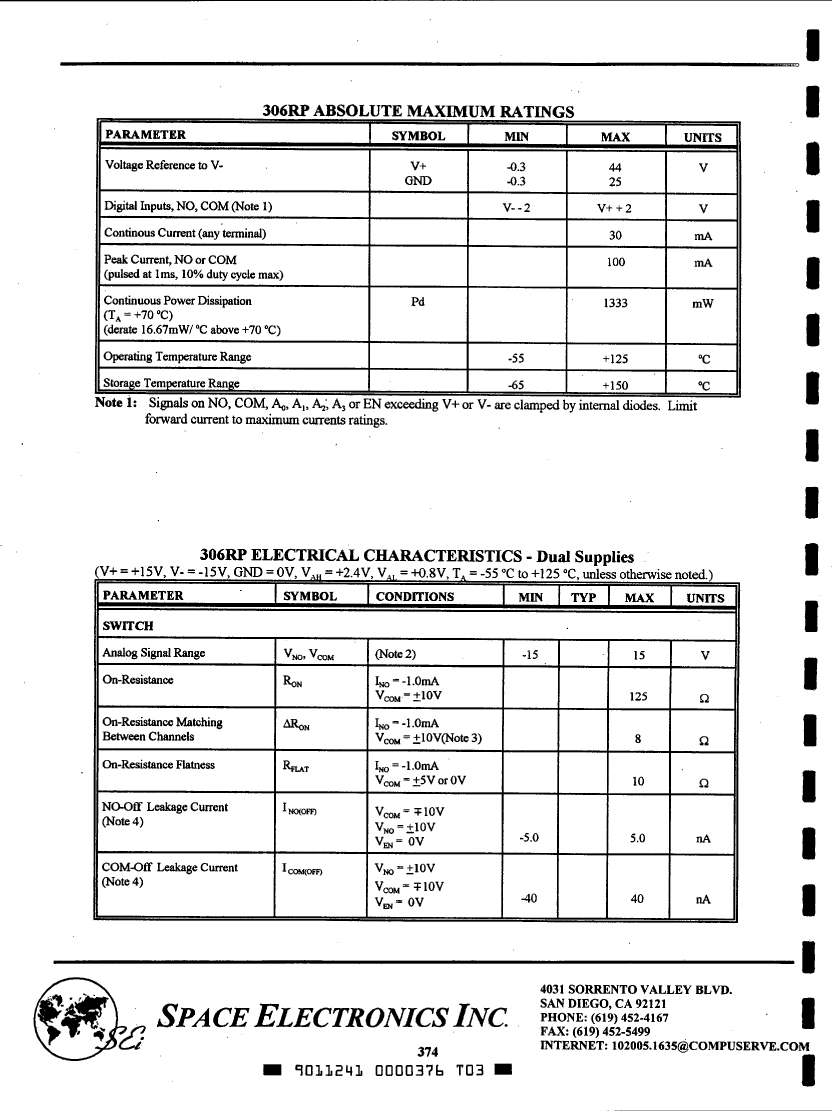

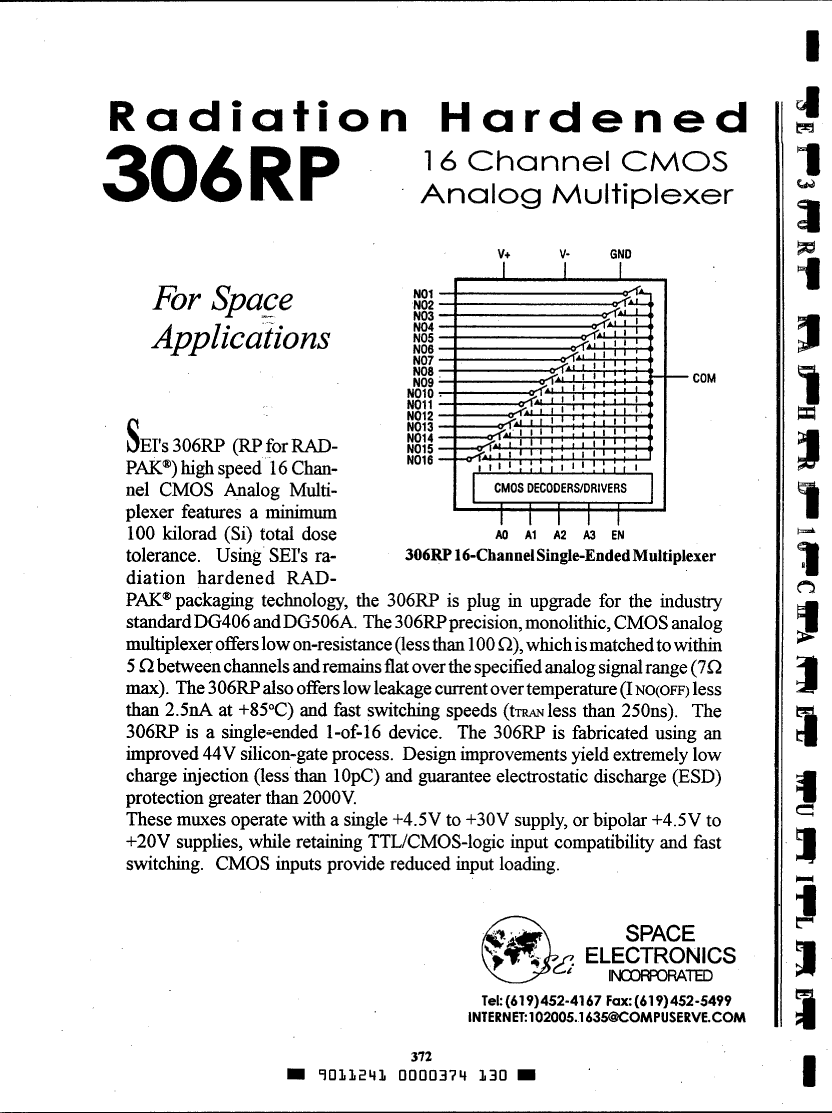

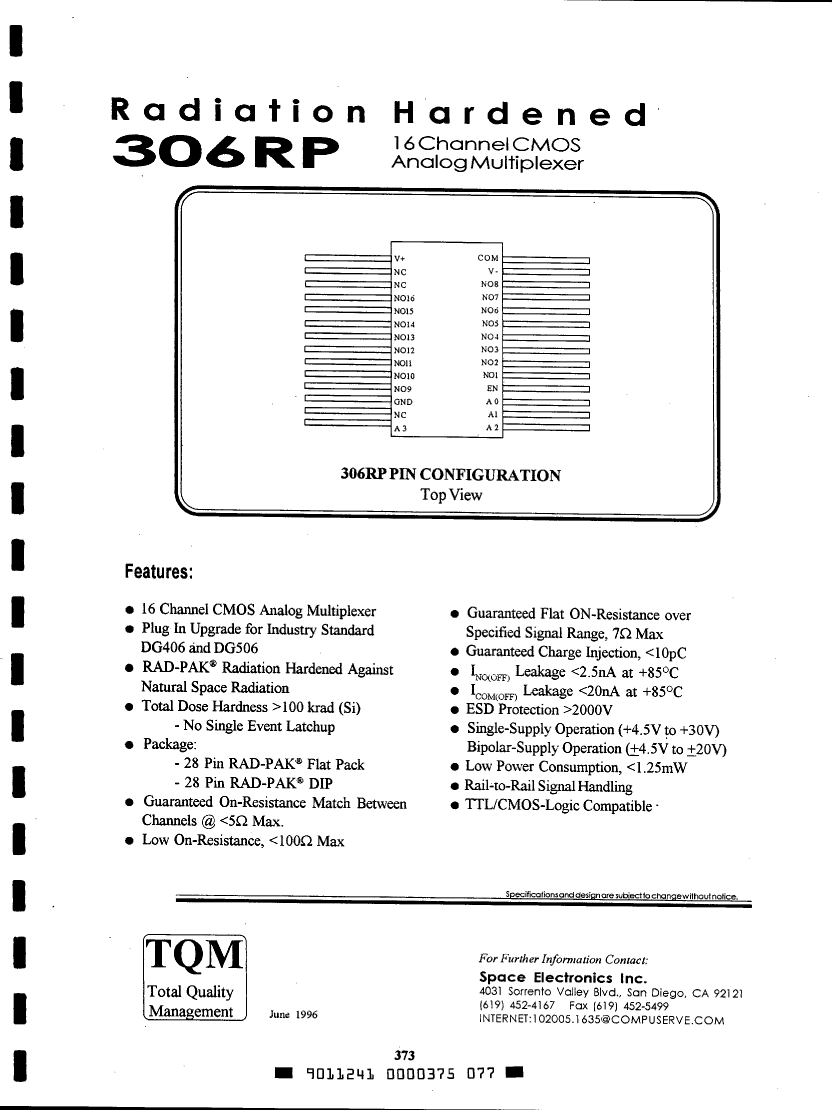

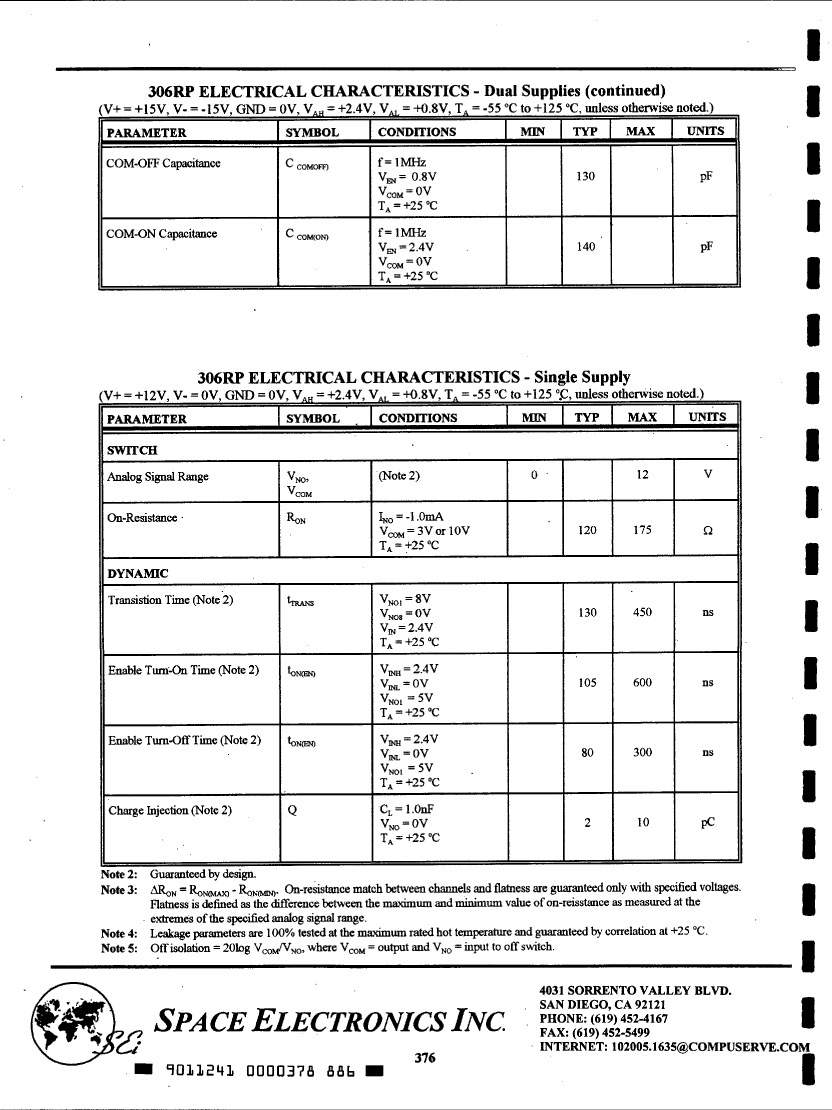

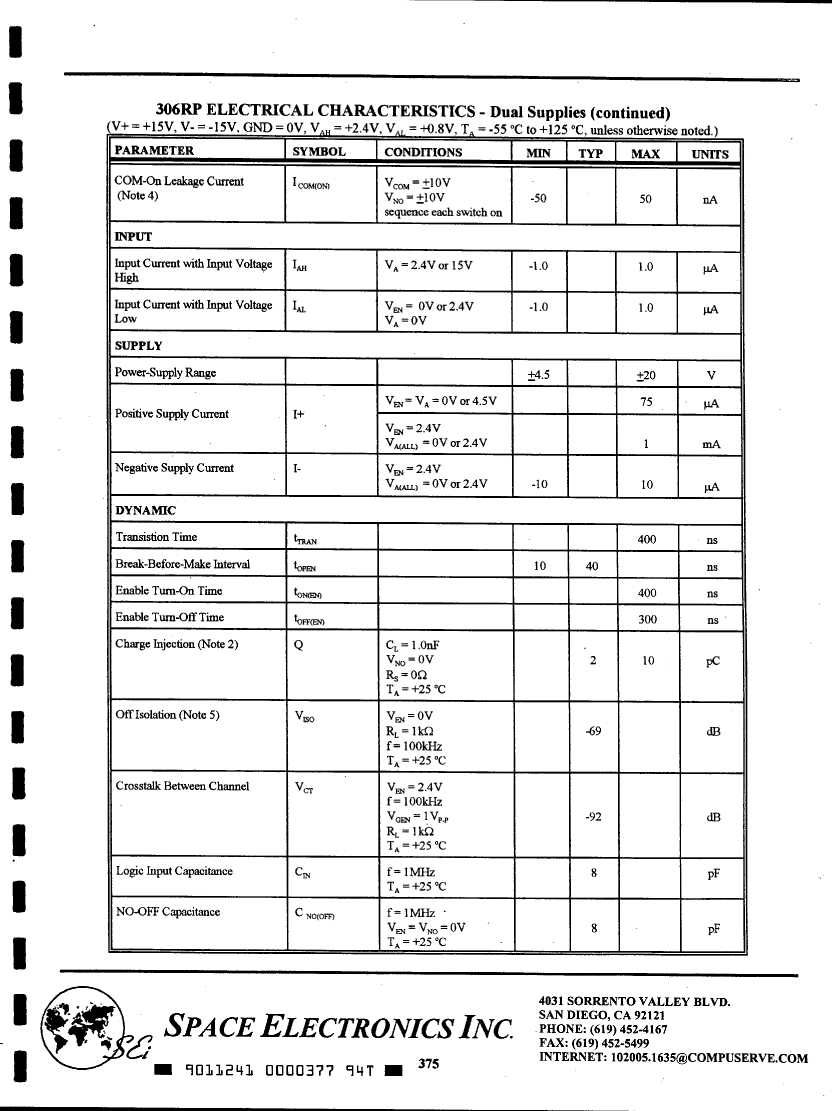

Preview

Download Datasheet

View All

306RPFP Related Products

	306RPFP	306RPDB	306RPDE	306RPDP	306RPDS	306RPFE	306RPFI
Description	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDFP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDFP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDFP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Space Electronics Inc.	Space Electronics Inc.	Space Electronics Inc.	Space Electronics Inc.	Space Electronics Inc.	Space Electronics Inc.	Space Electronics Inc.
package instruction	DFP, FL28,.4	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DFP, FL28,.4	DFP, FL28,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XDFP-F28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDFP-F28	R-XDFP-F28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28
Maximum on-state resistance (Ron)	175 Ω	175 Ω	175 Ω	175 Ω	175 Ω	175 Ω	175 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	DIP	DIP	DIP	DIP	DFP	DFP
Encapsulate equivalent code	FL28,.4	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	FL28,.4	FL28,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum signal current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Maximum supply current (Isup)	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	NO	NO	YES	YES
Maximum connection time	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1
Filter level	MIL-STD-883 Class S (Modified)	38535Q/M;38534H;883B	-	MIL-STD-883 Class S (Modified)	38535V;38534K;883S	-	-
