H.DI-1240-680 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> H.DI-1240-680

Preview

H.DI-1240-680: DescriptionGeneral Purpose Inductor, 68uH, 20%, 1 Element, Nickel-zinc-Core, SMD, 4949, ROHS COMPLIANT; CategoryPassive components inductor; File Size177KB，2 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

H.DI-1240-680 Overview

General Purpose Inductor, 68uH, 20%, 1 Element, Nickel-zinc-Core, SMD, 4949, ROHS COMPLIANT

H.DI-1240-680 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NEC TOKIN ( KEMET Corporation )
package instruction	4949
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	4949
structure	Leadless
core material	NICKEL-ZINC
DC Resistance	0.24 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	H.DI-1240
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Package height	4 mm
Package length	12.5 mm
Package form	SMT
Package width	12.5 mm
method of packing	TR
Maximum rated current	1.4 A
series	HDI1240
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE IS MEASURED AT 1MA DC CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.01 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

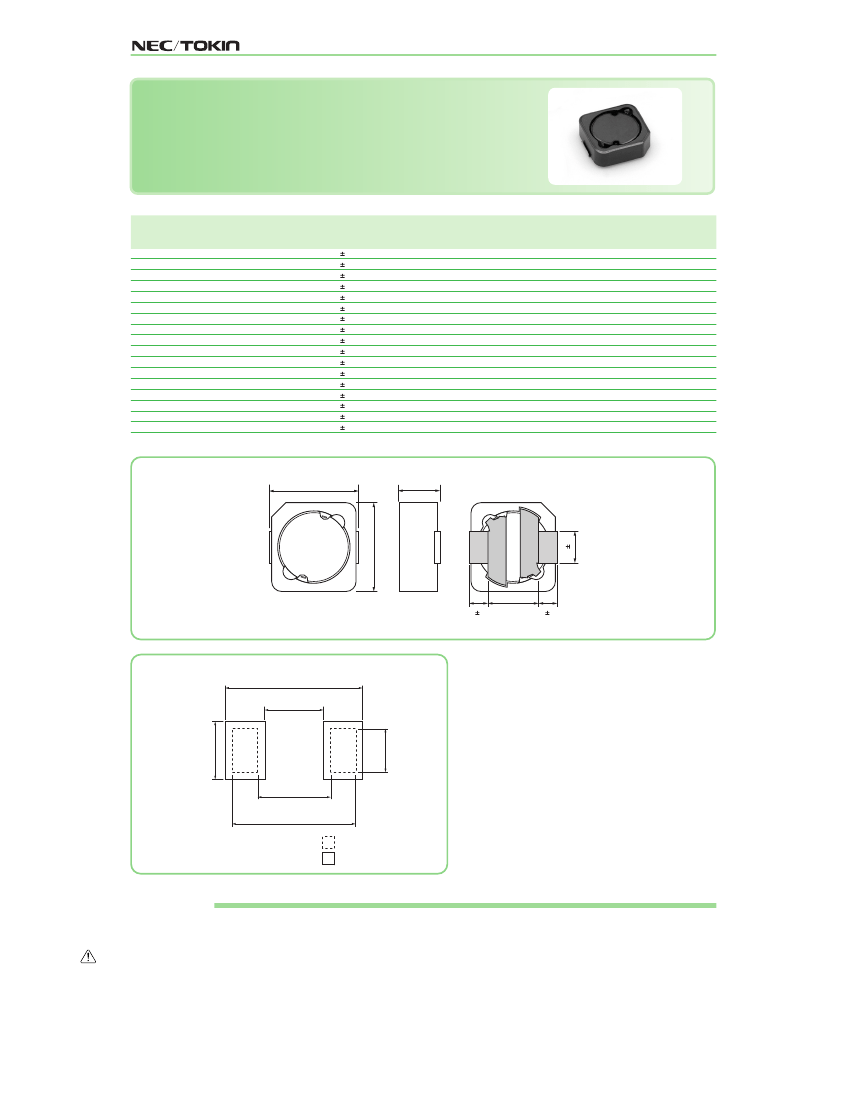

SMD Type

Leadless Power Inductors

H½DI-1240 Series

[RoHS Compliant]

●H DI-1240 Series

・

Model

Inductance

at 10kHz,1mA

（μH）

2.2

±

25%

3.3

±

25%

4.7

±

25%

6.8

±

25%

10

±

25%

15

±

25%

22

±

25%

33

±

25%

47

±

20%

68

±

20%

100

±

20%

150

±

20%

220

±

20%

330

±

20%

470

±

20%

680

±

20%

1000

±

20%

DC resistance

（Ω）max.

Rated current

（A）

H DI-1240-2R2

・

H DI-1240-3R3

・

H DI-1240-4R7

・

H DI-1240-6R8

・

H DI-1240-100

・

H DI-1240-150

・

H DI-1240-220

・

H DI-1240-330

・

H DI-1240-470

・

H DI-1240-680

・

H DI-1240-101

・

H DI-1240-151

・

H DI-1240-221

・

H DI-1240-331

・

H DI-1240-471

・

H DI-1240-681

・

H DI-1240-102

・

0.017

0.023

0.026

0.033

0.039

0.060

0.075

0.12

0.18

0.24

0.30

0.50

0.74

1.1

1.6

2.5

3.7

5.10

4.60

4.30

3.90

3.50

2.90

2.40

1.90

1.60

1.40

1.10

0.90

0.75

0.60

0.50

0.40

0.35

●Operating temperature range: −20 to +105℃ (Including self-temperature rise)

Shape and Dimensions

12.5 max.

4.0 max.

12.5 max.

5.5 min.

2.9

±

0.3

2.9

±

0.3

[mm]

Recommended Land Pattern

13.5

5.0

5.5

6.3

12.1

terminal

land

4.0

[mm]

Choke Coils VOL.08

●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.

●Please request for a specification sheet for detailed product data prior to the purchase.

●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.

4.0

±

0.3

2008.08.29 P0936MCCC10VOL08E
