PGA-69-H-003B-1-1130-R datasheet, PDF

PGA-69-H-003B-1-1130-R: DescriptionPGA69, IC SOCKET; CategoryThe connector socket; File Size94KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PGA-69-H-003B-1-1130-R Overview

PGA69, IC SOCKET

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: UL 94V-0
body width	1.15 inch
subject depth	0.165 inch
body length	1.15 inch
Contact structure	11X11
Contact to complete cooperation	AU
Contact completed and terminated	GOLD (30)
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	PGA69
Dielectric withstand voltage	1000VAC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω
JESD-609 code	e4
Manufacturer's serial number	PGA69H003B1
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	69
Maximum operating temperature	220 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

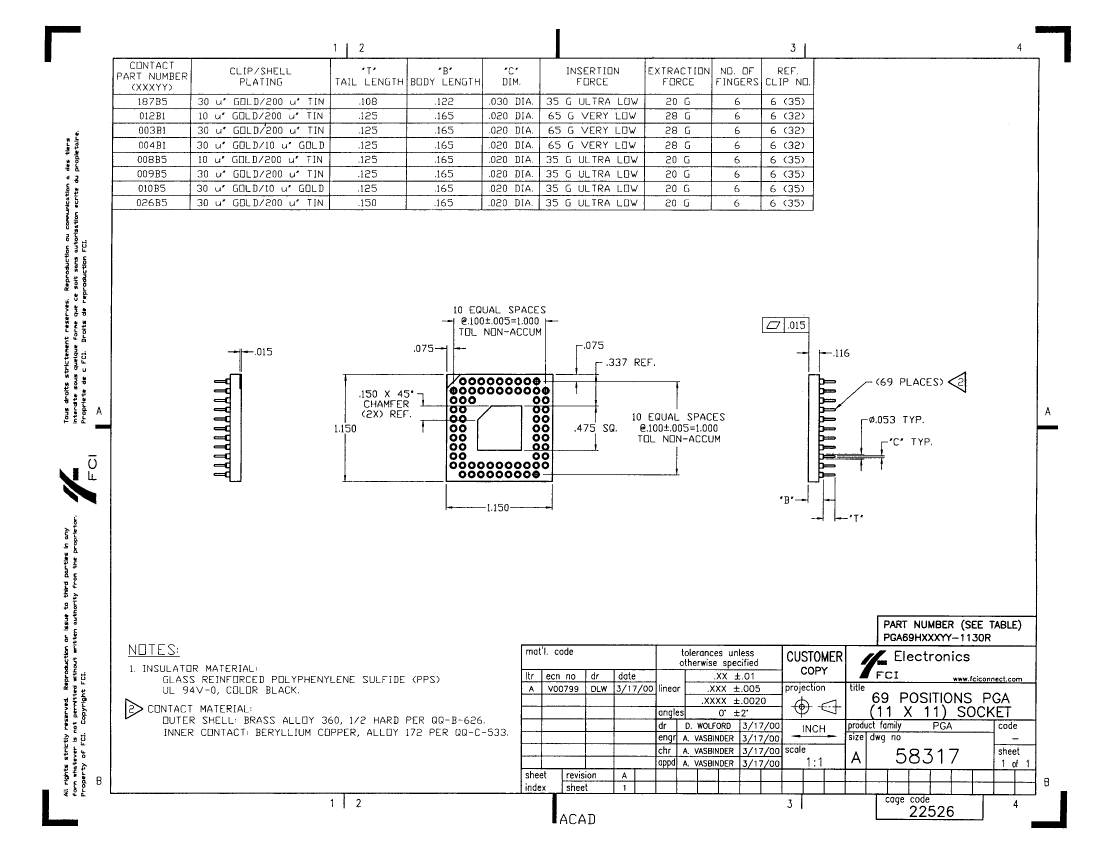

PDM: Rev:A

STATUS:

Released

Printed: Feb 04, 2006

.
