700353B02953G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> Heat resisting bracing> 700353B02953G

700353B02953G: DescriptionHeat Sink, Extruded, Longitudinal, Aluminum, Anodized, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size294KB，4 Pages; ManufacturerBoyd Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

700353B02953G Overview

Heat Sink, Extruded, Longitudinal, Aluminum, Anodized, ROHS COMPLIANT

700353B02953G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Boyd Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Main material	ALUMINUM
color	BLACK
structure	EXTRUDED
fin direction	LONGITUDINAL
Surface layer	ANODIZED
high	8.89 mm
length	75.01 mm
Heat Resistant Support Device Type	HEAT SINK
weight	22.32 g
width	27.94 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5/16/12

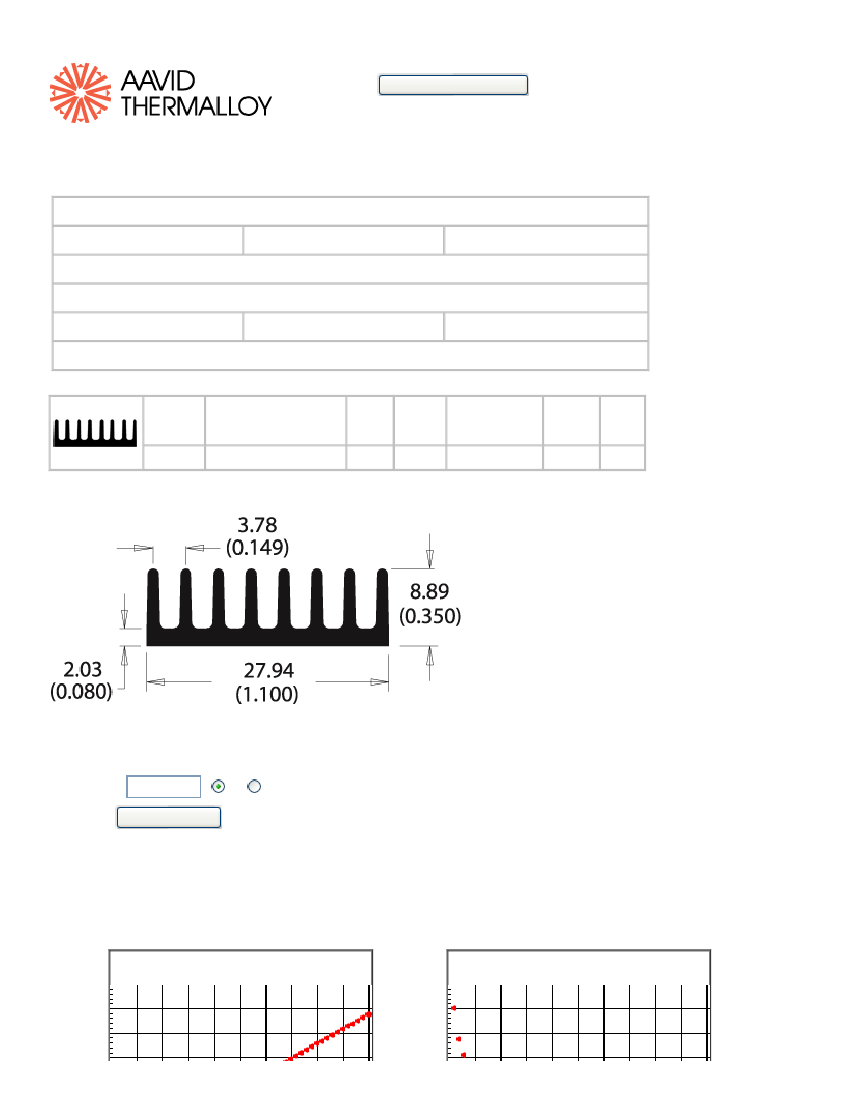

Extrusion Profiles

Back to search results

70035

This part is in stock!

Inventory Snapshot:

OEM Pricing*

8 feet: $93.75 per foot

32 feet: $23.44 per foot

56 feet: $13.39 per foot

*For larger quanities, please contact our sales department

Part

Thermal Resistance Width Height Surface Area Weight

Number °C/W at 3in length*

lb/ft

/in

70035

11.20

1.10

0.35

6.2

0.20

370 feet*

*Material in stock maybe allocated to other orders and is subject to prior sales

Part

Class

*Based on a 75°C rise in natural convection

Thermal Curves

based on 3.000 in length

New Length 3.000

Change Length

Natural Convection

Heat Sink Temperature Rise

Above Ambient

105.0

78.8

52.5

26.2

27.00

20.25

13.50

6.75

Heat Sink

Thermal Resistance

www.aavidthermalloy.com/cgi-bin/process.php?pf=exdisp.pl&Pnum=70035&LengthUnits=in&ExLength…

1/4

700353B02953G Related Products

	700353B02953G	700353B01250G
Description	Heat Sink, Extruded, Longitudinal, Aluminum, Anodized, ROHS COMPLIANT	Heat Sink, Extruded, Longitudinal, Aluminum, Anodized, ROHS COMPLIANT
Maker	Boyd Corporation	Boyd Corporation
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
Main material	ALUMINUM	ALUMINUM
color	BLACK	BLACK
structure	EXTRUDED	EXTRUDED
fin direction	LONGITUDINAL	LONGITUDINAL
Surface layer	ANODIZED	ANODIZED
high	8.89 mm	8.89 mm
length	75.01 mm	31.75 mm
Heat Resistant Support Device Type	HEAT SINK	HEAT SINK
weight	22.32 g	9.45 g
width	27.94 mm	27.94 mm
Base Number Matches	1	1
