B84143B0200R112

Description
Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE
CategoryAnalog mixed-signal IC    filter
File Size61KB,1 Pages
ManufacturerEPCOS (TDK)
Download Datasheet Parametric View All

B84143B0200R112 Overview

Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE

B84143B0200R112 Parametric

Parameter NameAttribute value
MakerEPCOS (TDK)
Reach Compliance Codeunknown
CertificationIEC; EN; VDE
filter typeTHREE PHASE EMI FILTER
high220 mm
high potential2700 V
Maximum leakage current14 mA
length400 mm
Manufacturer's serial numberB84143-B200-R112
Installation typePANEL MOUNT
working frequency50/60Hz Hz
physical sizeL400XB110XH220 (mm)
Rated current200 A
Rated voltage300 V
Base Number Matches1
3-Leiter-Filter
3-Line Filters
Buchfilter

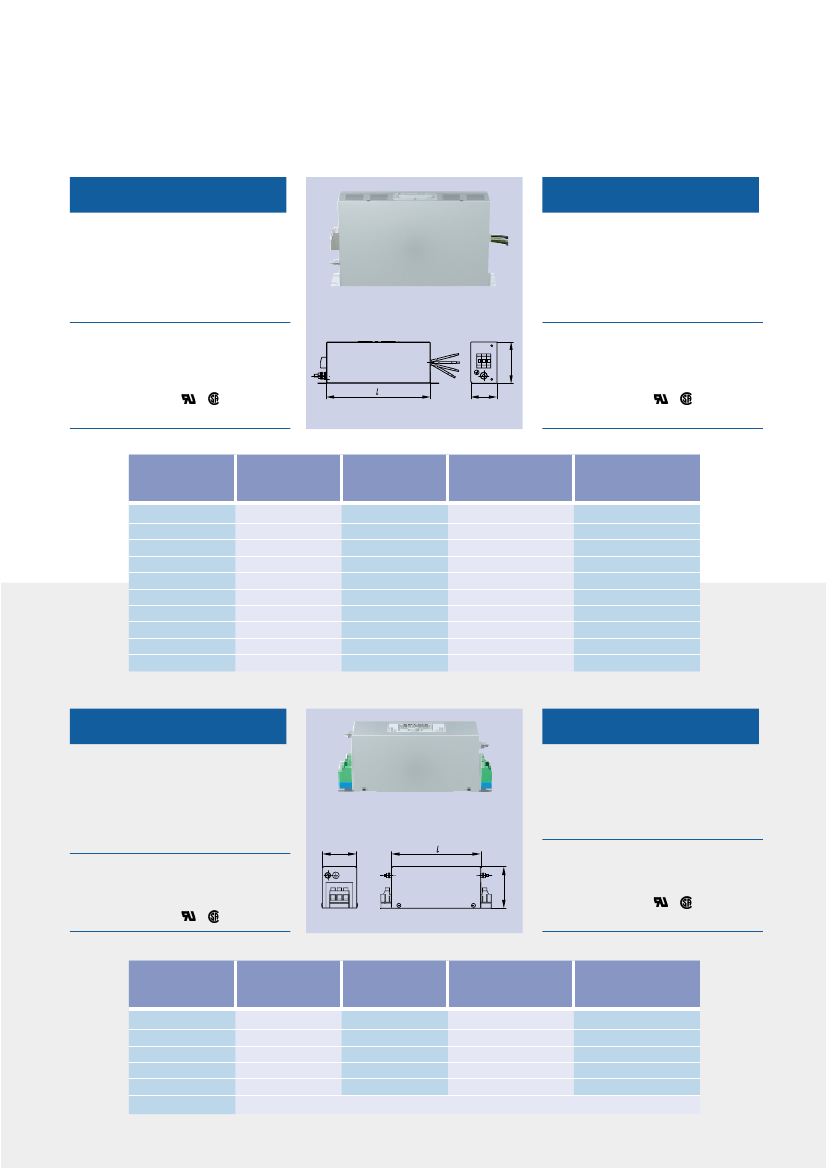

B84143-B*-R110/-R112
s
Für 3-Phasen-Systeme
s
Für Umrichter und
Leistungselektronik
s
Metallgehäuse
s
Berührungssichere
Reihenklemmen/Litzen
Bemessungs-
spannung U
R
:
Klimakategorie:
Approbationen:
480/275 V~ und
520/300 V~,
50/60 Hz
25/100/21
,
in Vorbereitung
Book-size filters
B84143-B*-R110/-R112
s
For 3-phase systems
s
For converters and power
electronics
s
Metal case
s
Safe-to-touch terminal blocks/
litz wires
Rated voltage V
R
: 480/275 V~ and
520/300 V~,
50/60 Hz
Climatic category: 25/100/21
Approvals:
,
pending
b
SSB1896-9
h
I
R
A
8
16
25
36
50
66
90
120
150
200
1)
I
Abl
I
leak
mA
< 14
< 14
< 14
< 14
< 14
< 14
< 14
< 14
< 14
< 14
R
typ
mΩ
26
13
10
6,5
4,3
2,7
2,0
1,4
0,9
0,5
Maße
Dimensions
l
x
b
x
h (mm)
200
x
50
x
80
200
x
50
x
80
250
x
60
x
150
250
x
60
x
150
300
x
60
x
150
300
x
80
x
150
300
x
80
x
200
350
x
90
x
200
350
x
90
x
200
400
x
110
x
220
Bestellnummer
1)
Ordering code
1)
B84143-B8-R110
B84143-B16-R110
B84143-B25-R11*
B84143-B36-R11*
B84143-B50-R11*
B84143-B66-R11*
B84143-B90-R11*
B84143-B120-R11*
B84143-B150-R11*
B84143-B200-R11*
* 0 = 480/275 V; 2 = 520/300 V
Buchfilter
B84143-A*-R105
s
Für 3-Phasen-Systeme
s
Für Umrichter und
Leistungselektronik
s
Metallgehäuse
s
Berührungssichere
Reihenklemmen
Bemessungs-
spannung U
R
:
Klimakategorie:
Approbationen:
480/275 V~,
50/60 Hz
25/085/21
,
in Vorb.
Book-size filters
B84143-A*-R105
s
For 3-phase systems
s
For converters and power
electronics
s
Metal case
s
Safe-to-touch terminal blocks
b
SSB1967-2
Rated voltage V
R
: 480/275 V~,
50/60 Hz
Climatic category: 25/085/21
Approvals:
,
pending
I
R
A
8
16
25
36
50
66 … 150
EPCOS AG
I
Abl
I
leak
mA
R
typ
mΩ
Maße
Dimensions
l
x
b
x
h (mm)
h
Bestellnummer
Ordering code
B84143-A8-R105
B84143-A16-R105
B84143-A25-R105
B84143-A36-R105
B84143-A50-R105
< 12
16
133,7
x
51,4
x
63
< 14
9
199,5
x
46,4
x
70
< 14
5
199,5
x
46,4
x
83
< 14
4
200,0
x
57,0
x
90
< 14
2
200,0
x
57,0
x
90
Filter in Vorbereitung / Filters in preparation
