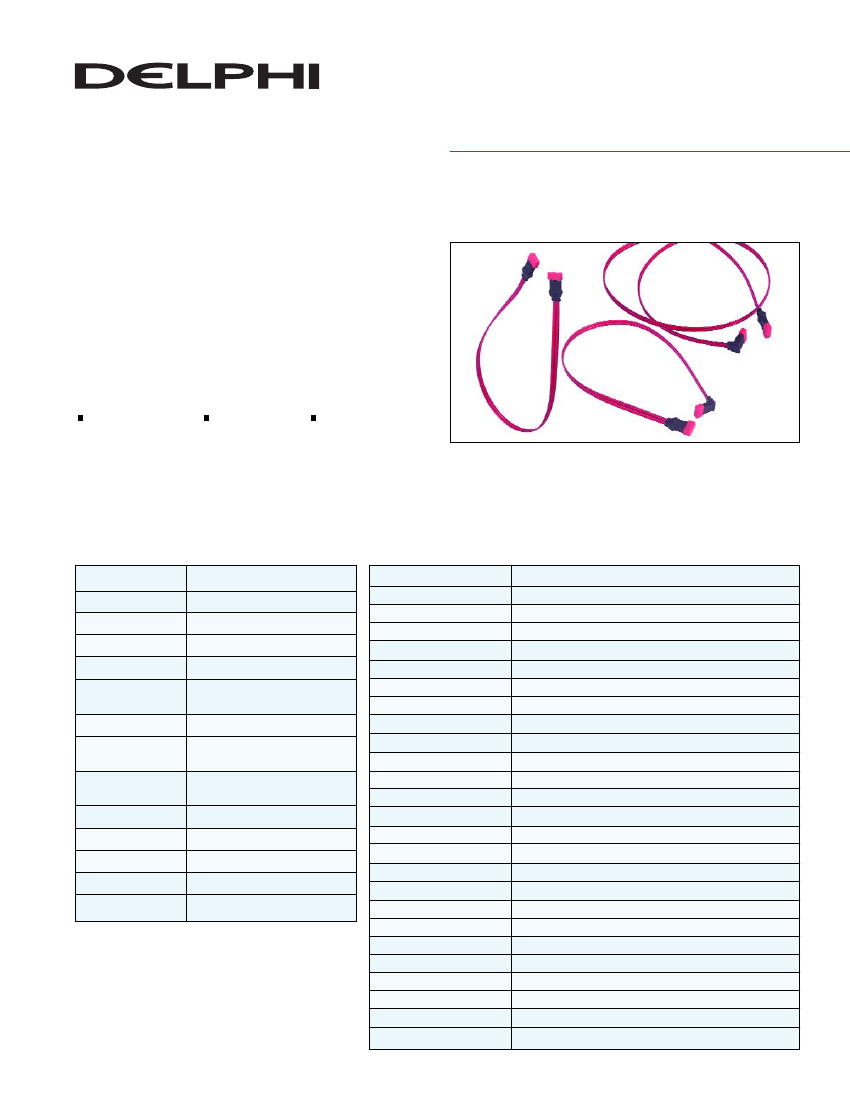

Description:
Connectorized cable assemblies for the Serial ATA (SATA) mass
storage interface standard. These cables are primarily used to connect
hard drives to the motherboard inside a PC.
Typical Applications:
Desktop computers
ATA drive arrays
Mini-tower computers
Benefits/Features:
Industry Standard . . Meets the mechanical and electrical requirements of the Serial ATA Specification (High Speed Serialized AT Attachment).
Flexible System . . . . Straight and right angle cable exits are available.
Several standard cable lengths are available.
Multiple cable types match performance needs.
Selectable Features:
Product Type
Total No. of Positions
Centerline Spacing
Operating Voltage
Contact Style
Contact Area Plating
Housing Color
Cable Lengths
Cable Diameter
Wire Size
Overmold Color
Cable Jacket Color
Dust Cover
Application
Serial ATA cable assemblies
7/7
1.27 mm [.050 in.]
30 VDC
Formed
Gold plated (see product
print for thickness)
Black
255 mm [10.0 in.], 500 mm [19.7 in.],
1000 mm [39.4 in.]
Oval – 2.08 mm x 7.80 mm
[.082 in. x .307 in.]
26 AWG
Black
Red
Available with or without
Wire-to-board
Other Properties:
Packaging Type
Housing Material
Overmold Material
Cable Jacket
Contact Base Material
Insulation Resistance
Withstanding Voltage
Current Rating
Contact Resistance
Voltage Rating
Temperature Range
Normal Force
Contact Retention Force
Durability (Mating Cycles)
Mating Force
Unmating Force
Plating (Contact Area)
Plating (Soldering End)
Underplating
Mated Connector Impedance
Insertion Loss
Crosstalk
Rise Time
Intra-pair Skew
Standards
Approvals and Certification
Polybag
GF PBT or GF LCP
PVC
PVC
Copper alloy
1000 MΩ initial
500 VAC RMS
1.5 amp max. per contact
30 mΩ initial
30 VAC
-25°C to +65°C
50 g min. end-of-life
600 g
50 cycles
45 N [10.12 lbf ] max.
10 N [2.25 lbf ] min.
Gold (thickness varies per Delphi spec.) over nickel underplating
2.54 µm [100 µin.] min. tin-lead over nickel underplating
1.27 µm [50 µin.] nickel min.
100
Ω
±15%, rise time @ 70 ps
6 dB max. @ 1200 MHz
-26 dB max. @ 1200 MHz
85 ps
10 ps max.
Serial ATA: High Speed Serialized AT Attachment, Revision 1.0
UL approved
Serial ATA Cable
Assemblies

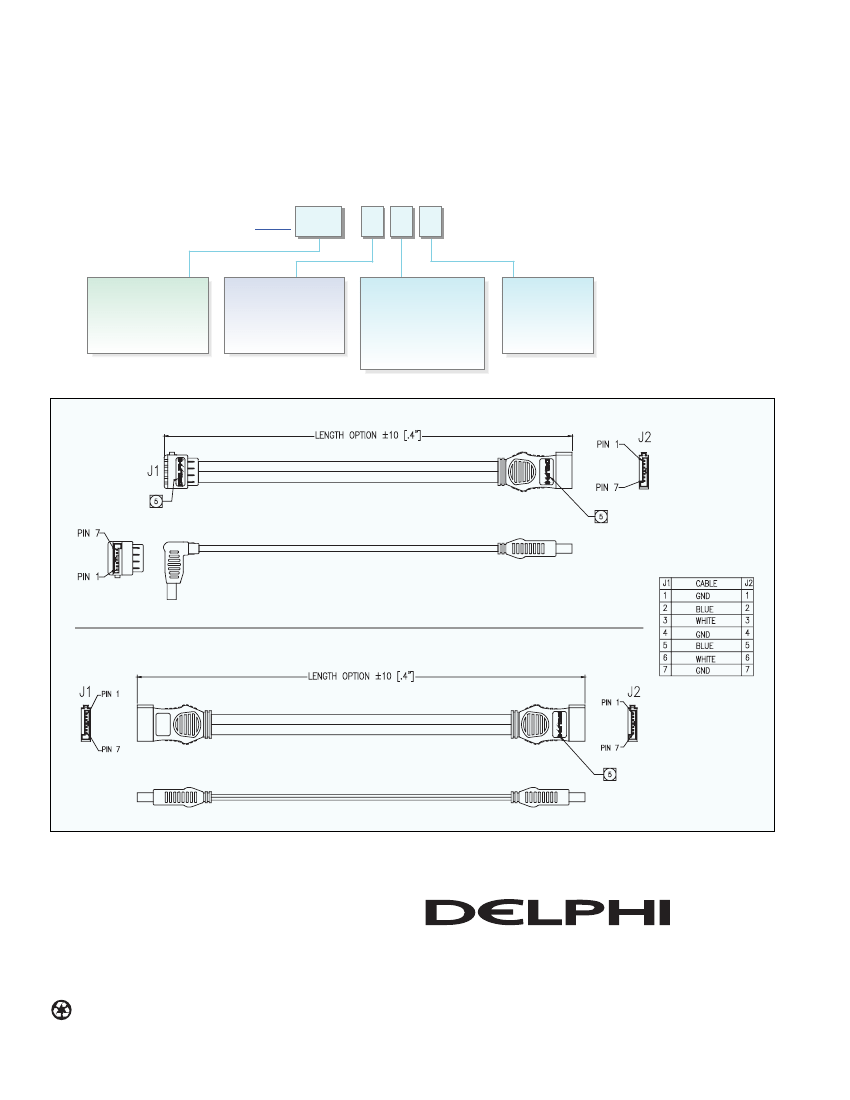

Ordering Nomenclature
1543 0373 – 0
1
0
Cables:
90° . . . . . .
1543
0373
Straight . . .
1543
0374
Dust Cover:
0
= Without dust cover
1
= With dust cover
Cable Length
Option:
1
= 255 mm [10.0 in.]
2
= 500 mm [19.7 in.]
3
= 1000 mm [39.4 in.]
Cable
Option:
0
= Grade A
1
= Grade B
0373
Pin Assignment
0374
SERIAL
Dimensions are shown in millimeters [inches].
For additional information, please contact us or visit our website.
www.delphi.com/connect
Printed on Recycled Paper.
© 2002, Delphi. All rights reserved.
Printed in the U.S.A.
902/3w • 1002/6mGBS • U803/3W
DP-02-E-073
ATA
