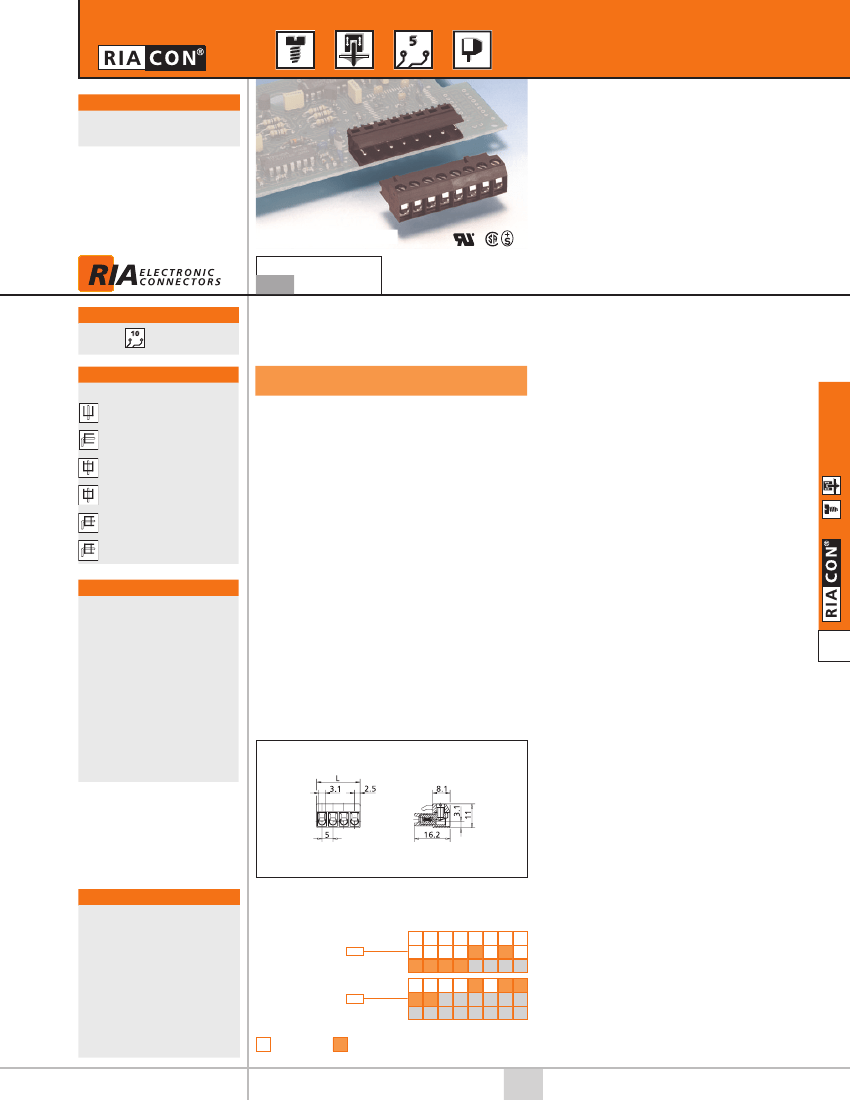

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Type
09
Additional Centerline
Type 09
Voltage
with wire protection
Electrical Data
300 V - centerline 5 mm
600 V - centerline 10 mm
15 A
12 - 22 AWG
#, ++ (see note)
7 lbs. - in
6 mm
≤
5 mW per circuit
Headers that mate with
Type 09
Type 19
Type 29
Type 20
Type 33
Type 30
Type 34
Page H-14
Page H-18
Page H-15
Page H-16
Page H-19
Page H-20
Current
Wire range
Screw torque
Wire strip length
Contact resistance
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
brown
brass, nickel plated
berylliumcopper,
silver over nickel plating
optional: tin/gold plating
- consult factory
tin bronze, tin plated
M3, steel,
nickel over copper plating
optional: stainless steel
- consult factory
2 to 20 - centerline 5 mm
2 to 10 - centerline 10 mm
Color
Terminal
Contact socket
Accessories
for
Type 09
Coding set 716906
Page J-9
Latches
716765/716766
Page J-6
Latches used with header
Type 33
Page H-16
or
Type 34
Page H-20
Wire protector
Screw
Pole sizes
Additional material data - pages DA-3 to DA-5
Dimensions (mm)
L = (circuits - 1) x centerline + 5
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Part Numbers
Type 09
Complete the part number
by adding the pole size.
centerline 5 mm
Type 09
#
++
1 No. 30 AWG
(Factory-wiring);
2 No. 22-18 AWG
(Field-wiring);
2 No. 30-18 AWG
(Factory-wiring)
Part No.
310091
Type 09
centerline 10 mm
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20
02 03 04 05 06 07 08
09 10
Part No.
310092
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
DB-9
Subject to technical changes and printing errors.
