32JR118-2: DescriptionRF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

32JR118-2 Overview

RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,

32JR118-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	PTFE
MIL compliance	YES
Manufacturer's serial number	SMB
Installation method	RIGHT ANGLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.41
Base Number Matches	1

Preview

Download Datasheet

View All

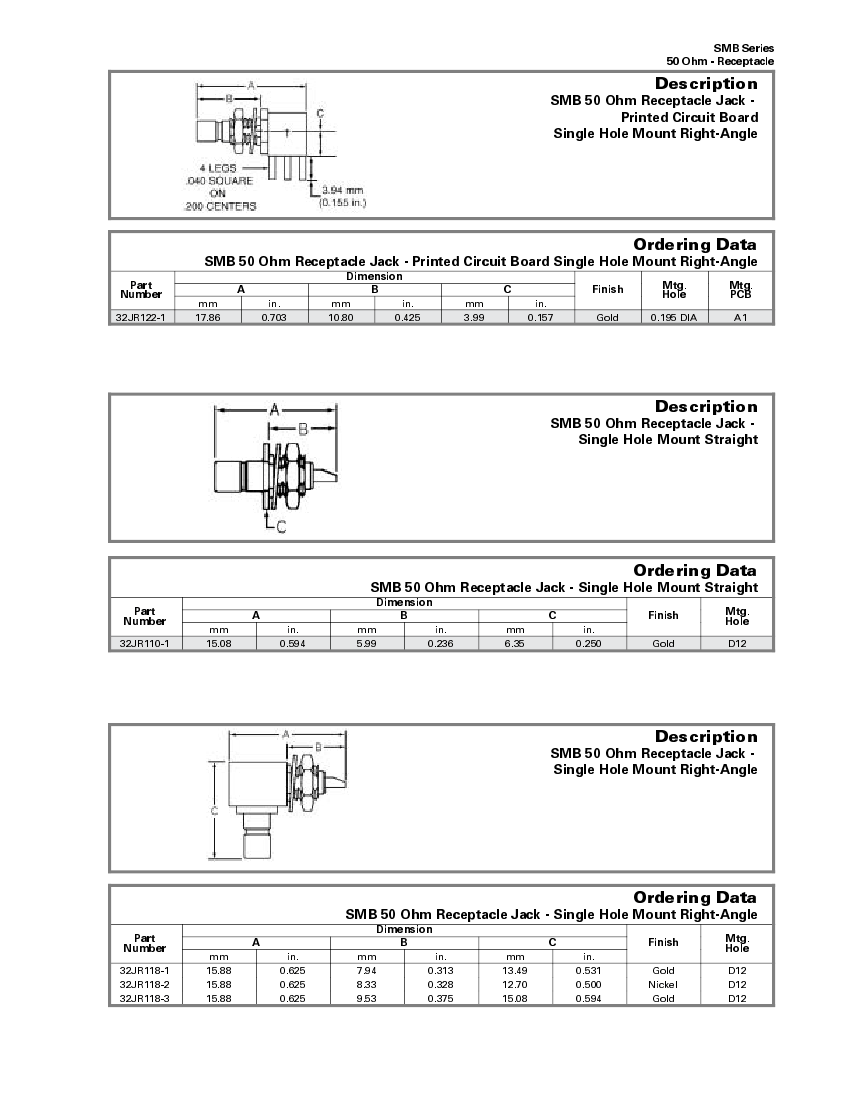

SMB 50 Ohm Receptacle

Receptacle

50 Ohm -

Jack -

Printed Circuit Board

Single Hole Mount Right-Angle

Description

SMB Series

50 Ohm - Receptacle

RF/Coaxial

SMB 50 Ohm Receptacle Jack - Printed Circuit Board Single Hole Mount Right-Angle

Ordering Data

0.195 DIA

Mtg.

Hole

Mtg.

PCB

32JR122-1

Part

Number

17.86

in.

0.703

10.80

Dimension

in.

0.425

3.99

in.

0.157

Finish

Gold

SMB 50 Ohm Receptacle Jack -

Single Hole Mount Straight

Description

SMB 50 Ohm Receptacle Jack - Single Hole Mount Straight

Ordering Data

Finish

32JR110-1

Part

Number

15.08

in.

0.594

5.99

Dimension

in.

0.236

6.35

in.

0.250

Gold

Mtg.

Hole

D12

SMB 50 Ohm Receptacle Jack -

Single Hole Mount Right-Angle

Description

SMB 50 Ohm Receptacle Jack - Single Hole Mount Right-Angle

Ordering Data

Finish

32JR118-1

32JR118-2

32JR118-3

Part

Number

15.88

in.

0.625

7.94

8.33

9.53

Dimension

in.

0.313

0.328

0.375

13.49

12.70

15.08

in.

0.531

0.500

0.594

Gold

Nickel

Gold

Mtg.

Hole

D12

RF/Coaxial

30-109

32JR118-2 Related Products

	32JR118-2	32JR110-1	32JR118-3	32JR118-1	32JR122-1
Description	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Other features	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	NICKEL	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	NICKEL	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insertion loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB
insulator material	PTFE	PTFE	PTFE	PTFE	PTFE
MIL compliance	YES	YES	YES	YES	YES
Manufacturer's serial number	SMB	SMB	SMB	SMB	SMB
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.41	1.41	1.41	1.41	1.41
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol
Base Number Matches	1	1	1	1	-
JESD-609 code	-	e4	e4	e4	e4
