P3-02-104 datasheet, PDF - EEWORLD Datasheet

P3-02-104: DescriptionSplitter, 1MHz Min, 500MHz Max, 1.2dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size107KB，1 Pages; ManufacturerPulsar Microwave Corporation

Download Datasheet Parametric Compare View All

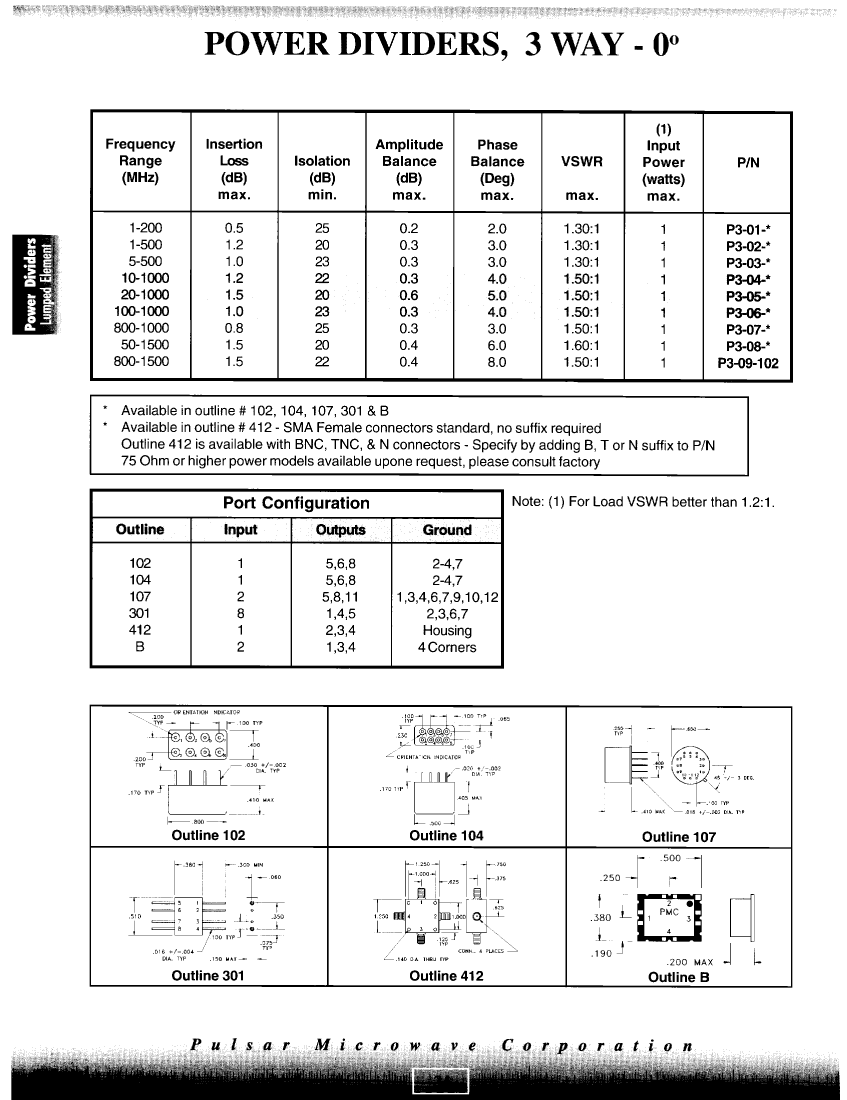

P3-02-104 Overview

Splitter, 1MHz Min, 500MHz Max, 1.2dB Insertion Loss-Max

Parameter Name	Attribute value
Maker	Pulsar Microwave Corporation
Reach Compliance Code	unknown
structure	COMPONENT
Maximum insertion loss	1.2 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

	P3-02-104	P3-07-104	P3-06-104	P3-04-104	P3-08-104
Description	Splitter, 1MHz Min, 500MHz Max, 1.2dB Insertion Loss-Max	Splitter, 800MHz Min, 1000MHz Max, 0.8dB Insertion Loss-Max	Splitter, 100MHz Min, 1000MHz Max, 1dB Insertion Loss-Max	Splitter, 10MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max	Splitter, 50MHz Min, 1500MHz Max, 1.5dB Insertion Loss-Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum insertion loss	1.2 dB	0.8 dB	1 dB	1.2 dB	1.5 dB
Maximum operating frequency	500 MHz	1000 MHz	1000 MHz	1000 MHz	1500 MHz
Minimum operating frequency	1 MHz	800 MHz	100 MHz	10 MHz	50 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.3	1.5	1.5	1.5	1.6
Base Number Matches	1	1	1	1	-
