NOTES:
1.
MATERIALS AND FINISHES:
BODY - ZINC DIE CAST, NICKEL PLATING
CONTACT - BRASS, SILVER PLATING
INSULATOR - PTFE, NATURAL
WASHER - STEEL, NICKEL PLATING
NUT-HEX - BRASS, NICKEL PLATING
MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -65 $ C TO +165 $
LOCK WASHER
C
3/4" HEX
THIRD ANGLE PROJ.
REV
REVISIONS
--
D
RELEASE TO MFG.
DESCRIPTION
DATE
REDRAWN IN PRO-E & COD SHEET ADDED
6/1/15
--
ECO
50343
--
APPR
AAP
--
1.134 REF
0.093 MAX
PANEL THICKNESS
3/4" HEX
2.
3.
PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 83-878-RFX , AND DATE CODE"
5/8-24NEF-2A THREAD
0.620 REF
SCALE
1.500
0.132 REF
INTERFACE PER
UHF JACK
0.630
-0.000
+0.005
0.285
-0.005
+0.000
RECOMMENDED MOUNTING
HOLE DIMENSIONS
0.568 REF
'D' FLAT

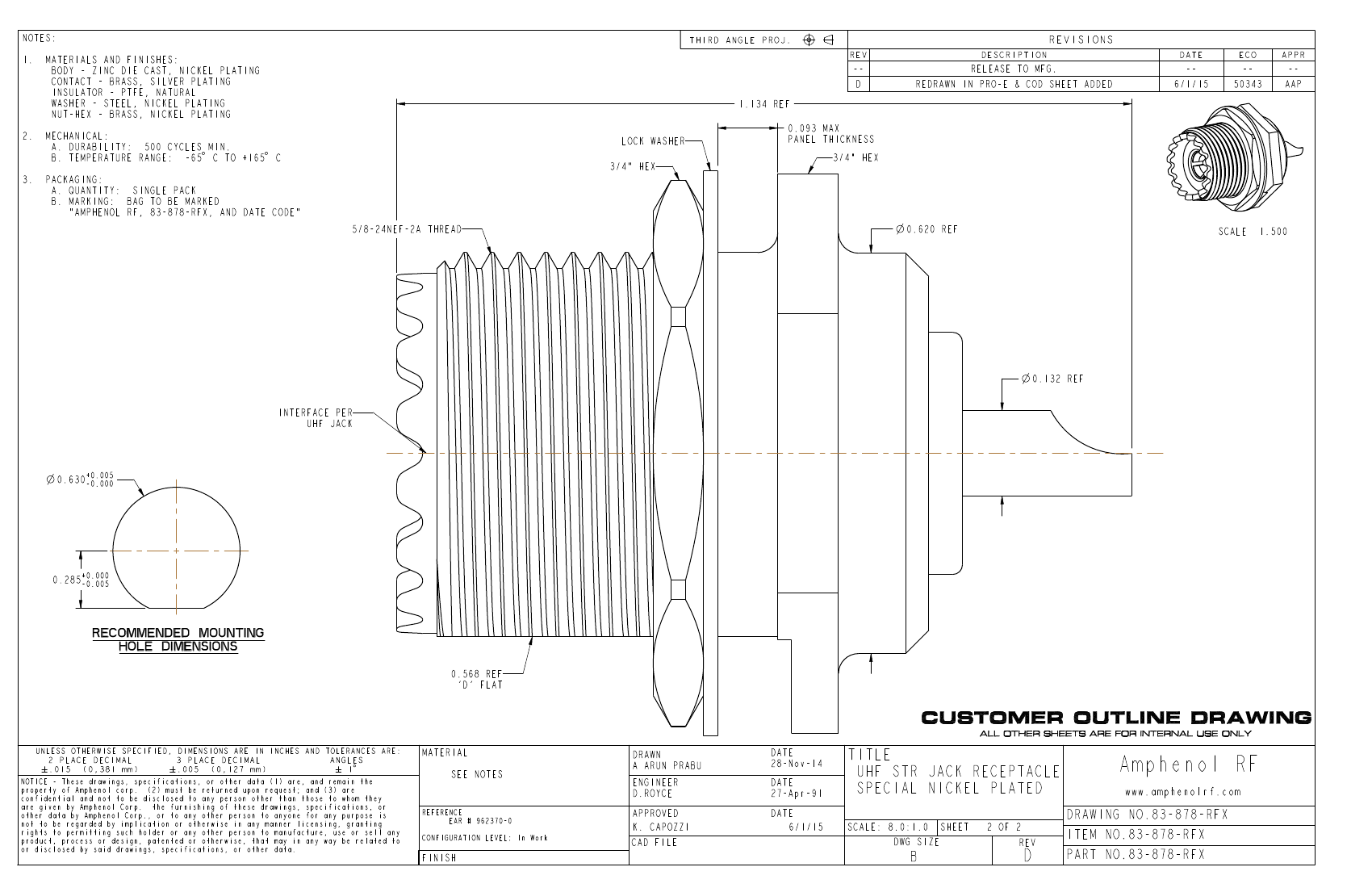

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
SEE NOTES
REFERENCE
EAR # 962370-0
CONFIGURATION LEVEL: In Work
DRAWN
A ARUN PRABU
ENGINEER
D.ROYCE
APPROVED
K. CAPOZZI
DATE
28-Nov-14
DATE
27-Apr-91
DATE
6/1/15
TITLE
UHF STR JACK RECEPTACLE
SPECIAL NICKEL PLATED
SCALE: 8.0:1.0
DWG SIZE
SHEET
2 OF 2
REV
Amphenol RF
www.amphenolrf.com
DRAWING NO. 83-878-RFX
FINISH
CAD FILE
B
D
ITEM NO. 83-878-RFX
PART NO. 83-878-RFX
