HCL
!"!"!"!"!"!"!"!
976 Series
Hermaphroditic Connector with Lenses
MAIN CHARACTERISTICS

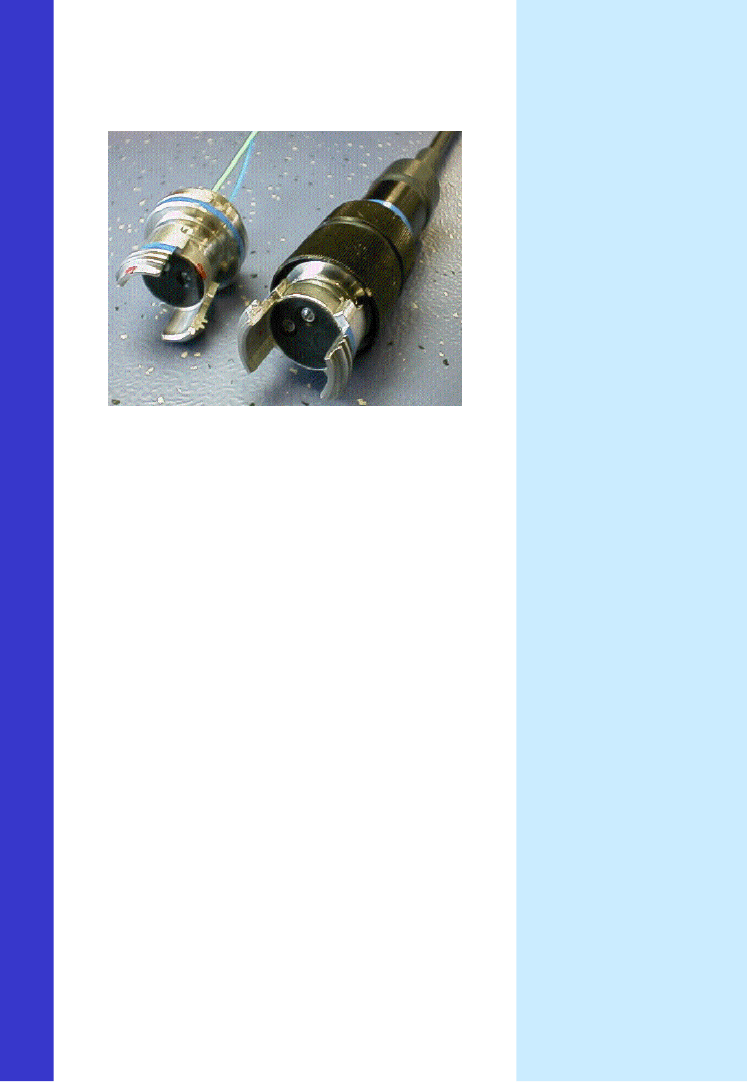

The Amphenol HCL Fibre
Optic expanded beam
connector is a
hermaphroditic miniature
connector for indoor and
external systems. The flat
front face of the connector
is easy to clean.
This product offers high performance optical multichannel
connections dust proof in a dense and lightweight design.
It allows daisy chains between multiple pieces of
equipment indoors or in outdoor environments.
The threaded antidelocking
coupling nut makes this
hermaphroditic connector
very resistant to vibration
and shock.
Technical description
• Small size (o.d. 22 mm) lens connector
• 2 and 4 channel Plugs, Pigtails and Harnesses
• 2 and 4 channel jam nut receptacles with 0,9mm or
1,6mm pigtails and compact rear allowing for high
electronic density inside the pannel
• Hermaphroditic interface
• Threaded coupling nut with antidelocking system
• 2 and 4 channel products are intermateable
• Large expanded beams
• Easy to clean flat front face with recessed protected
lenses
•Typical Insertion Loss : 1.2 dB @ 1300nm 50/125 fiber
• Durability : 1500 mating/unmating cycles
• Operating Temperature : -40°C, +85°C
• Water resistant
•Termination HCL tool kits available
• FTOS harness maintenance tool kits available
• HCL is interchangeable with the fiber to fiber connector
HCFF
• Tactical drums and accessories available
Applications
• Army, Navy and Airforce
optical networks
• Light tactical
transmission links
• Shelter equipment
• Base Stations
• Industrial machine
networks
Amphenol
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. E504/A . Printed in France by Amphenol Socapex.
HCL
!"!"!"!"!"!"!"!
Line Drawings
(dimensions in mm)
HCL plug
976 Series
HCL receptacle
How to order :
HCL - XXX - XX - X - XX - X - XX - XXX
HCL : 976 series
Plug for tactical cable
: 06M
PPC: Plug protective cap
RPC: Receptacle protective
cap
All cables are tight jacket.
09 : O.D. buffered fiber 0.9 mm
16 : O.D. 1.6 mm
55 : O.D. tactical 5.5 mm
Other cables possible.
Y : 1300 nm
Z : 840 – 1300 nm
01 : 50/125 µm
02 : 62.5/125 µm
Front jam nut receptacle
with pigtails
: 07P
Straight backshell
: 00
Number of channel
2 channels : 2
4 channels : 4
Amphenol
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. E504/A . Printed in France by Amphenol Socapex.
