83884ML004E Overview

Board Connector, 84 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug,

83884ML004E Parametric

Parameter Name	Attribute value
Objectid	1873775361
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	84
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

CONNECTRAL

838N-839 Series

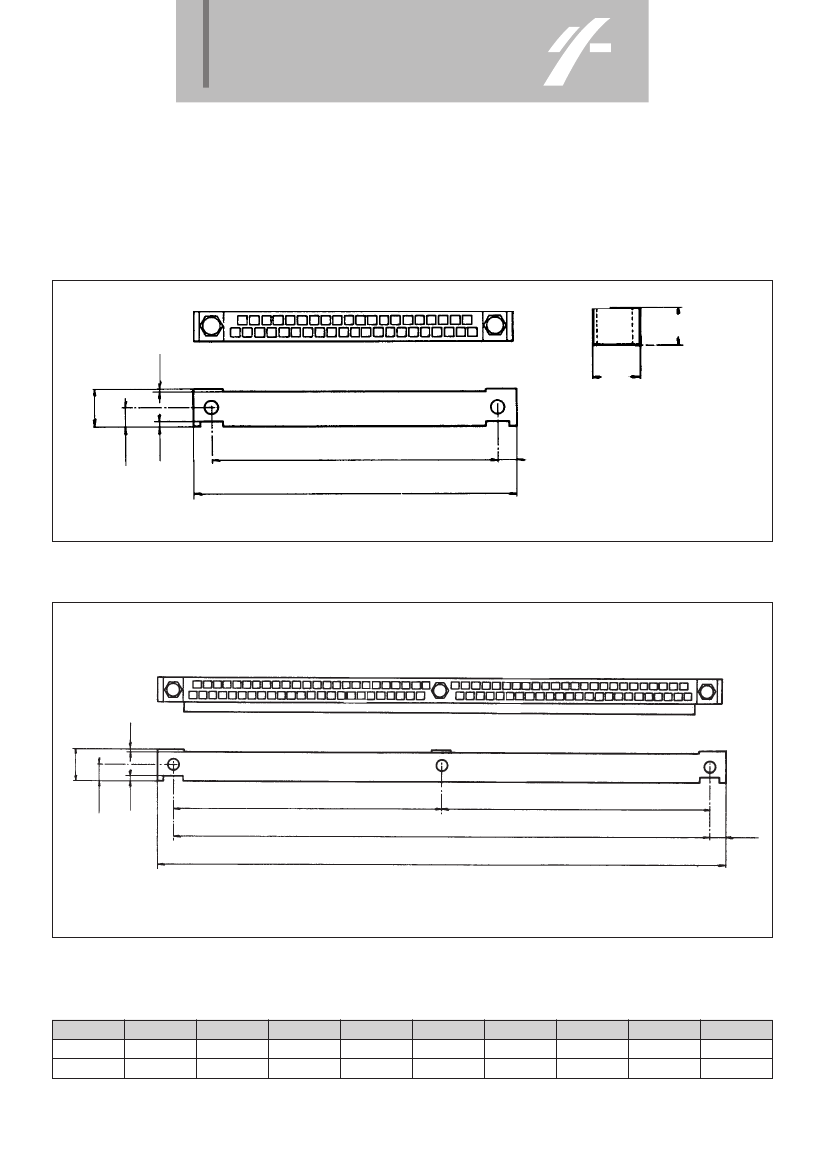

Description

Applications

Indirect P.C.B. connector for all

purposes in electronic area

• Include two alternate rows of contacts with

a 2.54 mm staggered pitch, that is to say, a

1.27 mm pitch.

Standards

UTE N.F.C. 93424

He 801 - He 802 (838N)

He 804 - He 805 (839)

Characteristics

• Insulator :

in diallyl phtalate category UL 94 VO

• Guides : stainless steel

• Contacts :

stamped monobloc in copper alloy

• Plating : gold over nickel underlayer

• Nominal voltage : 1000 V Rms at 50 Hz

•

Limit voltage : 1000 V Rms

Nominal current per contact : 3A

Contact resistance :

≤

12 mΩ

Insulation resistance : 5000 MΩ

Insertion force per contact : 1.6 N maxi

Extraction force per contact : 0.14 N mini

Climatic category :

- He 801 - He 804 : 434 (-55°C +125°C)

- He 802 - He 805 : 655 (-25°C +85°C)

Ordering information

basic series

838 - 839

size

type of contact

class

17-29-33-41-53-65-72-84-96

M -

male

F -

female

without code -

standard plating 500 matings min.

code 3 -

plating 0.8 microns Au

code 6 -

standard plating 100 matings min.

For other types of plating please consult us.

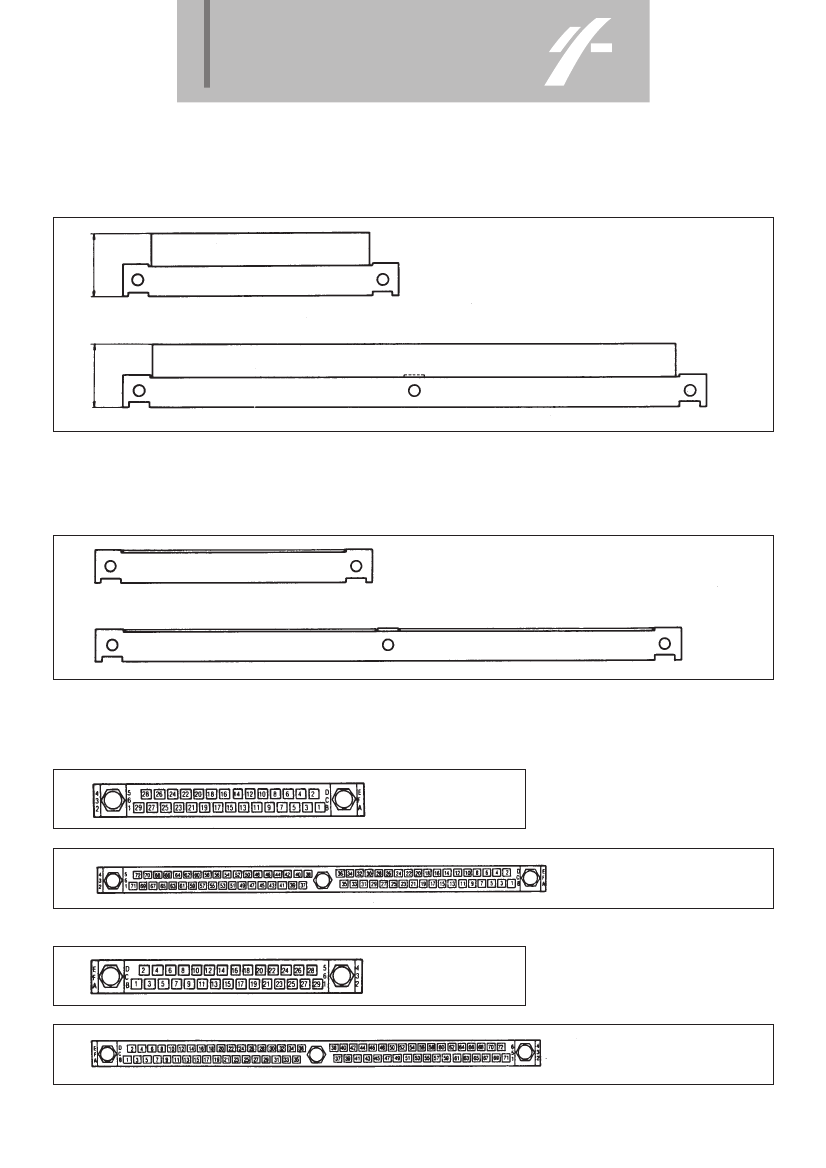

type of guides + marking : see below table

N -

for 838 N series only

P -

with removable back seal

T -

with compound back seal operating temp

-55°C +175°C

R -

with supporting bar for 72 - 84 - 96 sizes

E -

with electrolytic tinned exit lead

838

•

001

variants

specifications

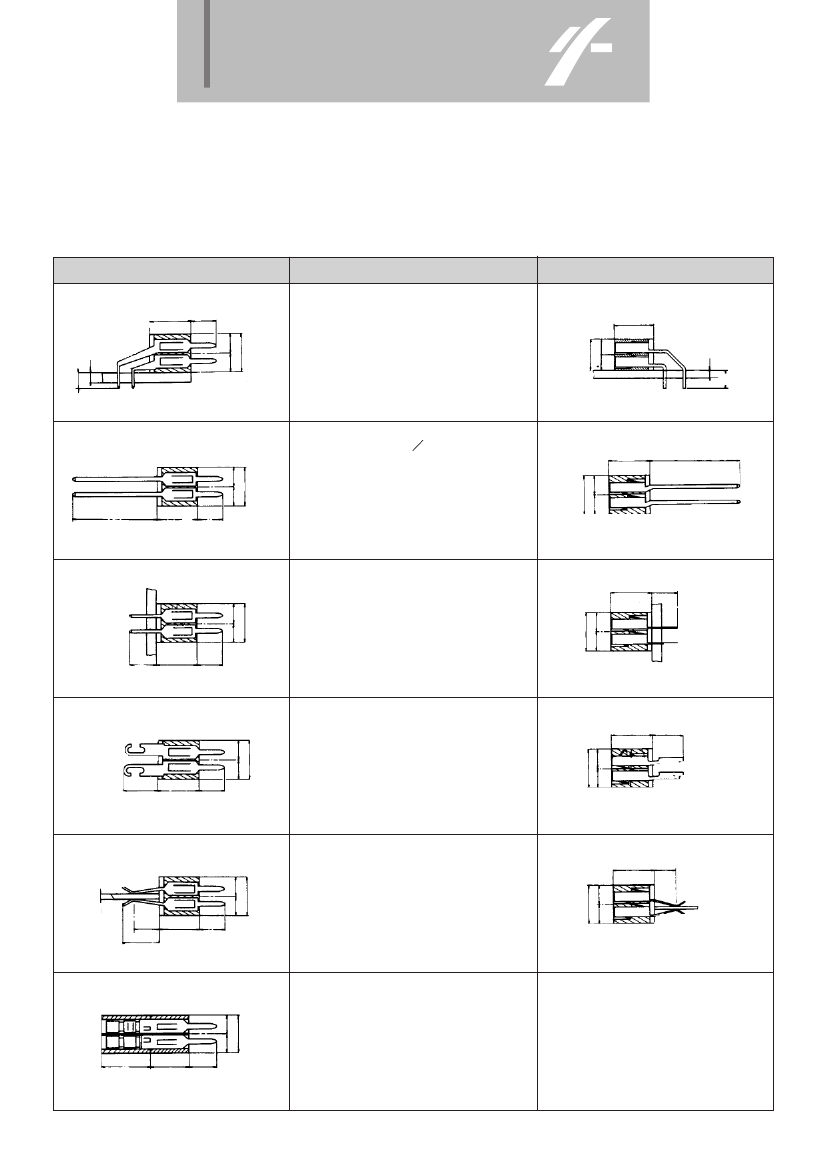

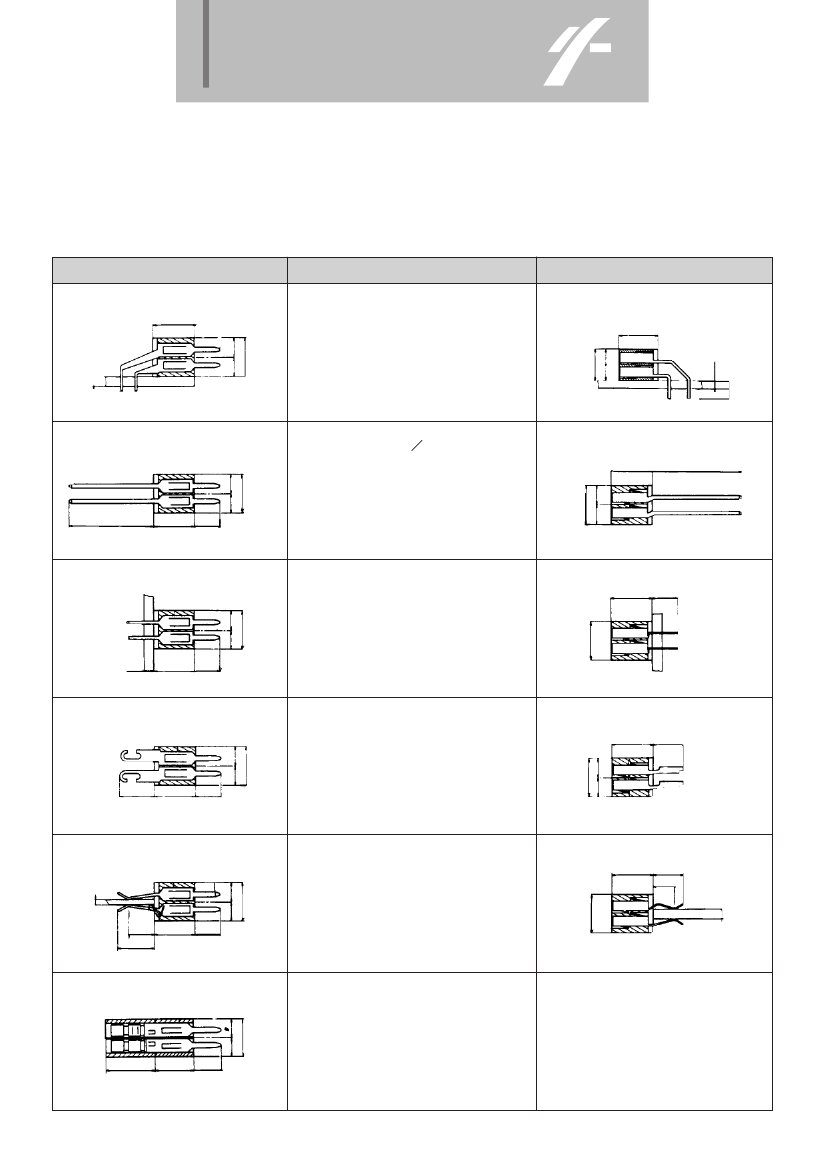

Matings in conformance with the UTE 93424 standard

UTE-NF.C

93 424

Model of the norm UTE 93424

U.T.E.

Contacts

Connectral

Contacts

(1)

(2)

HE 804 HE 801

HE 805 HE 802

Sockets :

female guides

Plugs : male guides

HE 801 - HE 802

(F) Y

(F) L

(M) Y

(M) L

(F) Uc (M) Uc

(F) U

(M) U

(F) Y

(F) L

HE 804 - HE 805

(M) Y

(M) L

(F) Ud (M) Uc

(F) U

(M) U

002

028

002

028

(M) Z-Y-W-S

(F) Z-Y-W

(M) Z-Y-W-S

(R) Z-Y-W

(M) Z-Y-W-S

(F) Z-Y-W

(M) Z-Y-W-S

(F) Z-Y-W

001

Nota :

(1) Connector type as per UTE 93 424 standard : EN : male socket - ES : female socket - FB - FC - FD : female plugs - FP : male plug

(2) Variant: Type of guides + marking

478

83884ML004E Related Products

	83884ML004E	83965FY-001P	83965ML-002P	83829ML004E
Description	Board Connector, 84 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug,	Board Connector, 65 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Board Connector, 65 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 29 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug,
Reach Compliance Code	compliant	unknown	unknown	compliant
Body/casing type	PLUG	SOCKET	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	FEMALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	84	65	65	29
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	-	839	839	838
