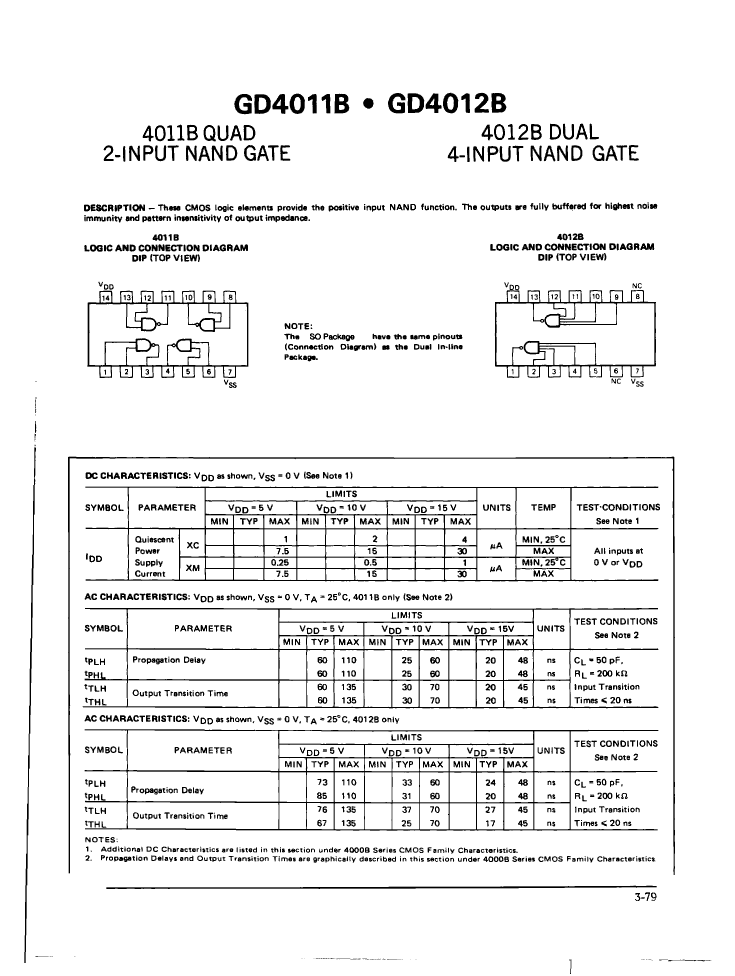

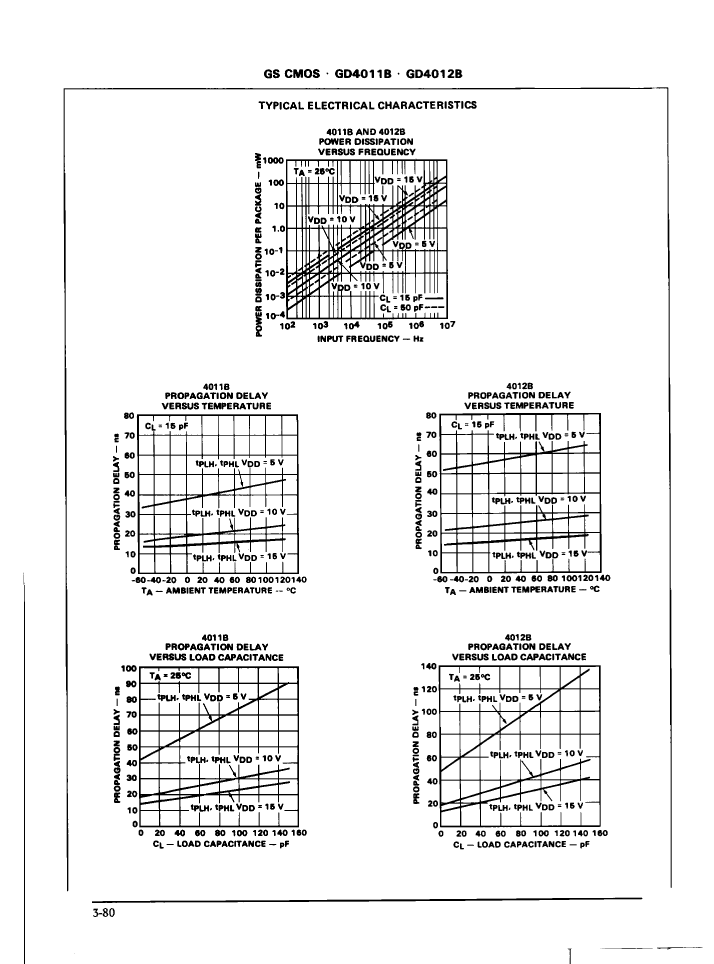

NAND Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDSO14,
| Parameter Name | Attribute value |
| Maker | Goldstar Electron Co., Ltd. |
| Reach Compliance Code | unknown |
| series | 4000/14000/40000 |
| JESD-30 code | R-PDSO-G14 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | NAND GATE |
| Number of functions | 2 |
| Number of entries | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 110 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 15 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| GD4012BD | GD4012B | GD4012BJ | GD4011B | GD4011BJ | GD4011BB | GD4011BD | |
|---|---|---|---|---|---|---|---|
| Description | NAND Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDSO14, | NAND Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDIP14, | NAND Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, CDIP14, | NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDIP14, | NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, CDIP14, | NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDIP14, DIP-14 | NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDSO14, |
| Maker | Goldstar Electron Co., Ltd. | Goldstar Electron Co., Ltd. | Goldstar Electron Co., Ltd. | Goldstar Electron Co., Ltd. | Goldstar Electron Co., Ltd. | Goldstar Electron Co., Ltd. | Goldstar Electron Co., Ltd. |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| series | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 |
| JESD-30 code | R-PDSO-G14 | R-PDIP-T14 | R-CDIP-T14 | R-PDIP-T14 | R-CDIP-T14 | R-PDIP-T14 | R-PDSO-G14 |
| Logic integrated circuit type | NAND GATE | NAND GATE | NAND GATE | NAND GATE | NAND GATE | NAND GATE | NAND GATE |
| Number of functions | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Number of entries | 4 | 4 | 4 | 2 | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| propagation delay (tpd) | 110 ns | 110 ns | 110 ns | 110 ns | 110 ns | 110 ns | 110 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| Minimum supply voltage (Vsup) | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | NO | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | - | 50 pF |
