DL16SNE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > DL16SNE

Preview

DL16SNE: DescriptionCIT SWITCH; File Size394KB，4 Pages; ManufacturerCIT; Websitehttp://www.citswitch.com/

Download Datasheet View All

DL16SNE Overview

CIT SWITCH

Preview

Download Datasheet

View All

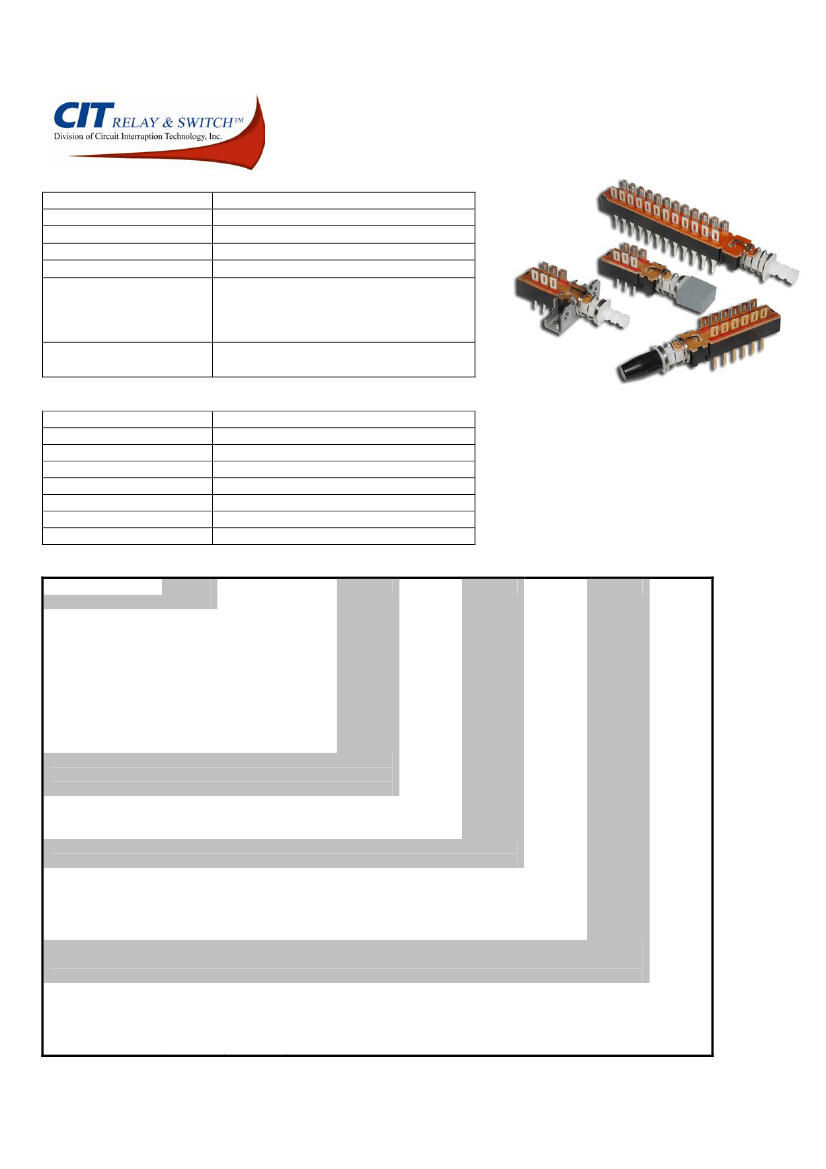

SPECIFICATIONS

Electrical Ratings

Electrical Life

Contact Resistance

Dielectric Strength

Insulation Resistance

Operating Force

See Contract Options

100,000 cycles typical

< 50 mΩ max initial @ 2-4VDC, 100mA

2000Vrms min

> 100MΩ min

2 Pole: 350 +/- 100gF, 200 +/- 100gF

4 Pole: 450 +/- 100gF, 400 +/- 100gF

6 Pole: 550 +/- 100gF, 450 +/- 100Gf

8~16 Pole : 650 +/- 150gF

-40°C to 85°C

Operating Temperature

Storage Temperature

MATERIALS

←

RoHS COMPLIANT

Actuator

Housing

Terminal Base

Contacts

Terminals

Chassis

Spring

Latching Pin

POM

Phenolic

Phosphor Bronze, Ag or Au+Ni plated

Brass, Ag or Au+Ni plated

Steel

ORDERING INFORMATION

Series:

Number of Poles:

2 = DPDT

4 = 4PDT

6 = 6PDT

8 = 8PDT

10 = 10PDT

16 = 16PDT

** stacking switch part numbers are:

DL2LAQ/4LAQ (Soft touch = DL2SLAQ/4SLAQ)

DL2LAQ/6LAQ (Soft touch = DL2SLAQ/6SLAQ)

Actuation Force Options:

None = Standard Force

S = Soft Touch

Switch Function:

N = Non-latching

L = Latching

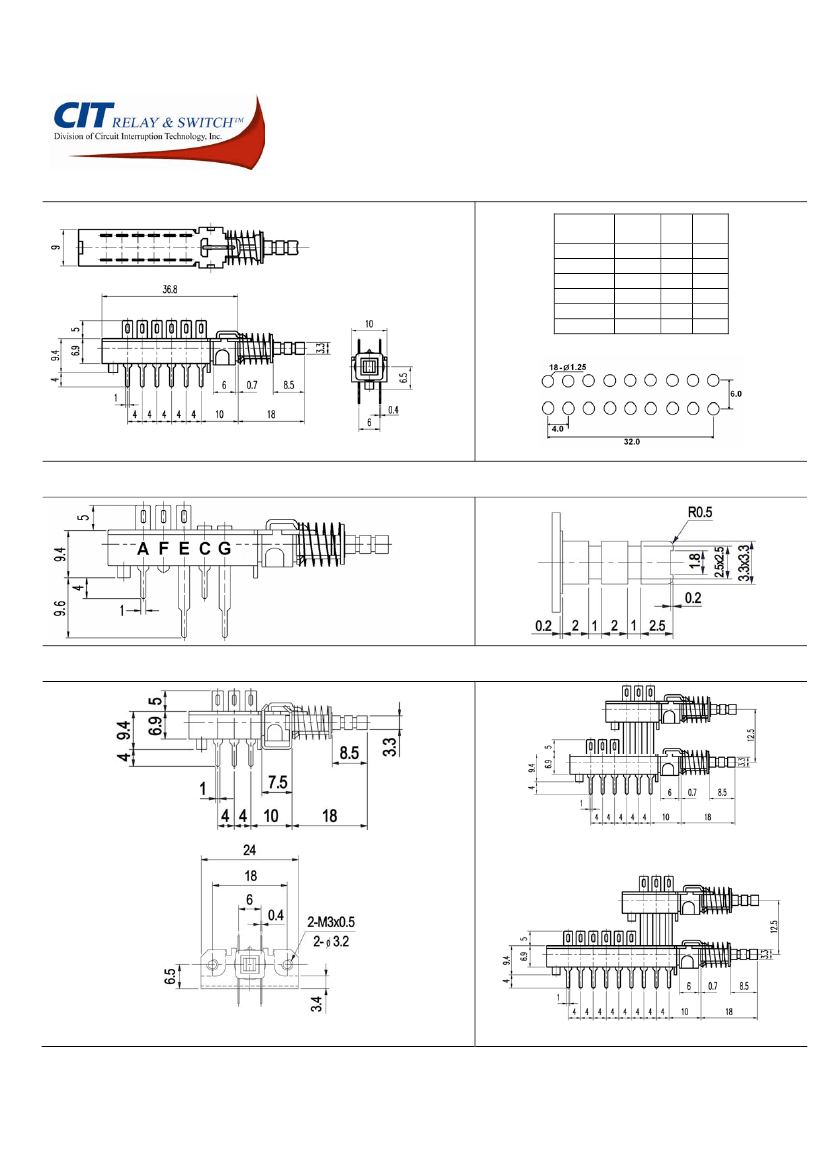

Terminal Options:

A, F, E, C, G

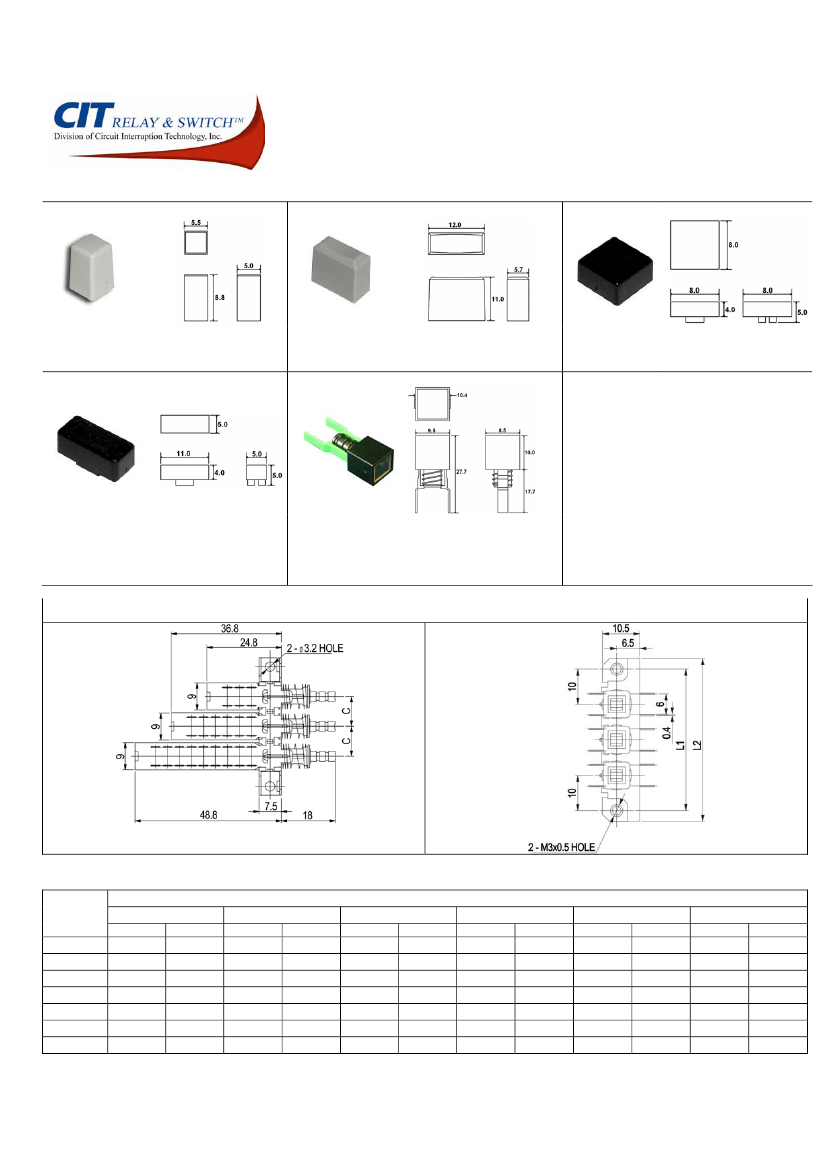

Mounting Options:

Blank = No Chassis (standard)

B = Mounting Chassis, Single Stage, 3.2mm dia Mounting Holes

C = Mounting Chassis, Single Stage, M3X0.5 Threaded Mounting Holes

** Multi-Stage Switch Assembly Part Numbers Assigned At Factory

Contact Material:

Q = Silver

R = Gold

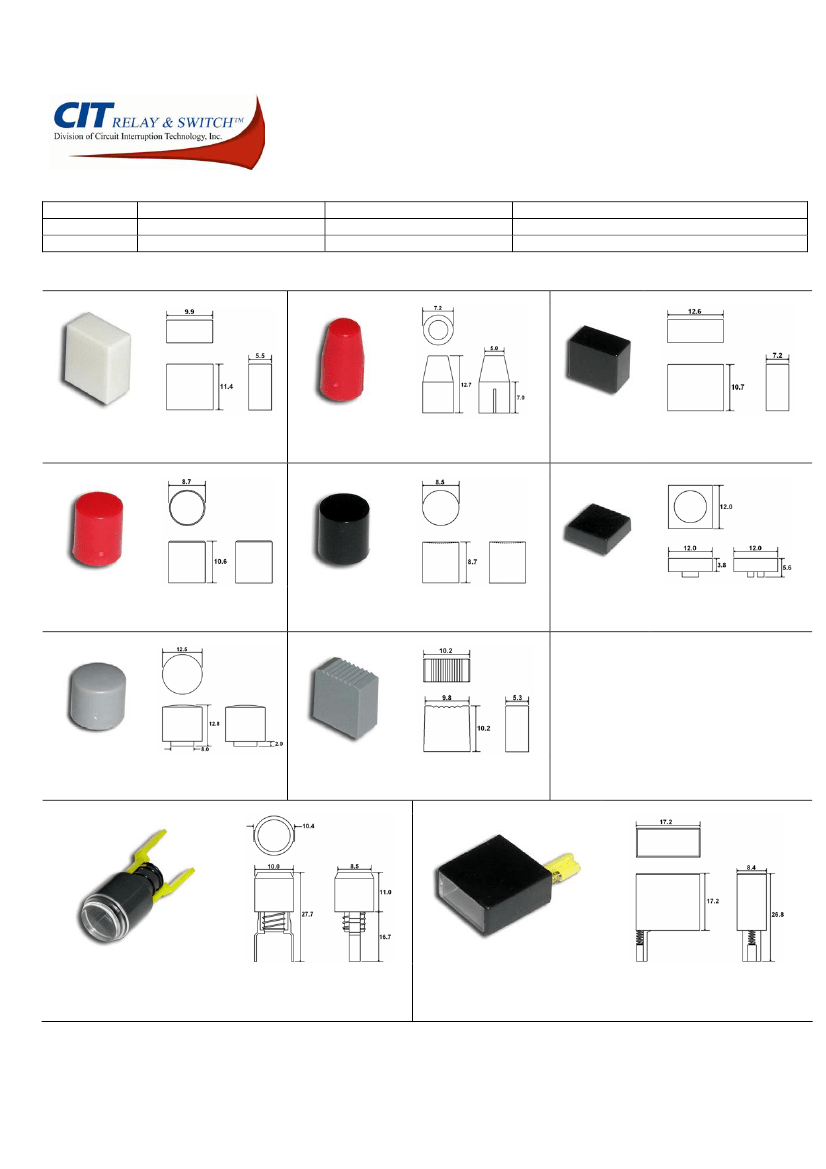

Caps:

C14

C20

C28

Blank = No Cap

C15

C21

C29

C11

C16

C22

C12

C18

C26

**See Cap Options for color availability

C13

C19

C27

C13

www.citswitch.com

page

129

phone – 763.535.2339 fax – 763.535.2194
