88364-2051 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88364-2051

88364-2051: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

88364-2051 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug

88364-2051 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.216 inch
subject depth	0.177 inch
body length	0.496 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88364
Plug contact pitch	0.022 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.3594 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.4 A
reliability	COMMERCIAL
Terminal pitch	0.5588 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

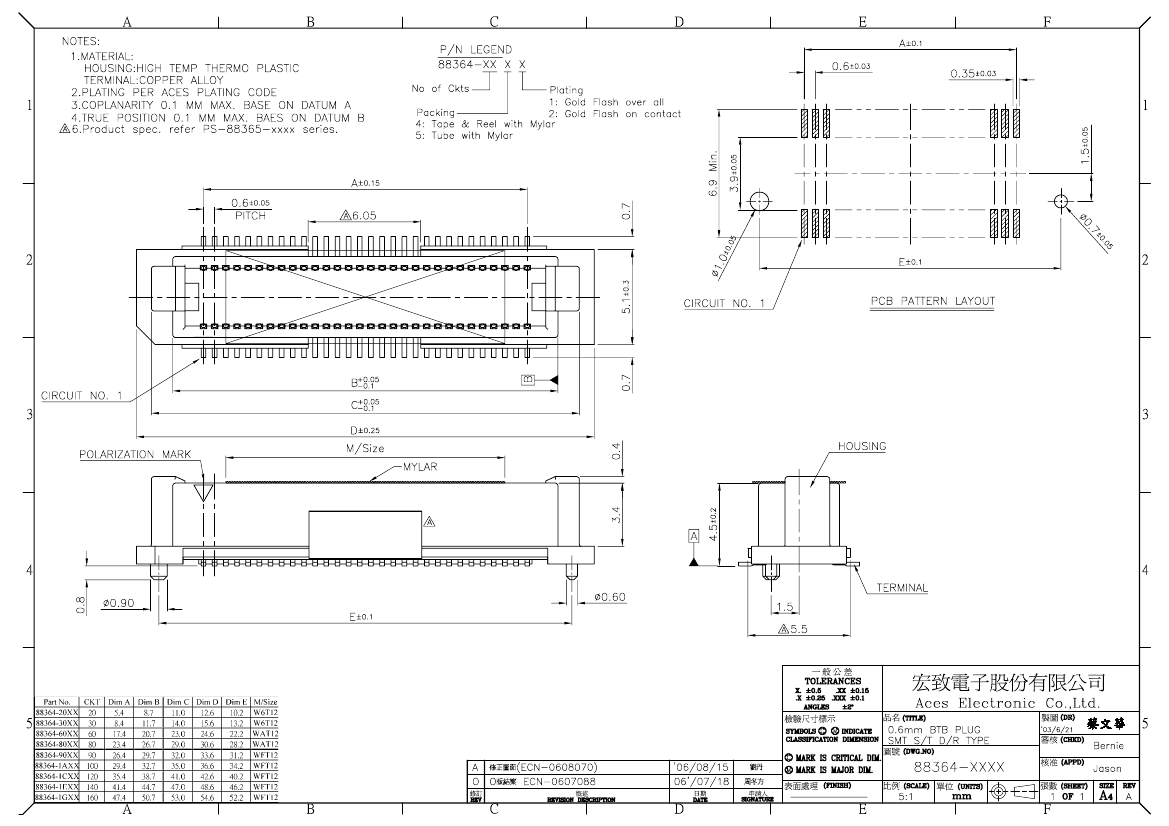

Preview

Download Datasheet

View All

88364-2051 Related Products

	88364-2051	88364-2052	88364-2041	88364-2042	88364-8042	88364-8051
Description	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.022 inch Pitch, Surface Mount Terminal, Locking, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.216 inch	0.216 inch	0.216 inch	0.216 inch	0.216 inch	0.216 inch
subject depth	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
body length	0.496 inch	0.496 inch	0.496 inch	0.496 inch	1.205 inch	1.205 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	88364	88364	88364	88364	88364	88364
Plug contact pitch	0.022 inch	0.022 inch	0.022 inch	0.022 inch	0.022 inch	0.022 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.3594 mm	5.3594 mm	5.3594 mm	5.3594 mm	5.3594 mm	5.3594 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5588 mm	0.5588 mm	0.5588 mm	0.5588 mm	0.5588 mm	0.5588 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	20	20	20	20	80	80
Maker	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	-	-
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99
