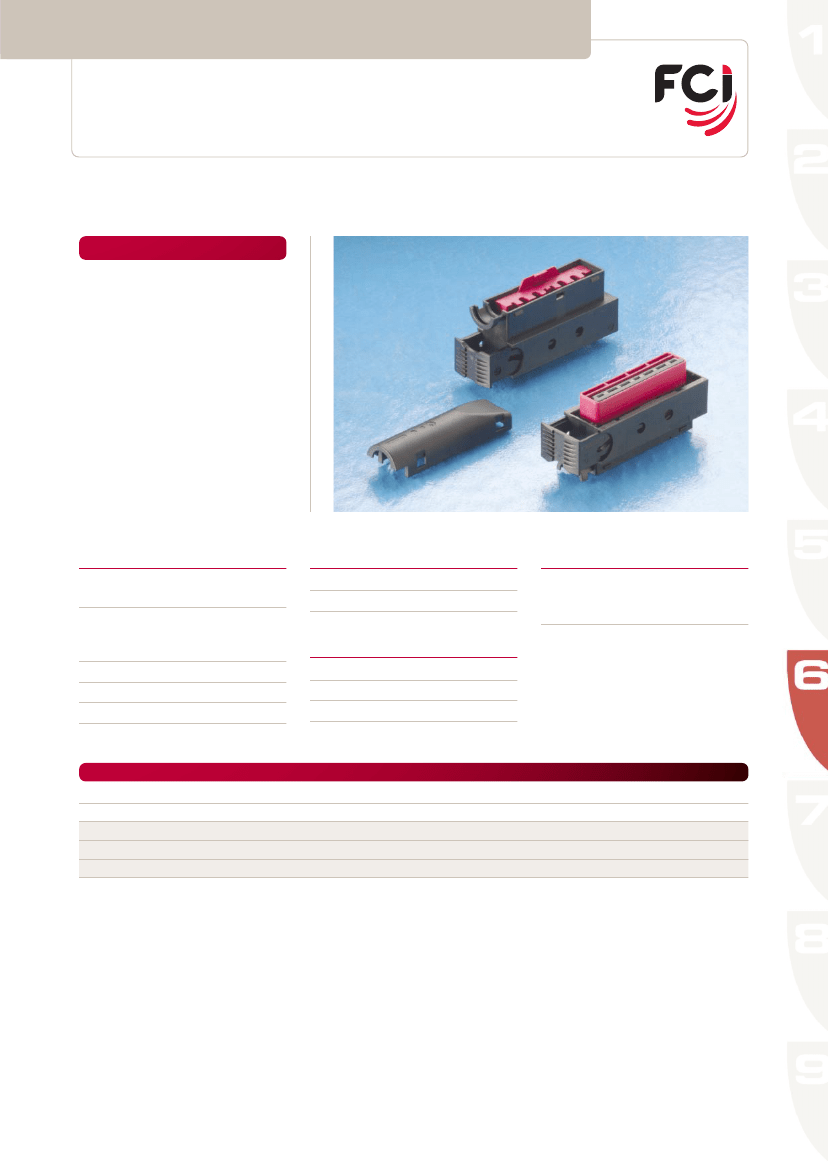

Engine Compartment Connectors
Component-to-wire connectors
1.5 mm / 2.8 mm / 5.2 mm / 5.8 mm terminals
7 & 8 position sealed female housing
Features
•
Single row connectors, mixed
•
•
•
loading
Waterproof application with single
wire seal (SWS)
Circumferential interface seal
7 way connector with terminal
position assurance (TPA) from front
side
8 way connector with terminal
position assurance (TPA) from rear
side
Locking cam secured in prefixed
position
Mechanical polarization
Cable protection cover
•
•
•
•
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
•
Interface seal:
PBT
Silicone
Connector compatibility
•
Usable terminals:
1.5 / 2.8 / 5.2 and 5.8 mm female
terminals
•
Contact retention force:
> 60 N for 1.5 and 2.8 mm
> 70 N for 5.2 and 5.8 mm
Tooling
•
TPA removal tool:
•
Terminal removal tool:
•
Cavity plug:
Consult us
Consult us
Consult us
•
Contact insertion force: Consult us
•
Connector mating force: Consult us
•
Sealing protection:
IPX 9 K
Part Numbers
3 043 06 01
3 099 07 01
3 034 11 01
3 099 10 09
3 099 07 01
No. of position
7
7
8
8
8
Terminal size
3 x 2.8 / 4 x 5.2 mm
4 x 1.5 / 4 x 5.8 mm
Type
Female housing
Cable protection cover
Female housing
Rear TPA
Cable protection cover
Colour
Black
Black
Black
Purple
Black
6.93
Engine Compartment Connectors
Component-to-wire connectors
1.5 mm / 2.8 mm / 5.2 mm / 5.8 mm terminals
7 & 8 position sealed female housing

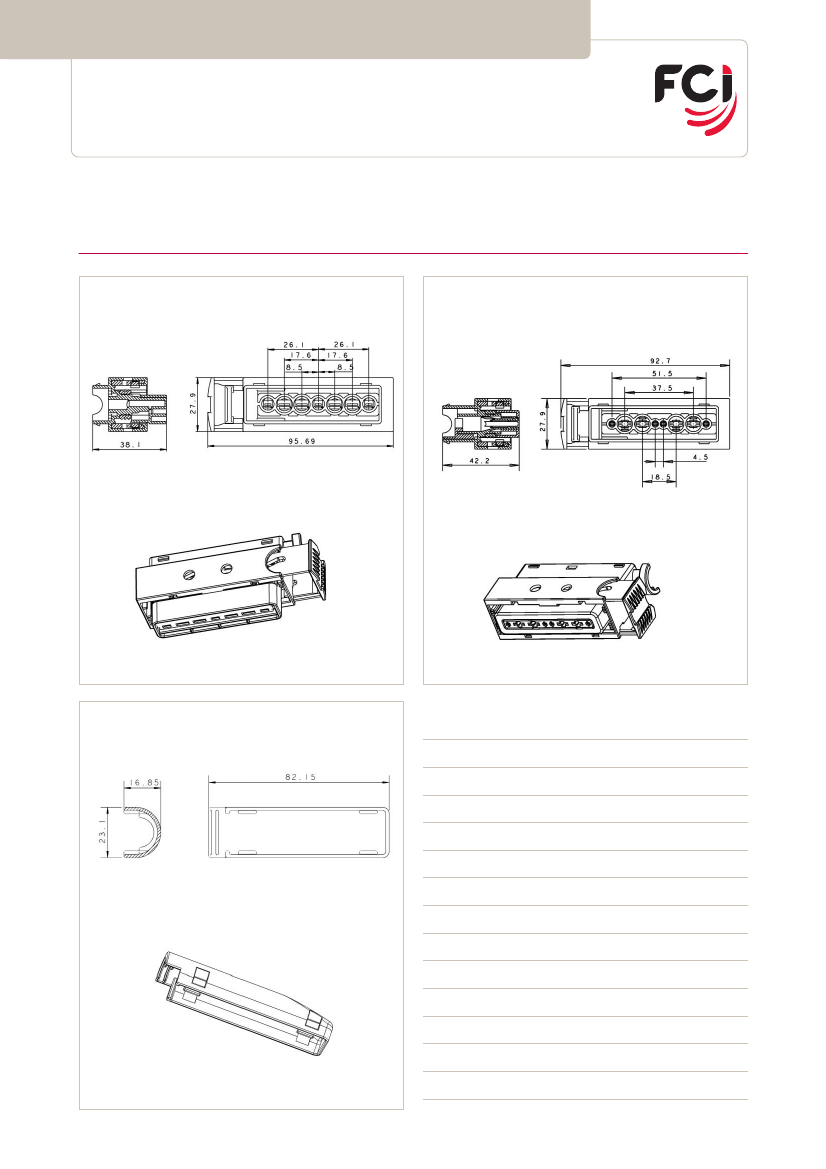

Dimensional characteristics
7 way female housing
8 way female housing
Cover
Notes:
6.94
