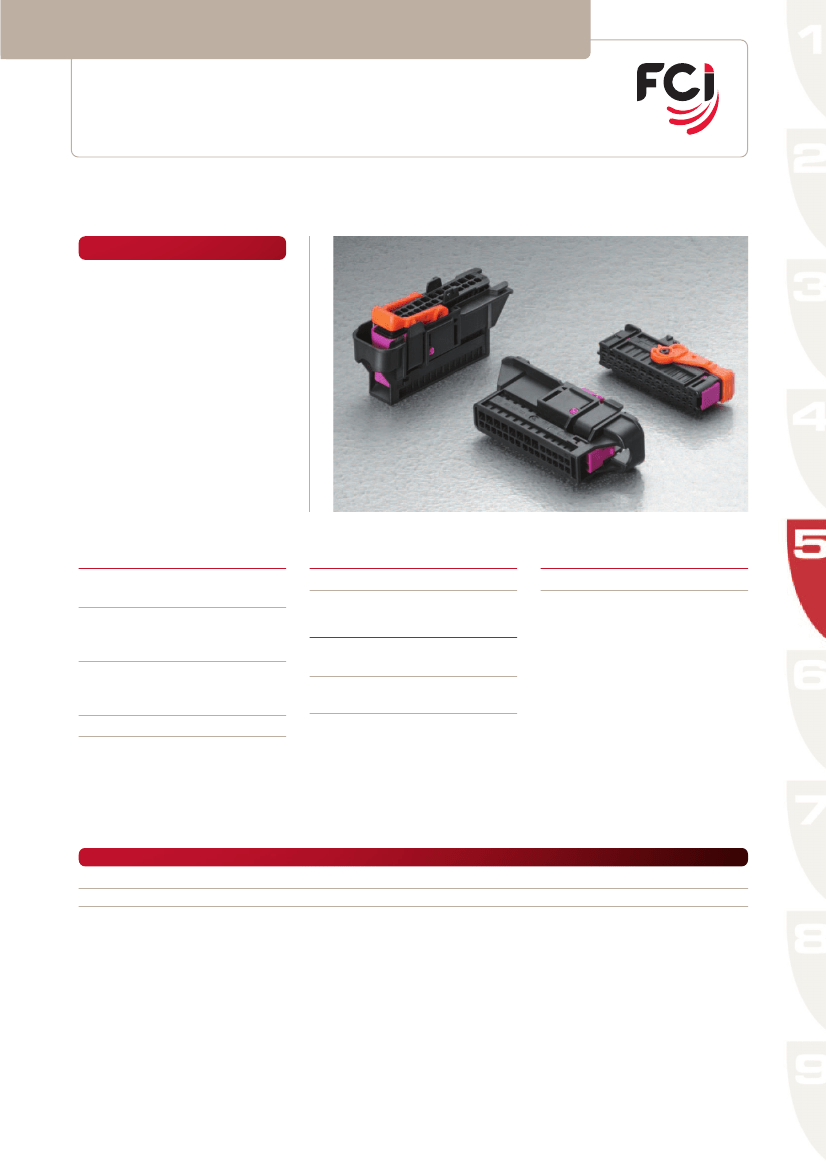

Harness Sectioning Connectors
Panel-through connectors
DCK / DCS-2
28 way connector system for 1.5 and 2.8 mm terminals
Features
•
28 position female housing
•
Locking lever assembled and
•
•
•
•
•
secured in prefixed position
28 position male housing
Connector position assurance
(CPA) in prefixed position
Lateral secondary lock for terminal
position assuance (TPA)
Mechanical polarization
Several colours possible
Performance characteristics
•
Temperature range:
from –40°C to +120°C
Construction
•
Housing material:
PBT
Tooling
•
Terminal removal tool: Consult us
•
Contact retention force:
> 55 N for 1.5 mm terminals
> 80 N for 2.8 mm terminals
Connector compatibility
•
Useable terminals: DCK 1.5 mm
and 2.8 mm female terminals
•
Contact insertion force:
< 10 N for 1.5 mm terminals
< 15 N for 2.8 mm terminals
•
Matable with:
DCS-2 1.5 mm
and 2.8 mm male terminals
•
Connector mating force:
< 100 N
Part Numbers
3 023 44 01
3 033 12 01
No. of pos.
28
28
Terminal size
20 x [1.5 mm] / 8 x [2.8 mm]
20 x [1.5 mm] / 8 x [2.8 mm]
Type
Female housing
Male housing
Colour
Black
Black
5.53
Rev 01/04
Harness Sectioning Connectors
Panel-trough connectors
DCK / DCS-2
28 way connector system for 1.5 and 2.8 mm terminals

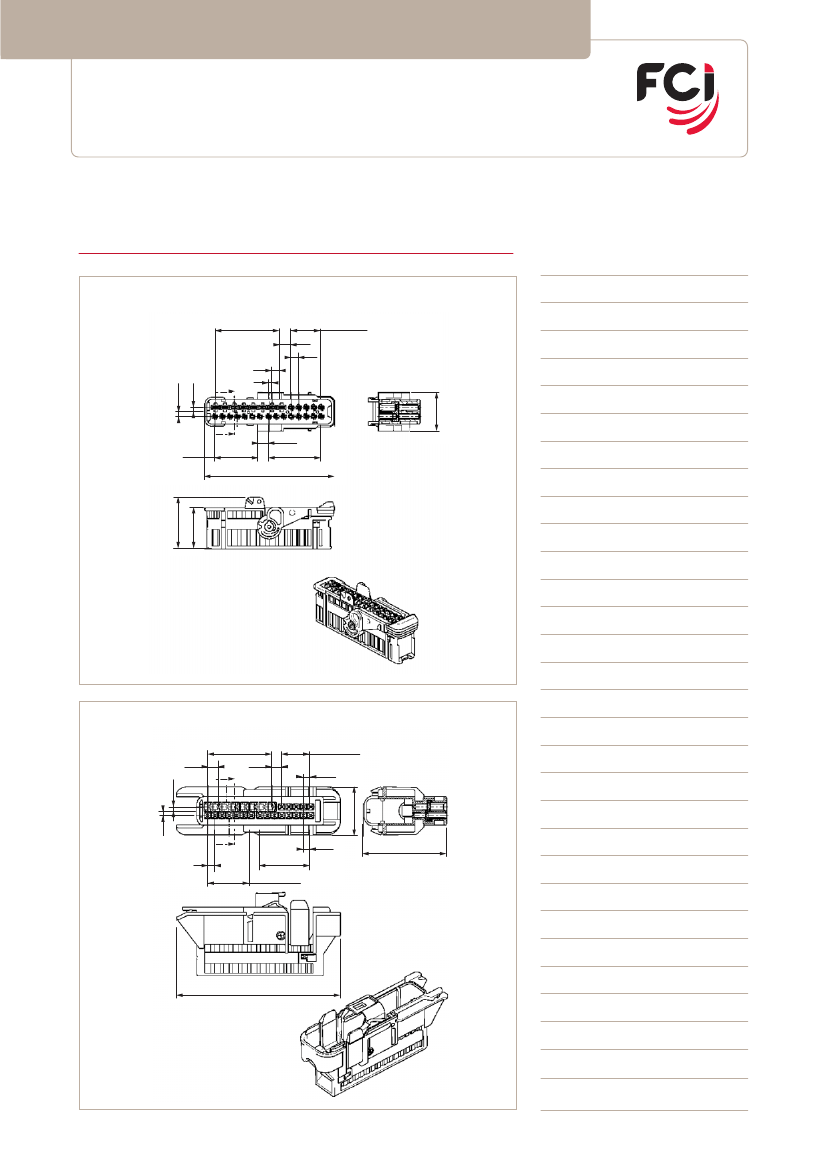

Dimensional characteristics
Notes :
Female housing
7x5.3=37.1
5.4
4.2
4x4.2=16.8
2.65
2.35
A
5.3
1.7
SECTION A-A
A
6x4.2=25.2
5.1
7x4.4=29.4
72.85
29.05
23
Male housing
7x5.3=37.1
4x4.2=16.8
5.3
2.35
B
5.4
4.2
SECTION B-B
2.65
4.2
B
4.2
7x4.2=29.4
28
48.5
6x4.2=25.2
95.1
21.6
5.54
Rev 01/04
