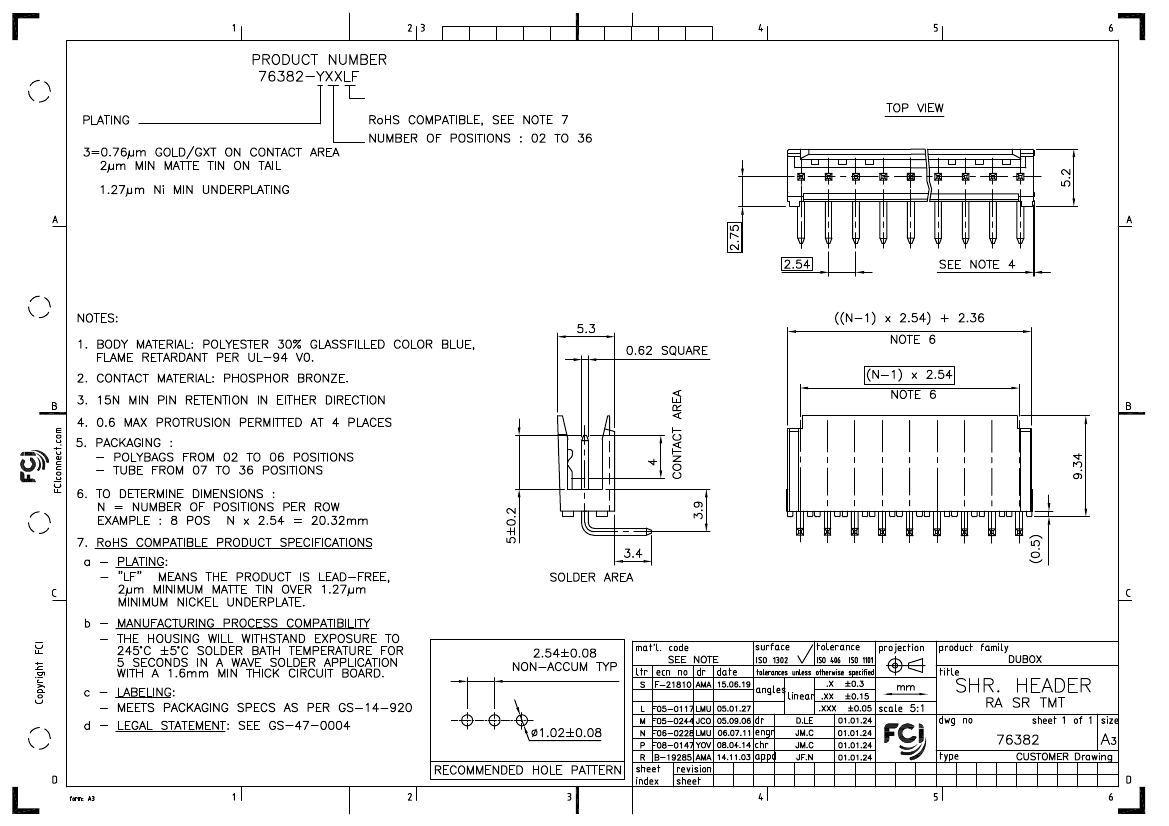

76382-336LF: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

76382-336LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76382-336LF	-	-	View	Buy Now

Board Connector, 36 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
body width	0.209 inch
body length	3.593 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)/GOLD FLASH OVER PALLADIUM NICKEL (30)
Contact completed and terminated	MATTE TIN (79) OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	76382
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

PDS: Rev :S

STATUS:Released

Printed: Sep 01, 2015
