RP
RP359 Series
RP359
3PHASE DELTA
TO 2500A
ROHS COMPLIANT
RADIUS POWER
Your Power Partner

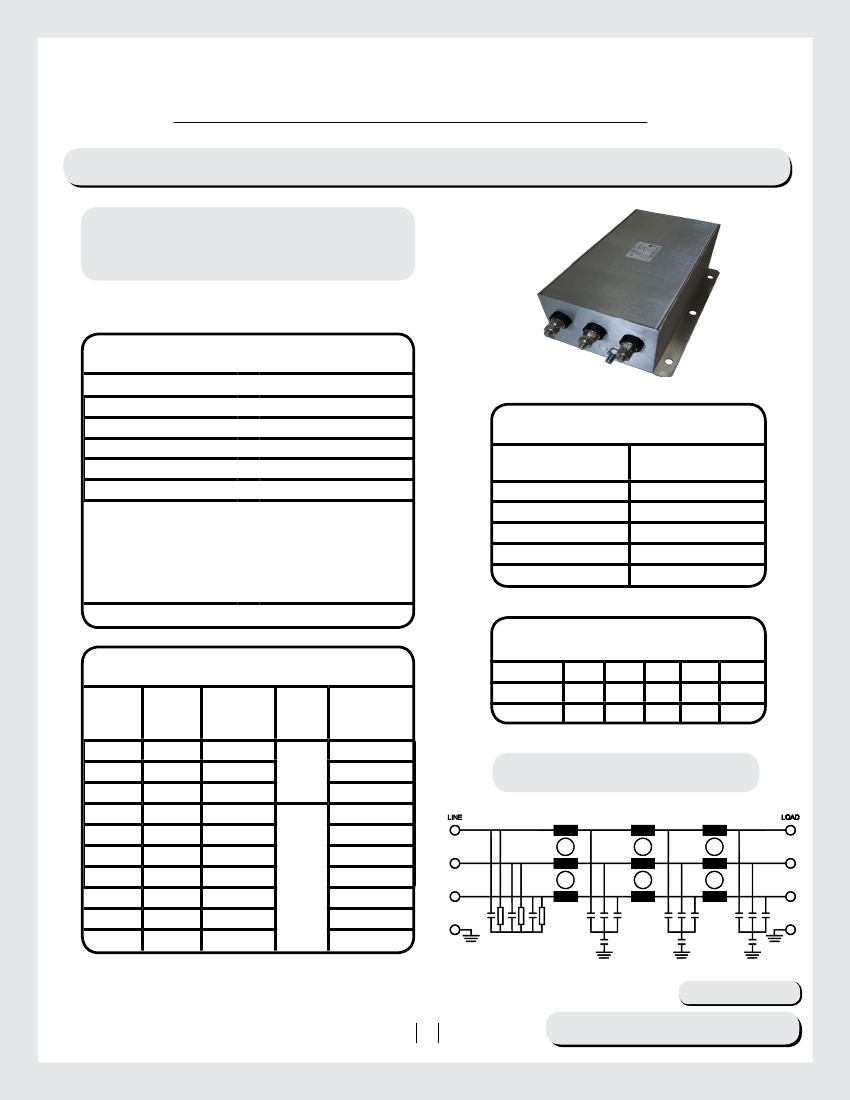

3-Phase Delta Compact Multi-Stage High Current EMI Power Line Filter
SPECIFICATIONS
Operating Freq.
Usable Freq.
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
:
:
:
:
:
:
:
50/60Hz
DC - 400Hz
520VAC (480V +10%)
-25 to 50C
25/100/21
3500VDC
S: 150/180/250A (M10)
B: 320/400A (6x25)
600A (8x25)
800/1000A (8x40)
1500A (10x60)
2500 (15x70)
cURus, EN60939
LEAKAGE CURRENT
Y-cap, nF
0
10
100
1000
2000
mA,
480V/60Hz
0
0.1
1
10
20
Safety Approvals
:
PART NUMBER/ ORDERING
RP359
-X
-Y
(Amps) (Ycap, nF)
150
180
250
320
400
600
800
1000
1600
2500
B
0
10
100
1000
2000
S
-T
Weight
LBS (KG)
Typ.
14.7 (6.7)
14.7 (6.7)
19.5 (8.8)
25.0 (11.3)
25.0 (11.3)
26.0 (11.8)
26.0 (11.8)
39.0 (17.7)
39.0 (17.7)
39.0 (17.7)
TYPICAL INSERTION LOSS, dB
(50/50ohm)
FREQ (MHz)
CM (dB)
DM (dB)
.15
65
65
.5
80
65
1
80
60
10
40
35
30
20
20
SCHEMATIC
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP359-600-100-B (600 Amps with 100nF Ycap)
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
www.radiuspower.com
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
80
RP
RP359 Series

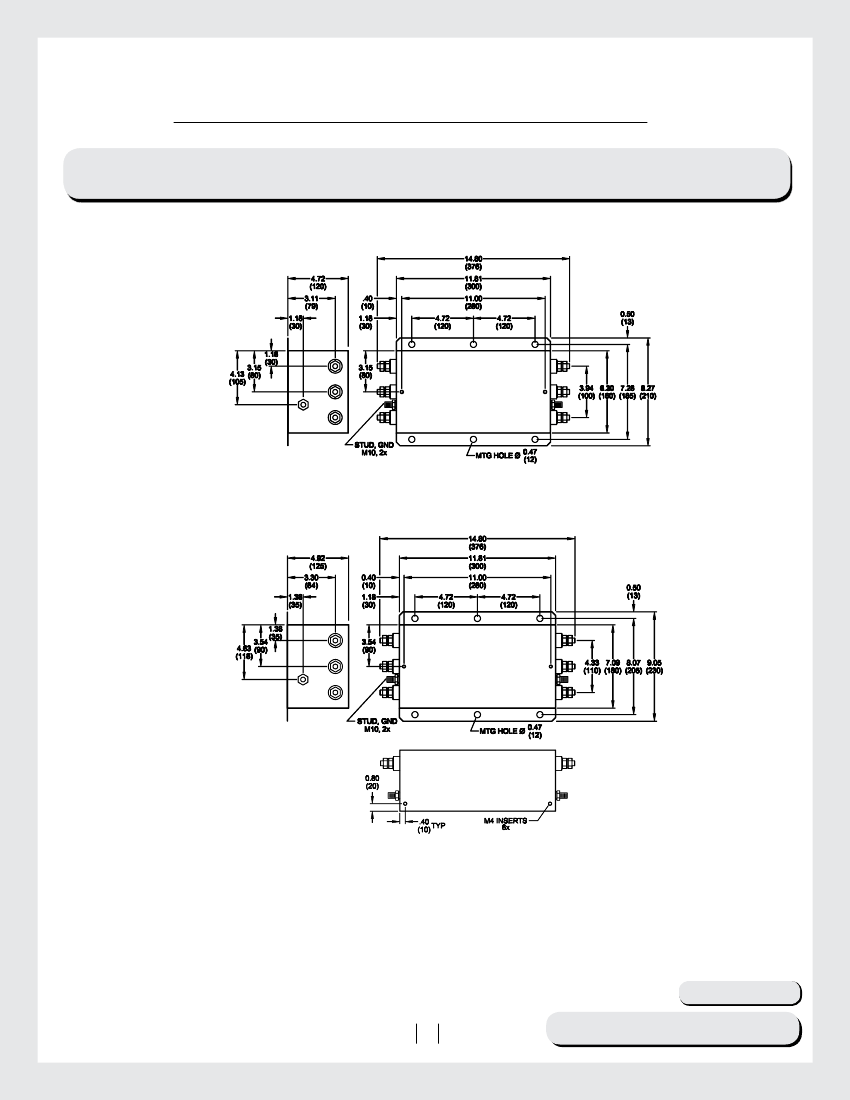

Mechanical Dimensions
150/180A
RADIUS POWER
Your Power Partner
250A
TYPICAL TOLERANCE: +/-0.02 (0.50)
M4 LOCATION TYP. FOR RP359 STUD VERSIONS ONLY
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
81
RP
RP359 Series

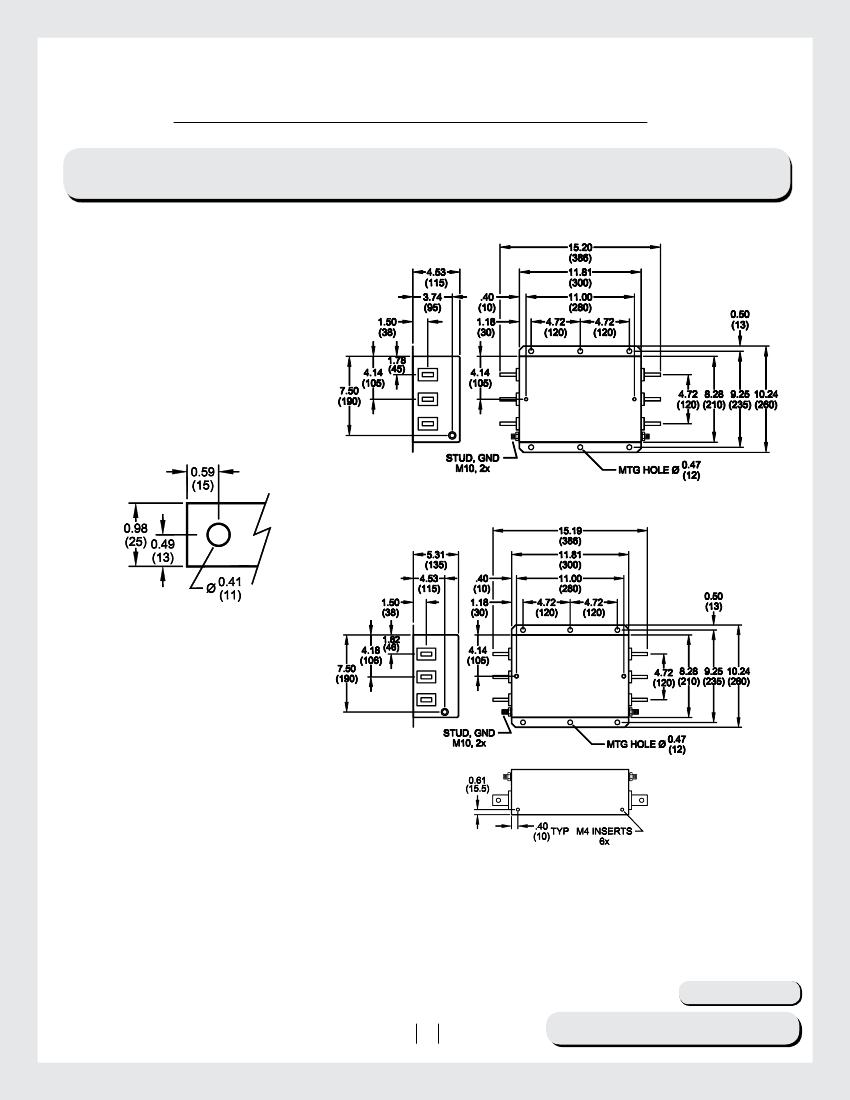

Mechanical Dimensions
320/400A
RADIUS POWER
Your Power Partner
BUS BAR DETAIL
600A
320/400A BUS BAR: 6x25
600A BUS BAR: 8x25
TYPICAL TOLERANCE: +/-0.02 (0.50)
M4 LOCATION TYP. FOR RP359 BUS BAR VERSIONS ONLY
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
82
RP
RP359 Series

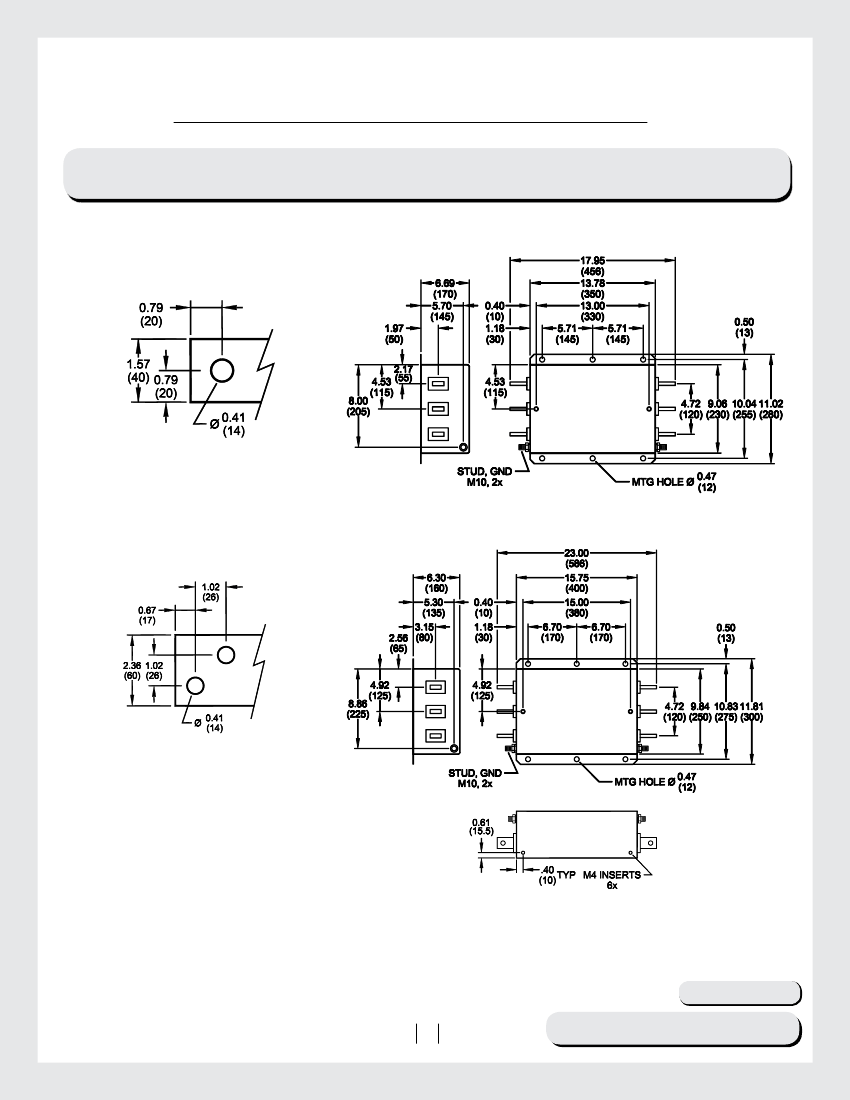

Mechanical Dimensions
BUS BAR DETAIL
RADIUS POWER
Your Power Partner
800/1000
800/1000A BUS BAR: 8x40
1600A
1600A BUS BAR: 10x60
TYPICAL TOLERANCE: +/-0.02 (0.50)
M4 LOCATION TYP. FOR RP359 BUS BAR VERSIONS ONLY
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
83
RP
RP359 Series

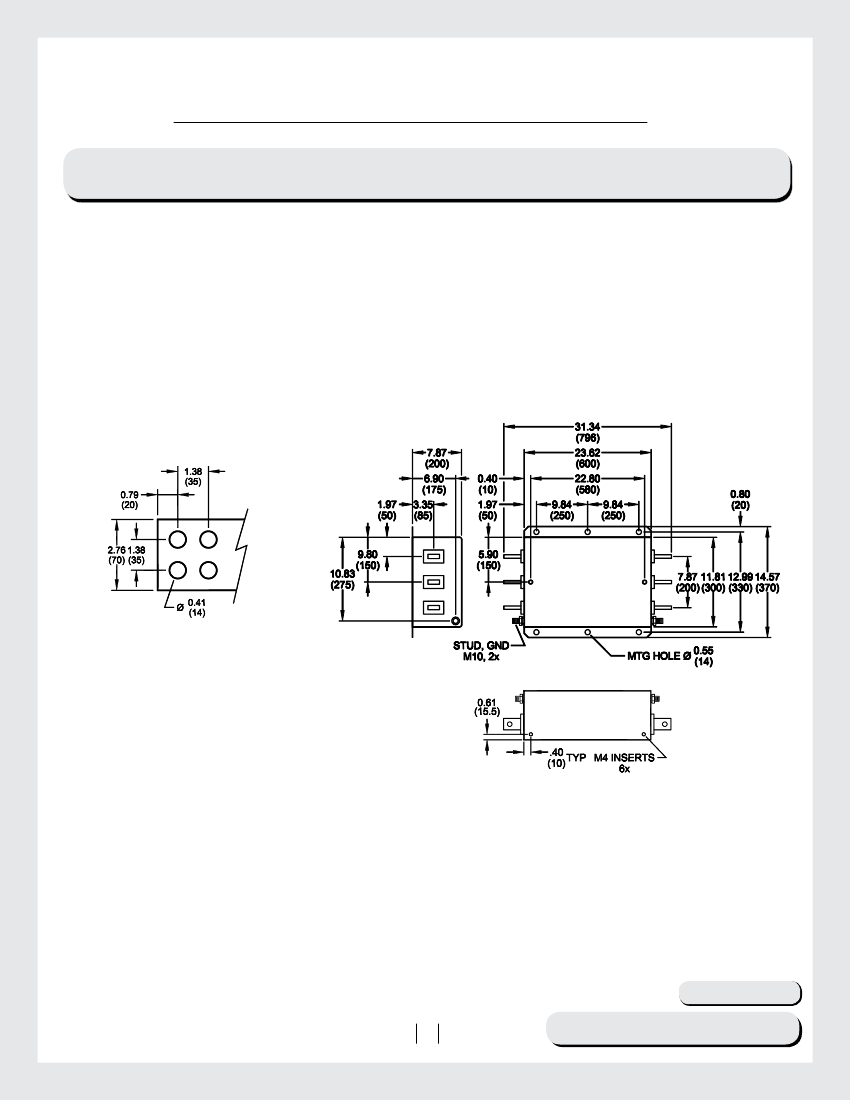

Mechanical Dimensions
RADIUS POWER
Your Power Partner
2500A
BUS BAR DETAIL
2500A BUS BAR: 15x70
TYPICAL TOLERANCE: +/-0.02 (0.50)
M4 LOCATION TYP. FOR RP359 BUS BAR VERSIONS ONLY
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
84
