31-4238: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size883KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

31-4238 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-4238	-	-	View	Buy Now

31-4238 Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle

31-4238 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 3 GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

NOTES:

1. MATERIALS AND FINISHES:

BODY - BRASS, SILVER PLATING

CONTACT - BeCu, GOLD PLATING

INSULATOR - PTFE

GLASS SEAL : KOVAR STEEL, GOLD PLATING

2.

ELECTRICAL:

A. IMPEDANCE: 50 OHM

B. DIELECTRIC WITHSTANDING VOLTAGE : 1500 VRMS

MECHANICAL:

A. DURABILITY: 500 CYCLES MIN.

B. TEMPERATURE RANGE : -65°C TO +165°C

C. SOLDER JOINT MUST WITHSTAND A LEAKAGE RATE OF 1 X 10

OF TRACER GAS AT ATMOSPHERIC PRESSURE.

4.

PACKAGING:

A. QUANTITY: SINGLE PACK

B. MARKING: BAG TO BE MARKED

"AMPHENOLRF, 31-4238 , AND DATE CODE"

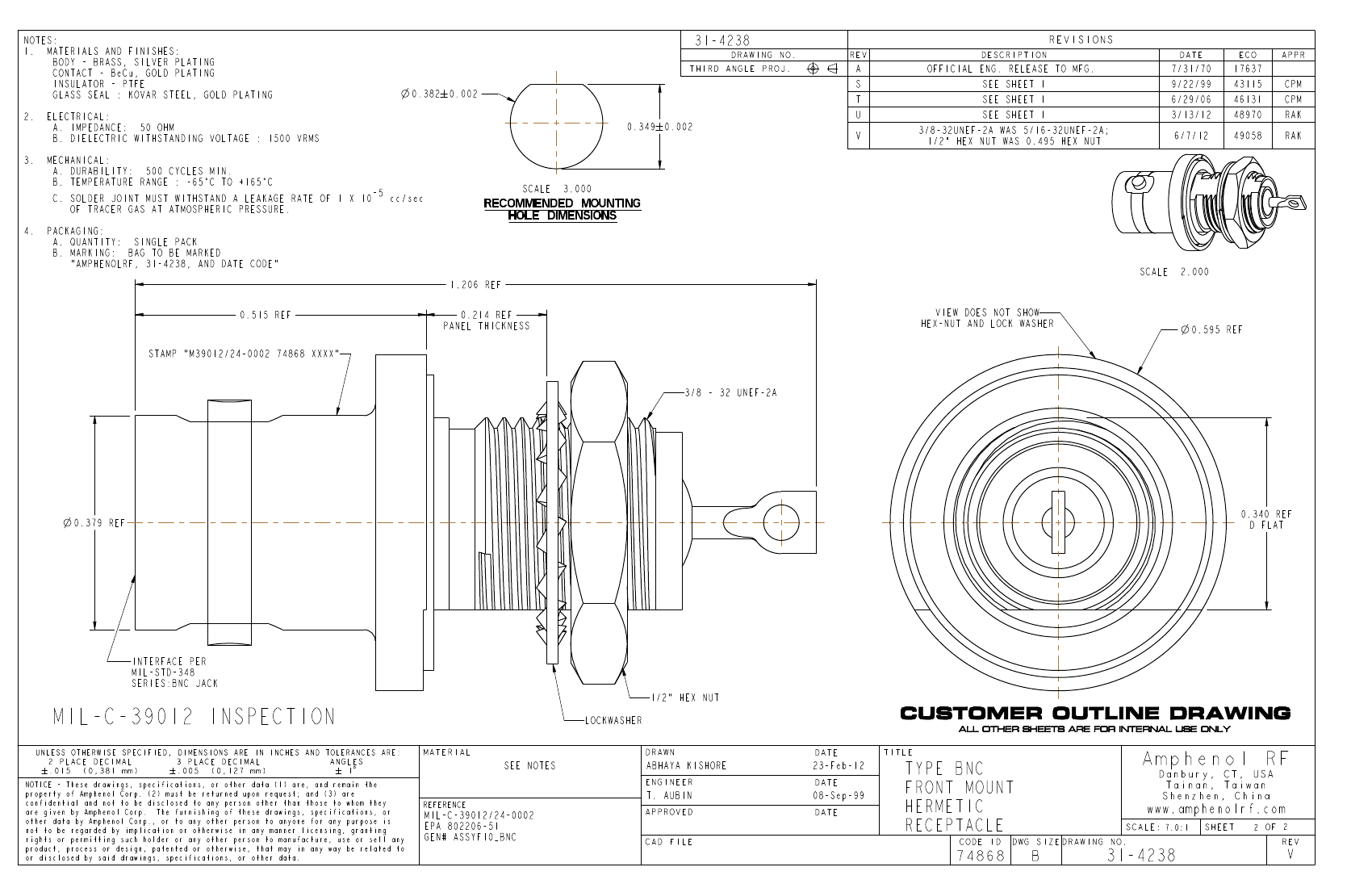

31-4238

REVISIONS

REV

DRAWING NO.

THIRD ANGLE PROJ.

0.382 #

0.002

0.349 #

0.002

S

U

V

T

A

OFFICIAL ENG. RELEASE TO MFG.

SEE SHEET 1

DESCRIPTION

3/8-32UNEF-2A WAS 5/16-32UNEF-2A;

1/2" HEX NUT WAS 0.495 HEX NUT

SEE SHEET 1

6/29/06

3/13/12

6/7/12

9/22/99

7/31/70

DATE

17637

46131

48970

49058

43115

ECO

APPR

CPM

RAK

CPM

3.

-5

cc/sec

RECOMMENDED MOUNTING

HOLE DIMENSIONS

SCALE

3.000

1.206 REF

0.515 REF

STAMP "M39012/24-0002 74868 XXXX"

3/8 - 32 UNEF-2A

0.214 REF

PANEL THICKNESS

VIEW DOES NOT SHOW

HEX-NUT AND LOCK WASHER

SCALE

2.000

0.595 REF

0.379 REF

0.340 REF

D FLAT

INTERFACE PER

MIL-STD-348

SERIES:BNC JACK

MIL-C-39012 INSPECTION

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015

(0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

e

hom they

tions, or

urpose is

granting

or sell any

e related to

1/2" HEX NUT

LOCKWASHER

MATERIAL

DRAWN

DATE

TITLE

SEE NOTES

ABHAYA KISHORE

23-Feb-12

08-Sep-99

ENGINEER

REFERENCE

T. AUBIN

MIL-C-39012/24-0002

EPA 802206-51

GEN# ASSYF10_BNC

APPROVED

CAD FILE

TYPE BNC

FRONT MOUNT

HERMETIC

RECEPTACLE

74868

CODE ID

Amphenol RF

www.amphenolrf.com

SCALE: 7.0:1

DWG SIZE DRAWING NO.

SHEET

Danbury, CT, USA

Tainan, Taiwan

Shenzhen, China

2 OF 2

REV

B

31-4238

V
