31-5679 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 31-5679

31-5679: DescriptionRF TNC Connector, Female, Cable Mount, Crimp Solder Terminal, Plug; CategoryThe connector The connector; File Size2MB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

31-5679 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-5679	-	-	View	Buy Now

31-5679 Overview

RF TNC Connector, Female, Cable Mount, Crimp Solder Terminal, Plug

31-5679 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	APPLICABLE CABLE: RG-B9913/U, INSERTION LOSS MAX AT 9 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE/BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.18 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	31-5679
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

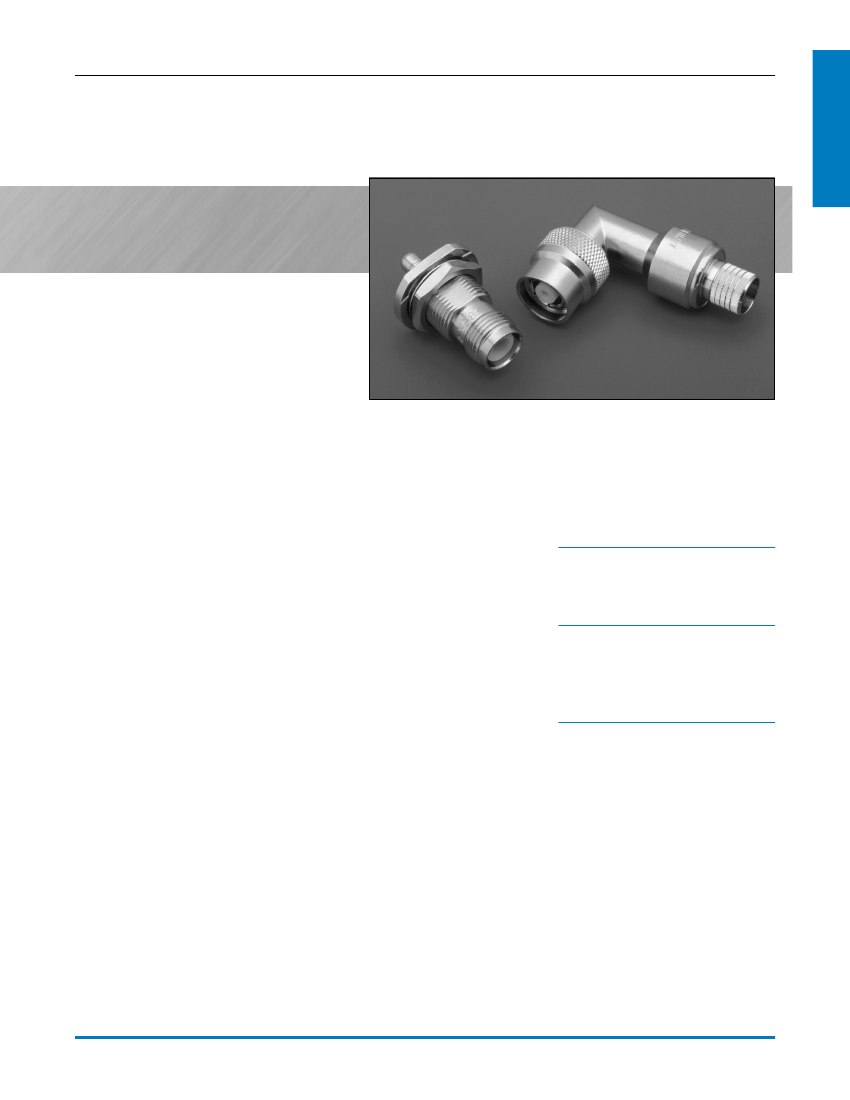

Reverse Polarity

Amphenol

Reverse Polarity

Description

Reverse Polarity is a keying system accomplished

with a reversed interface. This ensures, for

example, a Reverse Polarity SMA does not mate

with a Standard SMA.

Amphenol’s RP Plugs have a female contact;

Jacks have a male contact. Some competitors

prefer to use reverse threading to accomplish their

RP keying.

Available for RG-316, RD-316, RG-142,

RG-178, Belden 9913, and RG-58 cable.

Features/Benefits

• May be used in applications where keying is

necessary to eliminate mis-matching from

mating with a standard connector.

• MIL Standard 348 interface ensures high quality

and premium performance.

• Crimp-crimp termination allows easy and quick

assembly.

• Fits a variety of cables and configurations

allowing the customer to choose the right

connector for the application.

RP-SMA Connectors

Specifications

Connectors

150

151-152

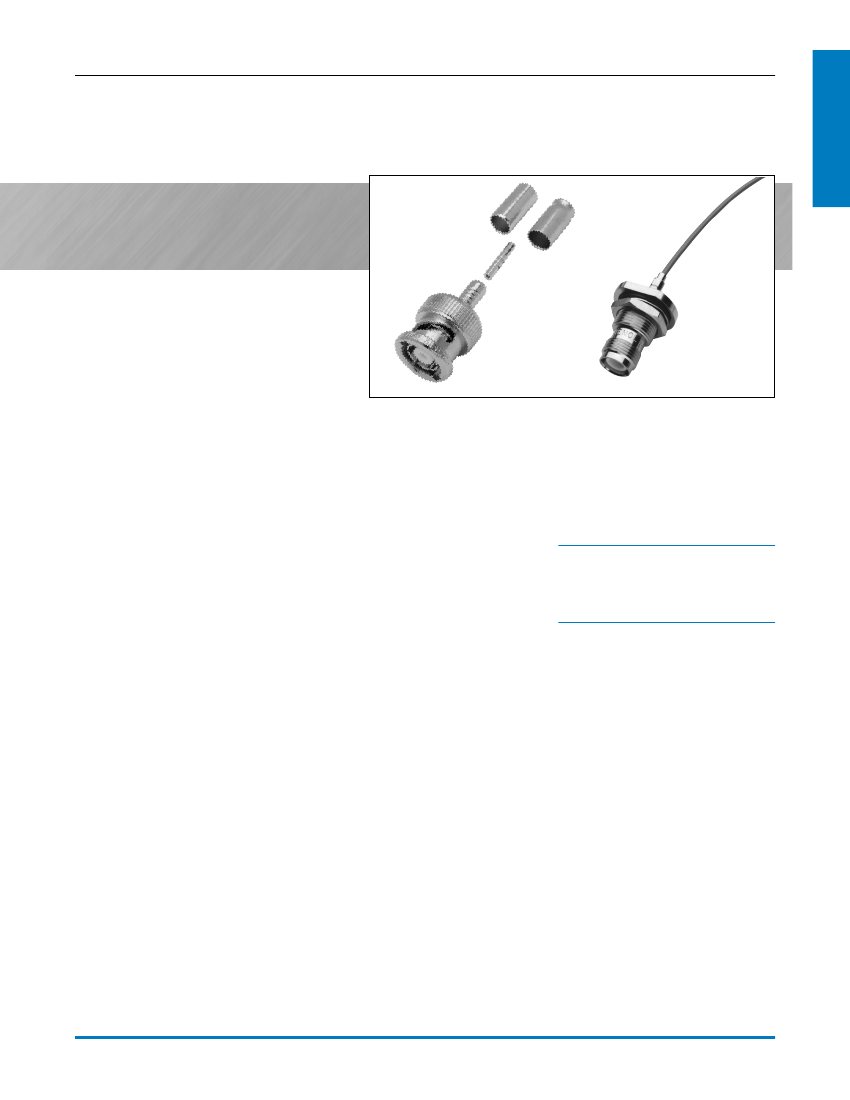

RP-BNC & RP-TNC

Specifications

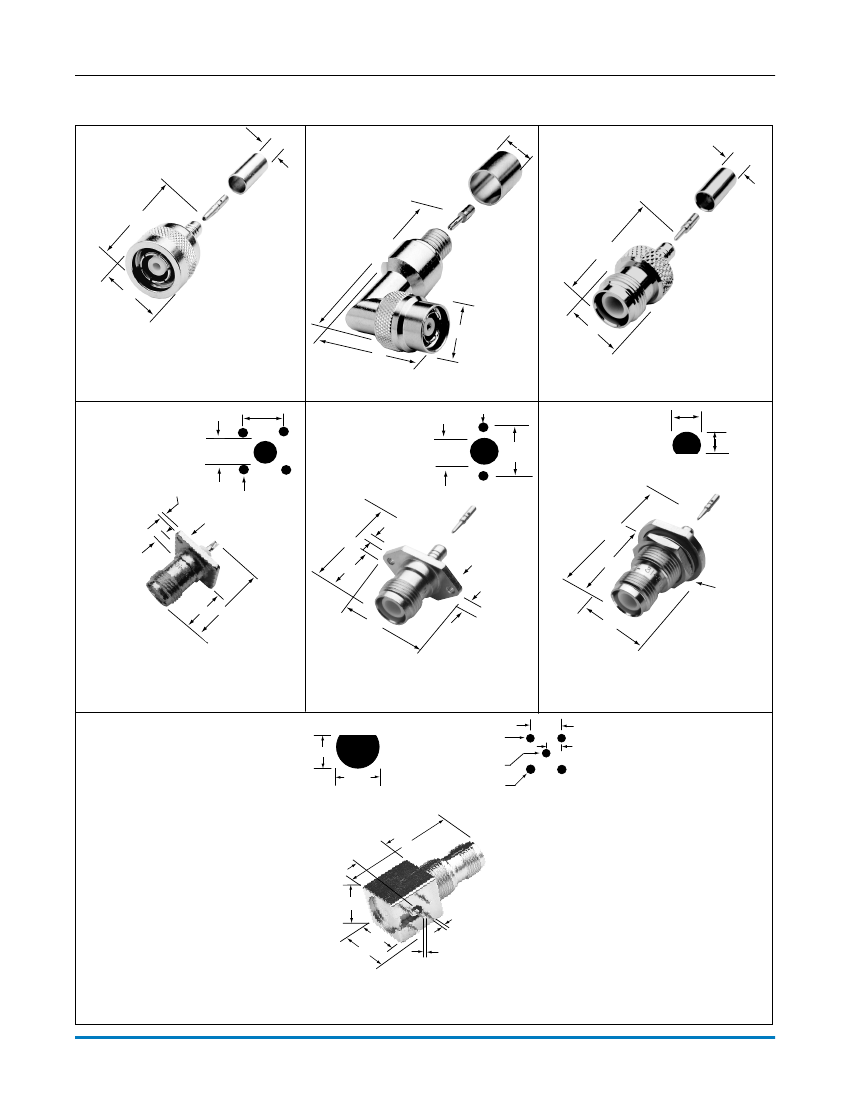

TNC Connectors

BNC Connectors

154

155-156

157

Applications

• Antennas

• Cable Assembly

• GPS

• Spread Spectrum Wireless

• WLAN

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

149

31-5679 Related Products

	31-5679	31-5684	31-5688	31-5680	31-5694	31-5678
Description	RF TNC Connector, Female, Cable Mount, Crimp Solder Terminal, Plug	RF TNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Jack	RF TNC Connector, Male, Board Mount, Solder Terminal, Receptacle	RF TNC Connector, Female, Cable Mount, Crimp Solder Terminal, Plug	RF TNC Connector, Male, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF TNC Connector, Male, Cable Mount, Crimp Terminal, Jack
Reach Compliance Code	compliant	compliant	unknown	unknown	unknown	unknow
Other features	APPLICABLE CABLE: RG-B9913/U, INSERTION LOSS MAX AT 9 GHZ	APPLICABLE CABLE: RG-B9913/U, INSERTION LOSS MAX AT 9 GHZ	INSERTION LOSS MAX AT 9 GHZ	APPLICABLE CABLE: RG-B9913/U, INSERTION LOSS MAX AT 9 GHZ	INSERTION LOSS MAX AT 9 GHZ	APPLICABLE CABLE: RG-58/U, INSERTION LOSS MAX AT 9 GHZ
Body/casing type	PLUG	JACK	RECEPTACLE	PLUG	RECEPTACLE	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR
Contact point gender	FEMALE	MALE	MALE	FEMALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.18 dB	0.18 dB	0.18 dB	0.18 dB	0.18 dB	0.18 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	BOARD	CABLE	BOARD	CABLE
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	YES	NO
Termination type	CRIMP SOLDER	CRIMP SOLDER	SOLDER	CRIMP SOLDER	SOLDER	CRIMP
voltage standing wave ratio	1.3	1.3	1.35	1.35	1.3	1.3
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol
Contact to complete cooperation	GOLD	NICKEL	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	PHOSPHOR BRONZE/BERYLLIUM COPPER	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	-	1	1	1	-
