31147103 Overview

Barrier Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s),

31147103 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMETZ CONNECT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: UL 94V-0
Fastening methodSCREW
Installation typeBOARD
Number of layers1
Rows1
Number of channels3
Rated current15 A
Rated voltage300 V
safety certificateCSA; SEV; UL
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Wire gauge14 AWG
Base Number Matches1
75
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 63
#(1) Wire range extended
to No. 30 AWG for
factory-wiring
++
Two same size wires
No. 22 - 18 AWG Cu
Sol/Str for field-wiring;
30 - 18 AWG Cu
Sol/Str factory-wiring
Type 063

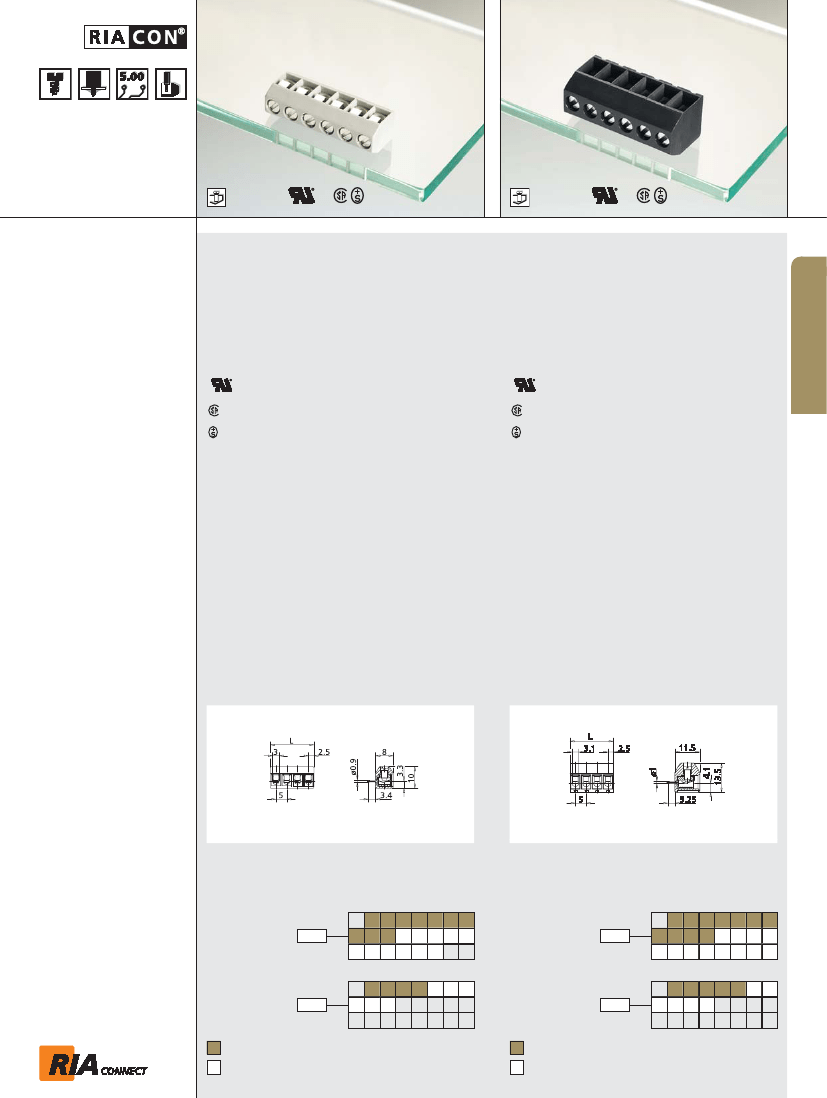

Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, vertical wire entry, wire protector
Type 147
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, vertical wire entry, wire protector
A
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 22 - 14
300 / 15 / 22 - 14
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 22 - 14
300 / 15 / 22 - 14
Type 147
#(1) Wire range extended
to No. 30 AWG for
factory-wiring
+
Two same size wires
No. 22 - 16 AWG Cu
Sol/Str for field-wiring;
30 - 16 AWG Cu
Sol/Str factory-wiring
0.33 - 1.5 mm² 125 V / 2.5 kV / 13 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.6 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
0.9 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.4 mm
Pole size
2 - 22
Color
grey
Dimensions in mm
1 mm = 0.0394 in.
0.33 - 1.5 mm² 250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.25 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 063
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 147
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
310631
Type 063
centerline 10 mm / 0.394 inches
P/N
311471
Type 147
02 03 04 05 06 07 08
09 10 11
centerline 10 mm / 0.394 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
310632
P/N
311472
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
