L17DM53745-8 Overview

Connector Accessory,

L17DM53745-8 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
Reach Compliance Codeunknown
Factory Lead Time5 weeks
Connector bracket typeCONNECTOR ACCESSORY
Base Number Matches1
TW

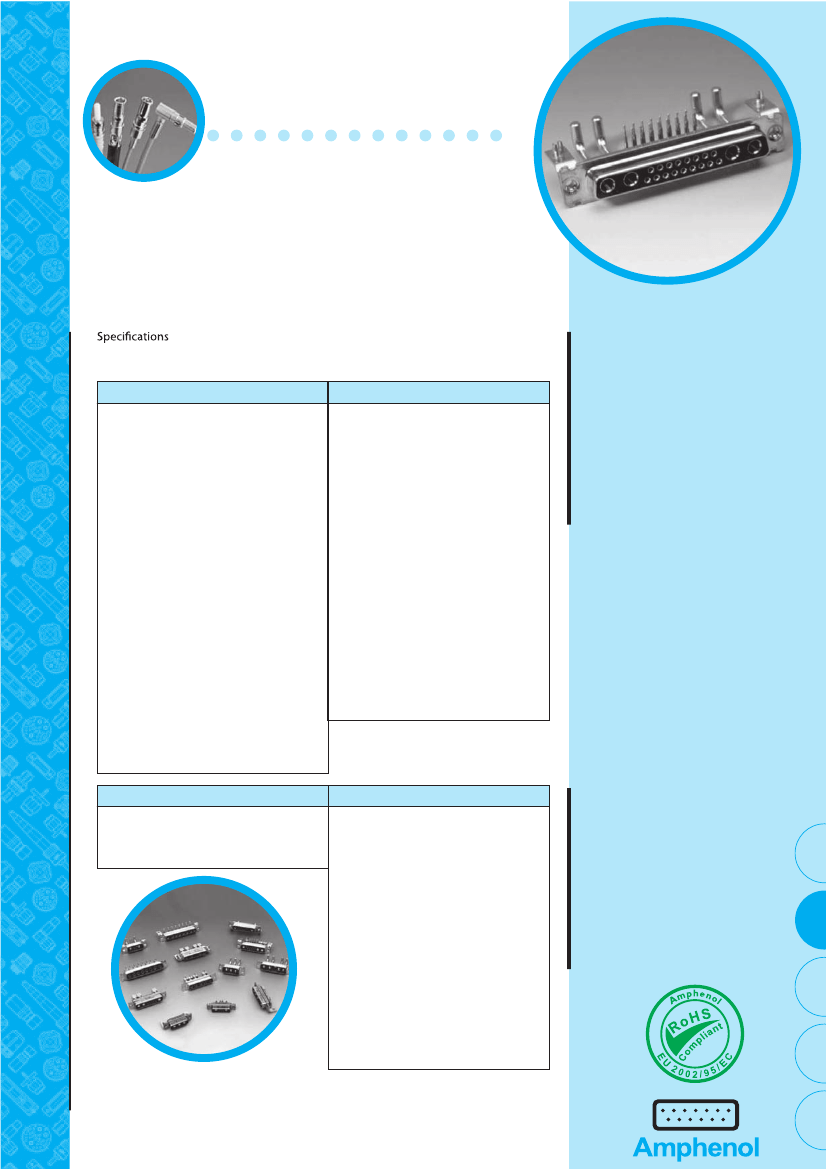

Hybrid D’Sub series
Amphenol D’Sub TW Hybrid Series permits
a mix of contacts including signal, power,
shielded, high voltage and fiber optics in the
same housing with different contacts
arrangements.
This economic series was first developed from
our military series, and has improved features:
- new contacts
- new high temperature black thermoplastic insert

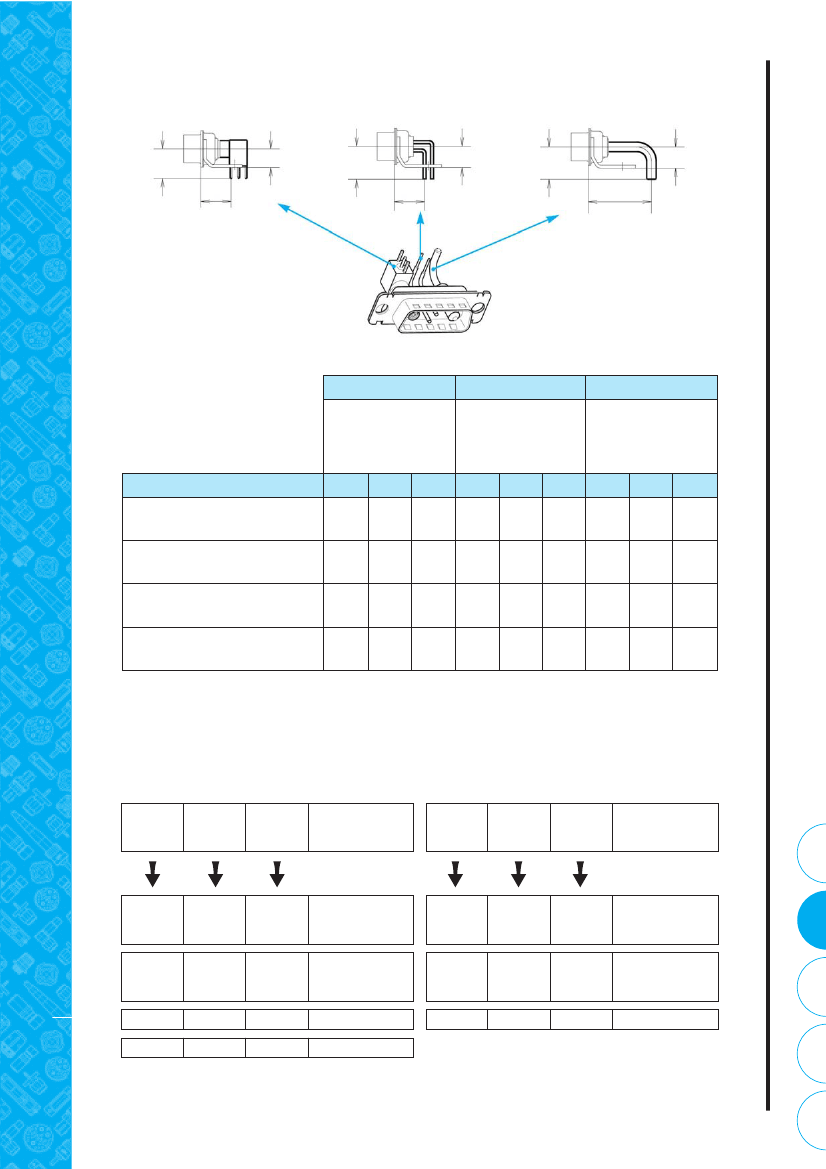

- PCB configurations come preloaded with
fixed contacts and brackets.
These connectors are supplied with screw
machined contacts fixed in the insulator.
A complete range of housings are also
available for cable application.
• Connectors according to: MIL C24308 - NFC93425 - HE507
Materials and plating
Shells
Steel-Tin plating
Insulators
High temperature black thermoplastic
Signal contacts
Female: machined bronze
Material
Male: machined brass
Plating finish
15µ" Au over 79µ" Ni min.
Or
30µ" Au over 79µ" Ni min.
Shielded contacts
Female: machined bronze
Material
Male: machined brass
Plating
Inner conductor
15µ" Au or 30µ" Au over 79µ" Ni
Outer ring
Flash Au over 79µ" Ni
Terminations
Tinned
Except solder cup and crimp terminations
gold flash
Female: machined bronze
Power contacts
Material
Male: machined brass
Plating
Contacts
15µ" Au or 30µ" Au over 79µ" Ni
Terminations
Tinned
Except solder cup and crimp terminations
gold flash
Brackets
Steel-Tin plating
Front jackscrews
Brass-Tin plating
Rear clinch nuts
Brass-Tin plating
Boardlocks
Bronze-Tin plating
Brass-Tin plating
Stand-off
Climatic Data
Operating temperature
Damp heat
Salt spray
Electrical Data
Current rating
Signal contacts
7.5 A. with 10 A. peak
Power contacts

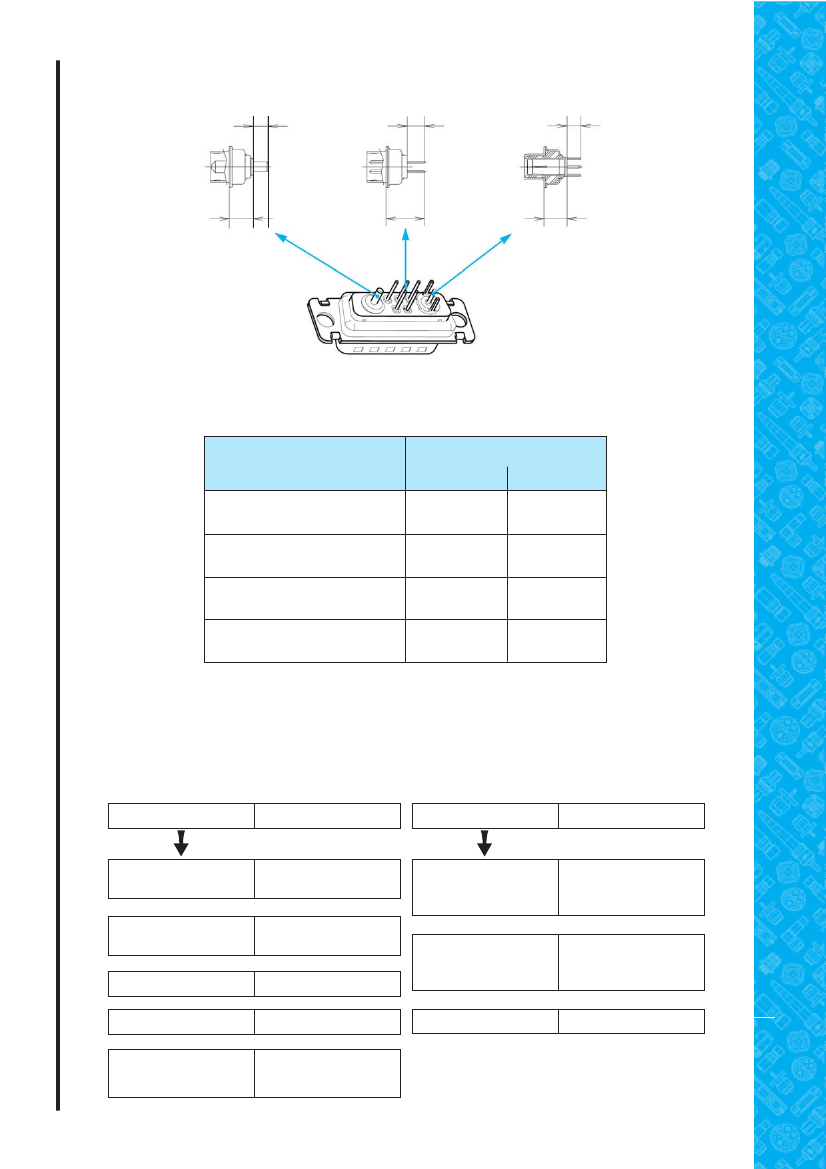

PCB terminations
10 to 40 A.
Solder cup terminations
10 to 40 A.
Crimp terminations
10 to 40 A.
Shielded contacts
0.5 A.
Voltage rating
Signal and power contacts
300 V.R.M.S. at 50 Hz
Shielded contacts
150 V.R.M.S. at 50 Hz
Shielded contacts
Frequency range
0-1 GHz
Attenuation
0.2dB
V. S. W. R.
1.4(+0.04/GHz)
Characteristic impedance
50 Ohms
Dielectric withstanding
voltage
1000 V.R.M.S. at 50Hz
Insulation resistance
5000 M Ohms at 500 VDC
Contact resistance
5m Ohms
Shell resistance
1m Ohm
(electrical grounding)
A full series of
arrangements
compatible with
reflow process
• Commercial
• Medical
• Industrial
• Telecom
• Any application requiring
optimization of space
-55˚C + 155˚C
(with peak 180˚C)
56 days (40˚C - 95% HR)
48 hours

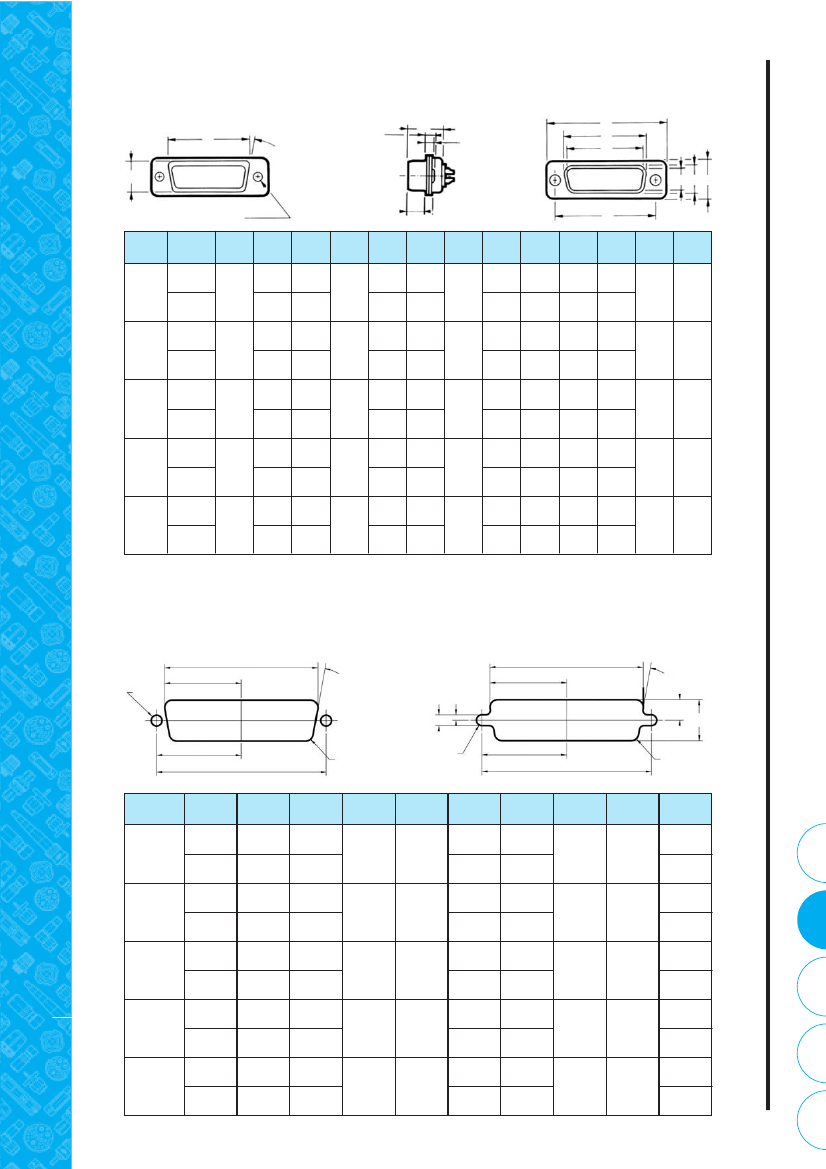

Mechanical data
Shells
With or without dimples
Contact retention force in dielectric material
> 40N
Maximum mating and unmating force
With dimples
E size = 70 N
A size = 80 N
B size = 100 N
C size = 150 N
D size = 180 N
Without dimples
E size = 30 N
A size = 50 N
B size = 80 N
C size = 120 N
D size = 160 N
Compatible with process
IR - Air convectioned
260˚ for 20 s.
Resistance to solder iron heat
260˚C for 30 s.

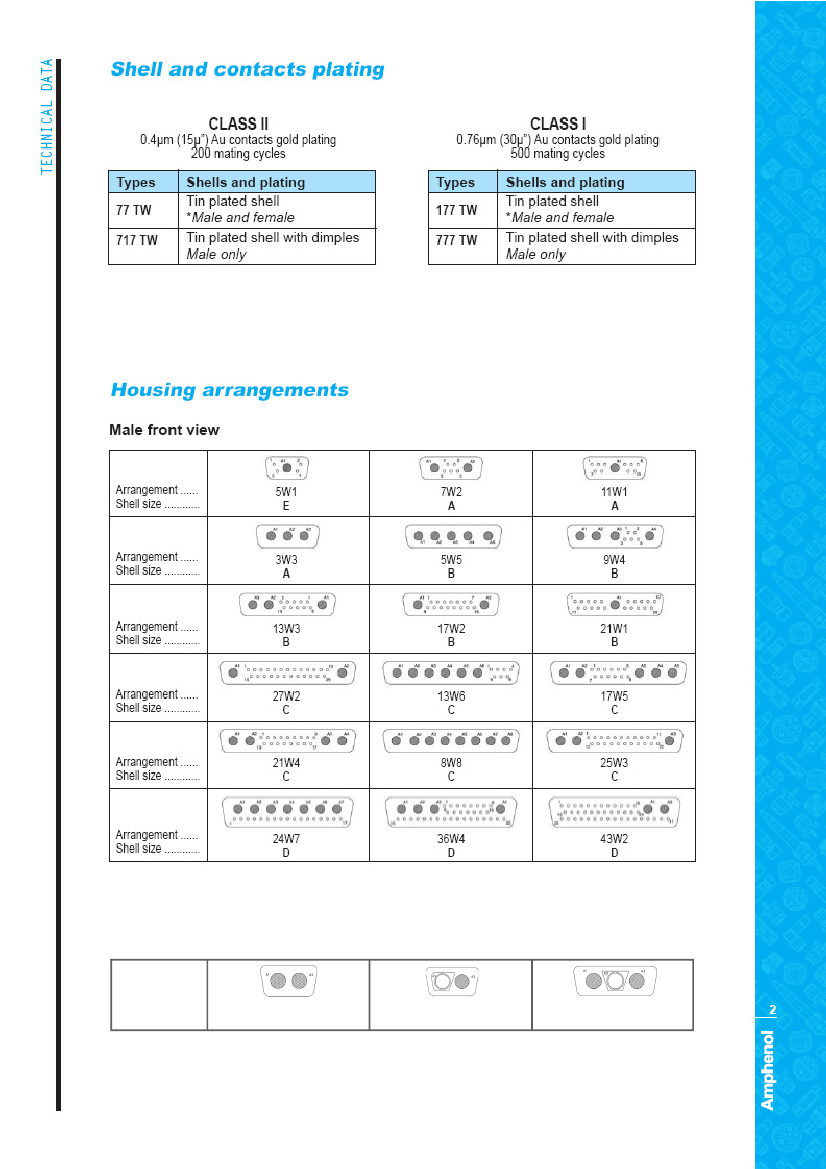

Mating cycles
200 (class ll) or 500 (class l)
TW / E1
