US1A
THRU
US1M
1 Amp Ultra Fast
Rectifier
50 to 1000 Volts
Features
Halogen
free available upon request by adding suffix "-HF"
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates
RoHS Compliant. See ordering information)
•
Glass
Passivated Chip
•
Ultra Fast
Switching For High Efficiency
•
For Surface Mounted Applications
•
Low Forward Voltage Drop And High Current Capability
•
Low Reverse Leakage Current
•
Epoxy meets UL 94 V-0 flammability rating
•
Moisture Sensitivity Level 1
•
•
Maximum Ratings
•
•
•
Operating Temperature: -65
°C
to +175°C
Storage Temperature: -65
°C
to +175°C
Maximum Thermal Resistance; 30
°C/W
Junction To Lead
MCC
Catalog
Number
Device
Marking
Maximum
Recurrent
Peak Reverse
Voltage
50V
100V
150V
200V
400V
600V
800V
1
000V
Maximum
RMS
Voltage
Maximum
DC
Blocking
Voltage
50V
100V
150V
200V
400V
600V
800V
1000V
DO-214AC
(SMA) (LEAD
FRAME)
H
J
US1A
US1B
US1C
US1D
US1G
US1J
US1K
US1M
US1A
US1B
US1C
US1D
US1G
US1J
US1K
US1M
35V
70V
105V
140V
280V
420V
560V
700V
A
C
E
F
G
Dimensions
INCHES
MIN
.079
.050
.002
---
.030
.065
.189
.157
.090
D
B
Electrical Characteristics @ 25 Unless Otherwise Specified
°C
Average Forward
Current
Peak Forward Surge
Current
Maximum
Instantaneous
Forward Voltage
US1A-1D
US1G
US1J-1M
I
F(AV)
1.0A
T
L
=
110°C
I
FSM
30A
8.3ms, half sine
DIM
A
B
C
D
E
F
G
H
J
MAX
.096
.064
.008
.02
.060
.091
.220
.181
.115
MM
MIN
2.00
1.27
.05
---
.76
1.65
4.80
4.00
2.25
MAX
2.44
1.63
.20
.51
1.52
2.32
5.59
4.60
2.92
NOTE
V
F
1.0V
1.4V
1.7V
I
FM
= 1.0A;
T
J
= 25°C
SUGGESTED SOLDER
PAD LAYOUT
0.090”
MAX
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
Maximum Reverse
Recovery Time
US1A-US1G
US1J~US1M
I
R
10uA
100uA
T
A
= 25°C
T
A
= 100°C
0.085”
MIN
T
rr
50ns
75ns
I
F
=0.5A, I
R
=1.0A,
I
rr
=0.25A
0.070”
MIN
Typical Junction
Capacitance
US1A-1G
US1J-1M
C
J
20pF
10pF
Measured at
1.0MHz, V
R
=4.0V
*Pulse test: Pulse width 300 sec, Duty cycle 1%
Notes: 1.
High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7.
Revision:
H
www.mccsemi.com
1 of 4
2014/05/04
US1A thru US1M

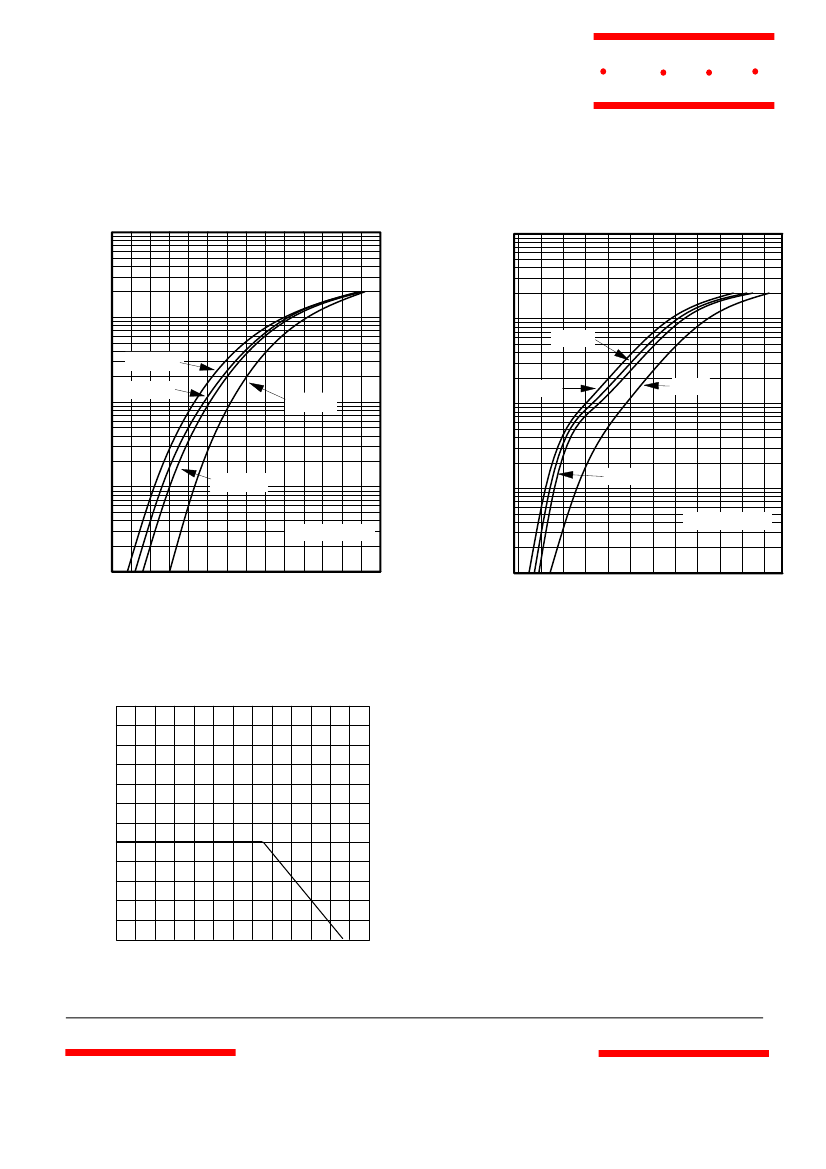

Figure 1
Typical Forward Characteristics
100
100
MCC
Figure 2
Typical Forward Characteristics
TM
Micro Commercial Components
10
10
125° C
T
J
=150° C
T
J
=125° C
150° C
Amps
T
J
=25° C
1
25° C
Amps
1
0.1
T
J
=100° C
100° C
0.1
US1J thru US1M
US1A thru US1G
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Volts
Instantaneous Forward Current - Amperesversus
Instantaneous Forward Voltage - Volts
0.01
0.5
1.0
1.5
2.0
2.5
3.0
Volts
Instantaneous Forward Current - Amperesversus
Instantaneous Forward Voltage - Volts
Figure
3
Forward Derating Curve
2.4
2.2
2.0
1.8
1.6
1.4
1.2
Amps
1.0
.8
.6
.4
Single Phase, Half Wave
.2 60Hz Resistive or Inductive Load
0
0
30
60
90
°C
Average Forward Rectified Current - Amperes
versus
Lead Temperature -°C
120
150
180
Revision:
H
www.mccsemi.com
2 of 4
2014/05/04
US1A thru US1M
Figure
4
Junction Capacitance
MCC
Micro Commercial Components
US1A-1G
TM
100
60
40
20
pF
10
6
4
2
1
.1
.2
.4
1
Volts
2
4
10
20
40
100
200
400
1000
US1J-1M
T
J
=25°C
Junction Capacitance - pFversus
Reverse Voltage - Volts
Figure
5
Peak Forward Surge Current
30
25
20
15
Amps
10
5
20
0
1
2
4
6
8 10
Cycles
Peak Forward Surge Current - Amperes
versus
Number Of Cycles At 60Hz - Cycles
20
40
60 80 100
10
.01
.02
Amps
Figure
6
Peak Forward Surge Current
1000
600
400
200
100
60
40
.06 .1
.2
mS
.6
1
2
6
10
Peak Forward Surge Current - Amperes
versus
Pulse Duration - Milliseconds (mS)
Figure
7
Reverse Recovery Time Characteristic And Test Circuit Diagram
50Ω
10Ω
t
rr
+0.5A
0
25Vdc
Pulse
Generator
Note 2
1Ω
Oscilloscope
Note 1
-0.25
-1.0
Notes:
1. Rise Time = 7ns max.
Input impedance = 1 megohm, 22pF
2. Rise Time = 10ns max.
Source impedance = 50 ohms
3. Resistors are non-inductive
1cm
Set Time Base for 20/100ns/cm
Revision:
H
www.mccsemi.com
3 of 4
2014/05/04
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel: 5Kpcs/Reel
